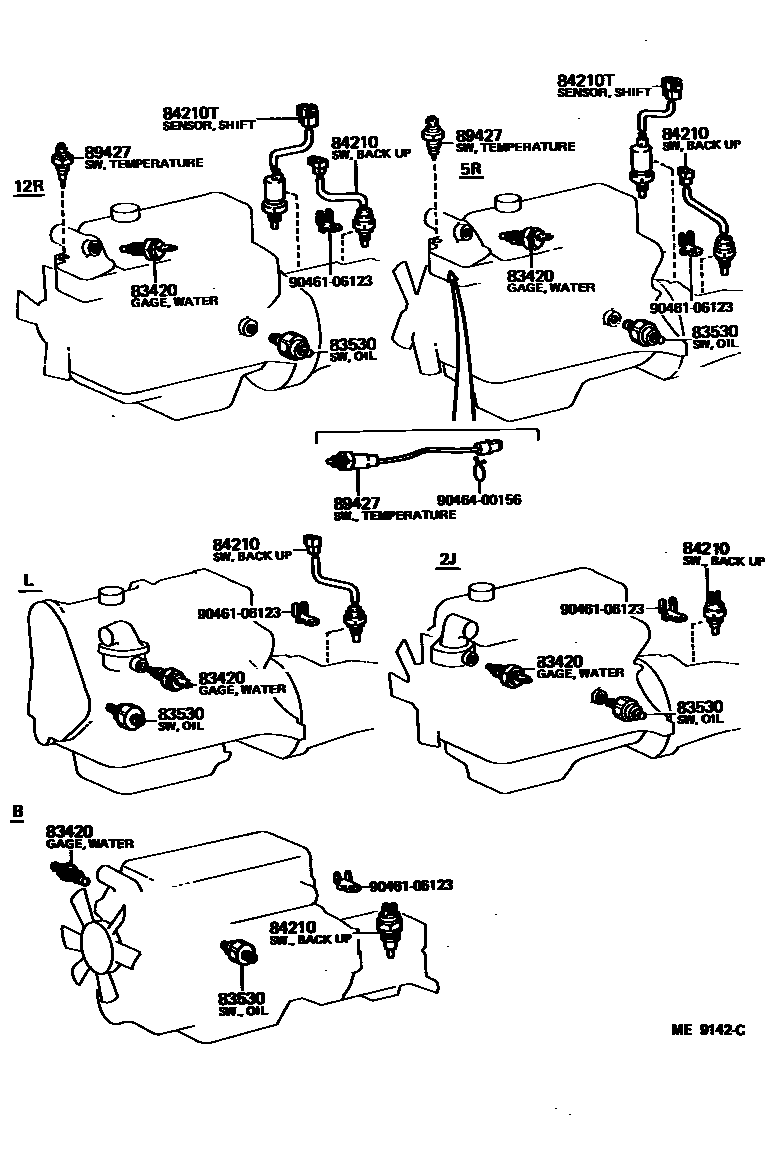

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iBY3#,JY30,LY2#,3#,RY2#,3#197912-198507

DENSO

main83420-20011iJY30,LY20,30,RY20,31197903-197912

BLUE,YAZAKI

main83420-20020iBY3#,JY30,LY2#,3#,RY2#,3#197912-198507

PINK,YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iBY30,JY30197903-198503

main83530-14030iBY31,RY21,32198503-198507

main83530-30030iRY31197903-198004

main83530-30060iLY2#,31198503-198507

main83530-36011iLY2#,3#197903-198503

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iBY30,JY30197903-198201

main84210-25020iLY2#,3#,RY2#,3#197903-198507

main84210-36010iBY3#,JY30198201-198507

main84210-60021iBY31..DMP198408-198507

84210TSENSOR ASSY, SHIFT POINT

main84220-25020iRY2#197903-198507

main84220-35040iRY31197903-198201

89427SWITCH, TEMPERATURE DETECT

main89428-12030iRY2#197903-198507

MARK=60B

main89428-14010iRY31197903-198201

MARK=70-100

main89428-25010iRY31197903-198201

MARK=60B

main89428-28010iRY2#197903-198507

MARK=60-100,W/COOLER

9046106123

main90461-06123

9046400156

main90464-00156

7 parts on this diagram · 7 diagrams in section
