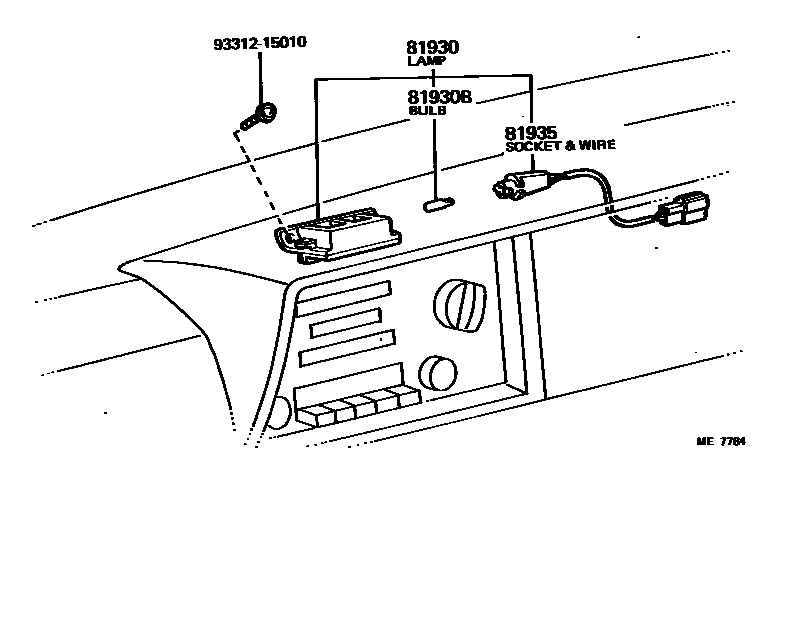

INDICATOR

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-95010iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main81930-95011iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iJY30,LY2#,3#,RY2#,3#197903-198507

main90981-11022iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-95010iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main81935-95011iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

9331215010

main93312-15010

4 parts on this diagram · 1 diagram in section
