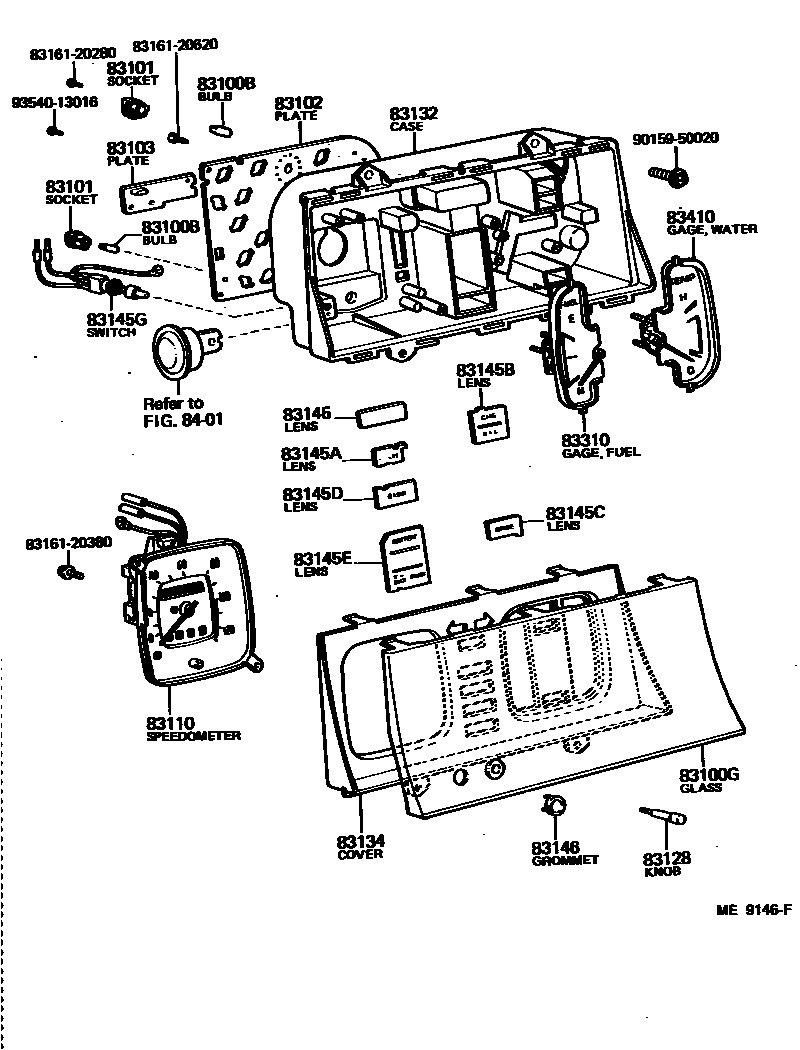

METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iLY20,30197903-198201

main90981-11022×2iBY3#,LY2#,3#198201-198507

main99132-12034×14iJY30,LY20,30,RY20,31197903-198201

main99134-12030×14iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

83100GGLASS, COMBINATION METER

main83138-95010iBY3#,JY30,RY2#,3#197903-198507

W/TRIP METER

main83138-95020iLY2#,3#197903-198507

W/TRIP METER

main83138-95030iJY30,RY20,31..ST197903-198201

main83138-95040iLY20,30..ST197903-198201

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×11iJY30,LY2#,3#,RY21,32198201-198507

12V 3.4W

main83101-22010iLY20,30197903-198201

12V 1.4W

main83101-89101×11iBY3#,JY30,LY2#,3#198201-198507

24V 3W

main83101-95020×2iBY3#,LY2#,3#198201-198507

24V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-95059iJY30,RY21,32198201-198507

12V

main83102-95060iLY2#,3#198201-198507

12V

main83102-95061iLY2#,3#198201-198507

24V

main83102-95063iBY30,JY30198201-198308

24V

main83102-95064iBY30198201-198308

W/*EB

main83247-95010iJY30,RY20,31197903-198201

12V

main83247-95011iBY31198308-198507

24V

main83247-95012iBY31198308-198507

W/*EB

main83247-95030iLY20,30197903-198201

12V

main83247-95040iLY20;LY30..ST;LY30..T2,VP,VPS,VT197903-198201

24V

main83247-95050iBY30,JY30197903-198201

24V

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-95020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

83110SPEEDOMETER ASSY

main83110-95010iBY3#,JY30,RY2#,3#197903-198408

W/TRIP METER

main83110-95011iLY2#,3#197903-198408

W/TRIP METER

main83110-95014iJY30,RY20,31..ST197903-198201

main83110-95015iLY20,30..ST197903-198201

main83110-95019iBY3#198201-198408

W/*EB

main83110-95028iBY31,RY21,32198408-198507

W/TRIP METER

main83110-95029iLY2#,31198408-198507

W/TRIP METER

main83110-95030iRY21..T1..125198408-198507

W/O TRIP METER

main83110-95031iBY31198408-198507

W/*EB

83128KNOB, TRIP COUNTER

main83128-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

83132CASE, COMBINATION METER

main83132-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main83132-95A01iBY3#198201-198507

W/*EB

83134COVER, COMBINATION METER, NO.1

main83134-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

83145LENS, METER, NO.1

main83145-95013iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

83145ALENS, METER, NO.2

main83145-95014iBY30,JY30,LY20,30,RY20,31197903-198201

main83145-95A15iBY3#,JY30,LY2#,3#,RY21,32198201-198507

83145BLENS, METER, NO.3

main83145-95015iBY30,JY30,LY20,30,RY20,31197903-198201

main83145-95023iBY3#,JY30,LY2#,3#,RY21,32198201-198507

83145CLENS, METER, NO.4

main83145-95016iBY30,JY30,LY20,30,RY20,31197903-198201

main83145-95024iBY3#,JY30,LY2#,3#,RY21,32198201-198507

83145DLENS, METER, NO.5

main83145-95017iRY2#,3#197903-198507

main83145-95019iBY30,JY30,LY20,30197903-198201

main83145-95A11iBY3#,JY30,LY2#,3#198201-198507

83145ELENS, METER, NO.6

main83145-95010iLY20,30..ST197903-198201

main83145-95011iBY30,JY30,RY20,31197903-198201

W/OK MONITOR

main83145-95012iLY20,30197903-198007

W/OK MONITOR

main83145-95018iJY30197903-198201

W/O TRIP METER

main83145-95020iLY20,30197903-198201

W/TRIP METER

main83145-95021iBY30,JY30197903-198201

main83145-95025iBY30,JY30198201-198308

main83145-95028iBY31198308-198507

W/*EB

main83145-95029iBY30198201-198308

W/*EB

main83145-95030iBY31198308-198507

main83145-95A20iLY2#,3#198201-198507

83145GSWITCH ASSY, COMBINATION METER

main83125-95010iLY2#,3#197903-198507

83146GROMMET, METER GLASS

main83145-89117iLY2#,3#197903-198408

main83145-95J17iLY2#,31198408-198507

83310GAGE ASSY, FUEL RECEIVER

main83243-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main83243-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95010iJY30,LY20,30,RY20,31197903-197912

SENDER GAGE=83420-20011

main83244-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

SENDER GAGE=83420-20020

main83244-95020iBY30,JY30,LY20,30,RY20,31197912-198201

SENDER GAGE=83420-20020

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120620CASE, COMBINATION METER MIRROR, NO.1

main83161-20620

9015950020

main90159-50020

9354013016

main93540-13016

25 parts on this diagram · 2 diagrams in section
