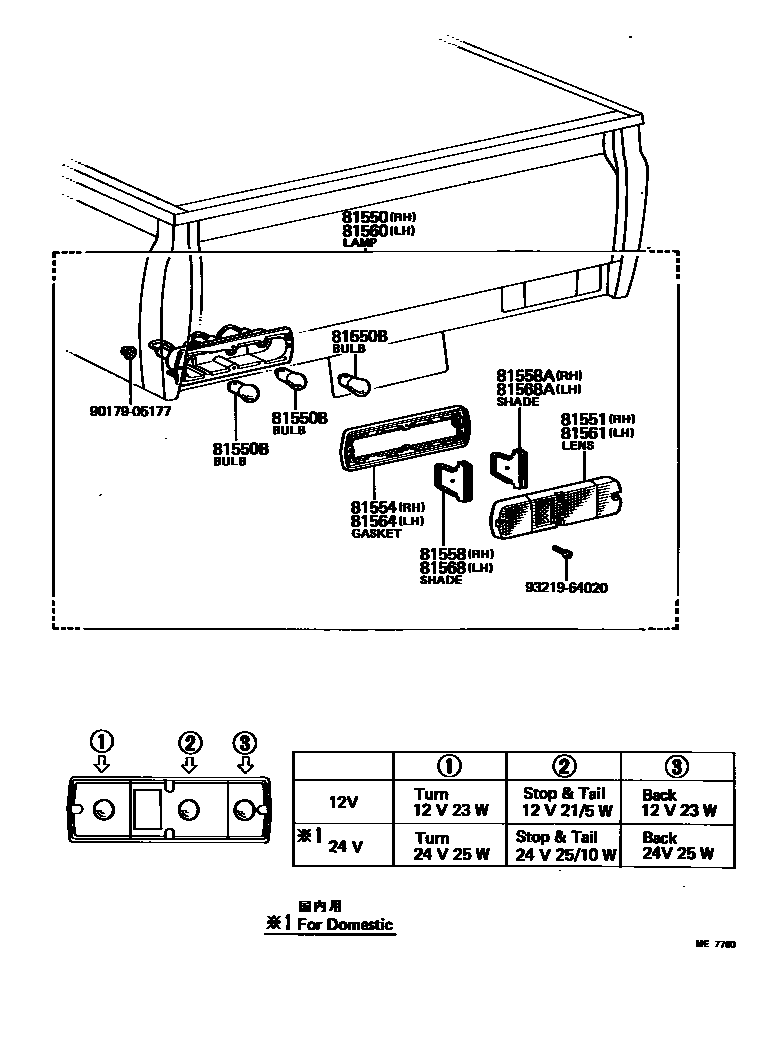

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29925iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main81550-80019iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iJY30,LY2#,3#,RY2#,3#197903-198507

main99132-21210×2iJY30,LY2#,3#,RY2#,3#197903-198507

main99134-11250×4iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

main99134-22250×2iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80019iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main81560-80021iBY3#,JY30,LY2#,3#198201-198507

24V

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

9017905177

main90179-05177

9321964020

main93219-64020

13 parts on this diagram · 1 diagram in section
