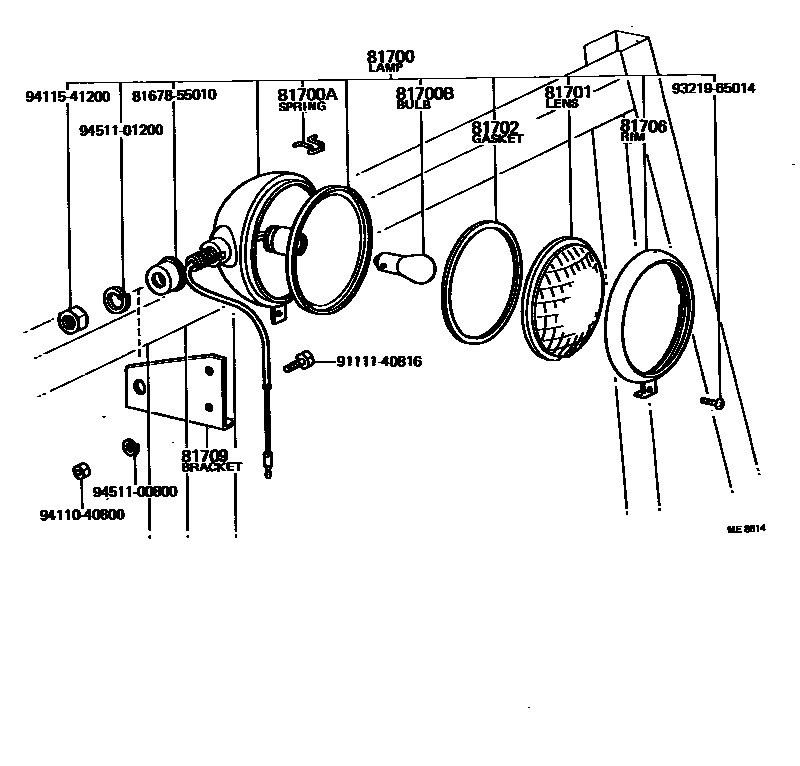

WORK LAMP

81700LAMP ASSY, WORK

main81670-55010iJY30..15T..CBU198004-198308

12V

main81670-55020iBY31,JY30..DMP..CBU198004-198507

24V

81700ASPRING, WORK LAMP

main81517-20010iBY31,JY30..DMP..CBU198004-198507

81700BBULB, WORK LAMP

main99132-11230iJY30..15T..CBU198004-198308

main99134-11250iBY31,JY30..DMP..CBU198004-198507

81701LENS, WORK LAMP

main81671-55010iBY31,JY30..DMP..CBU198004-198507

81702GASKET, WORK LAMP

main81512-20010iBY31,JY30..DMP..CBU198004-198507

81706RIM, WORK LAMP

main81676-55010iBY31,JY30..DMP..CBU198004-198507

81709BRACKET, WORK LAMP

main74761-96250iJY30..15T..CBU198004-198308

8167855010SHADE, BACK UP LAMP

main81678-55010

9111140816

main91111-40816

9321965014

main93219-65014

9411040800

main94110-40800

9411541200

main94115-41200

9451100800

main94511-00800

9451101200

main94511-01200

14 parts on this diagram · 1 diagram in section
