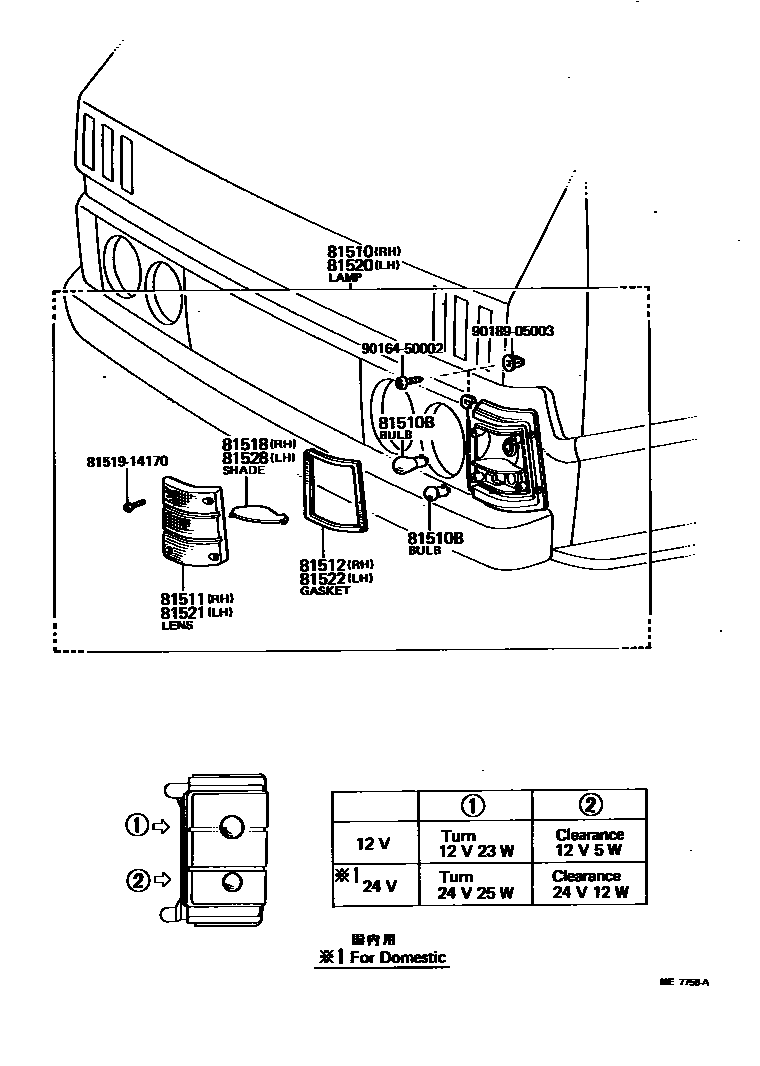

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29525iJY30,LY20,30,RY20,31197903-198201

12V

main81510-29535iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

main81510-29635iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

12V,EVENT

main81510-29645iJY30..WT..IV;JY30..TB..WT;LY30..WT..15T198002-198002

24V,EVENT

main81510-29745iJY30,LY2#,3#,RY21,32198201-198507

12V

main81510-29755iBY3#,JY30,LY2#,3#198201-198507

24V

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iJY30,LY2#,3#,RY2#,3#197903-198507

main99132-11230×2iJY30,LY2#,3#,RY2#,3#197903-198507

main99134-11120×2iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

main99134-11250×2iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main81511-95013iBY3#,JY30,LY2#,3#,RY21,32198201-198507

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main81512-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main81517-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29525iJY30,LY20,30,RY20,31197903-198201

12V

main81520-29535iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

main81520-29635iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

12V,EVENT

main81520-29645iJY30..WT..IV;JY30..TB..WT;LY30..WT..15T198002-198002

24V,EVENT

main81520-29735iJY30,LY2#,3#,RY21,32198201-198507

12V

main81520-29745iBY3#,JY30,LY2#,3#198201-198507

24V

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main81521-95013iBY3#,JY30,LY2#,3#,RY21,32198201-198507

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main81512-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-95010iBY30,JY30,LY20,30,RY20,31197903-198201

main81517-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

9016450002

main90164-50002

9018905003

main90189-05003

12 parts on this diagram · 2 diagrams in section
