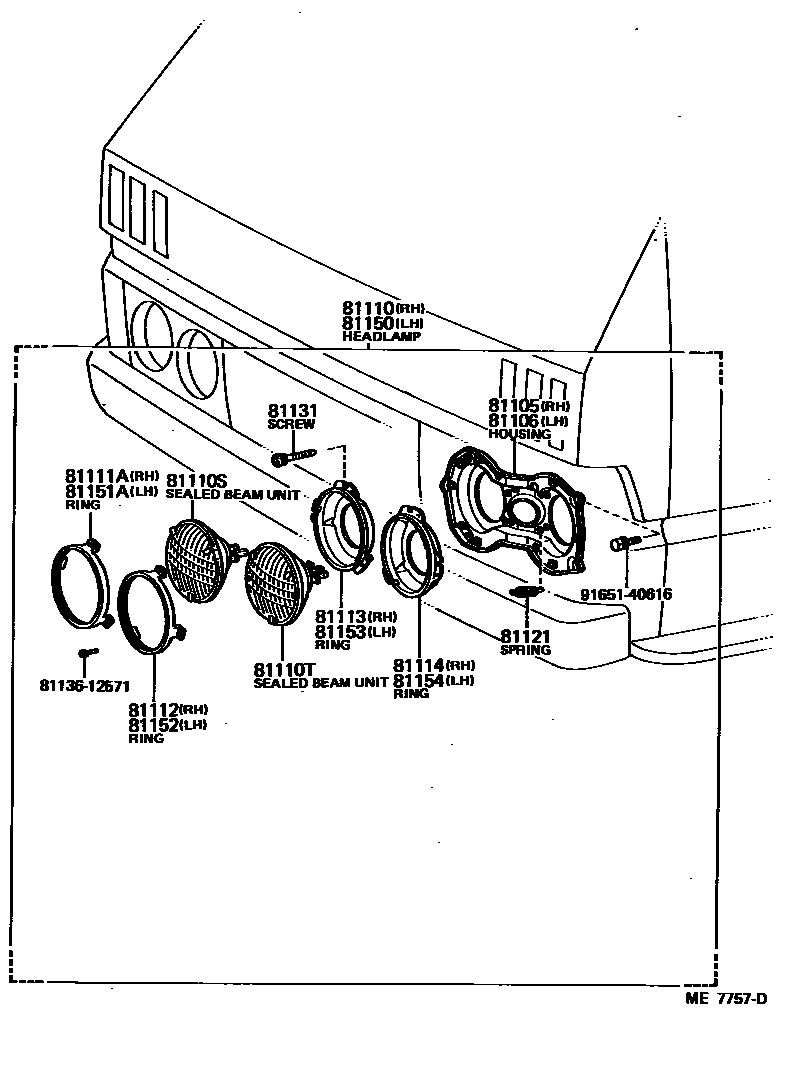

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81110HEADLAMP ASSY, RH

main81110-29885iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main81110-80009iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

81110SSEALED BEAM UNIT, NO.1

main90981-02011×2iJY30,LY2#,3#,RY2#,3#197903-198507

main90981-08007×2iBY3#,JY30,LY2#,3#198201-198507

81110TSEALED BEAM UNIT, NO.2

main90981-02012×2iJY30,LY2#,3#,RY2#,3#197903-198507

main90981-08008×2iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-20280iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-20280iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81153-30150iBY30,JY30,LY20,30,RY2#,3#197903-198210

main81153-95010iBY3#,JY30,LY2#,3#,RY21,32198210-198507

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-30170iBY30,JY30,LY20,30,RY2#,3#197903-198210

main81114-95010iBY3#,JY30,LY2#,3#,RY21,32198210-198507

81121SPRING, HEADLAMP TENSION

main81121-20100×4iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81131SCREW, HEADLAMP ADJUSTING

main81131-20043×8iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81150HEADLAMP ASSY, LH

main81150-29885iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main81150-80009iBY3#,JY30,LY2#,3#198201-198507

24V

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-20280iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-20280iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-30170iBY30,JY30,LY20,30,RY2#,3#197903-198210

main81113-95010iBY3#,JY30,LY2#,3#,RY21,32198210-198507

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-30150iBY30,JY30,LY20,30,RY2#,3#197903-198210

main81154-95010iBY3#,JY30,LY2#,3#,RY21,32198210-198507

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9165140616

main91651-40616

18 parts on this diagram · 1 diagram in section
