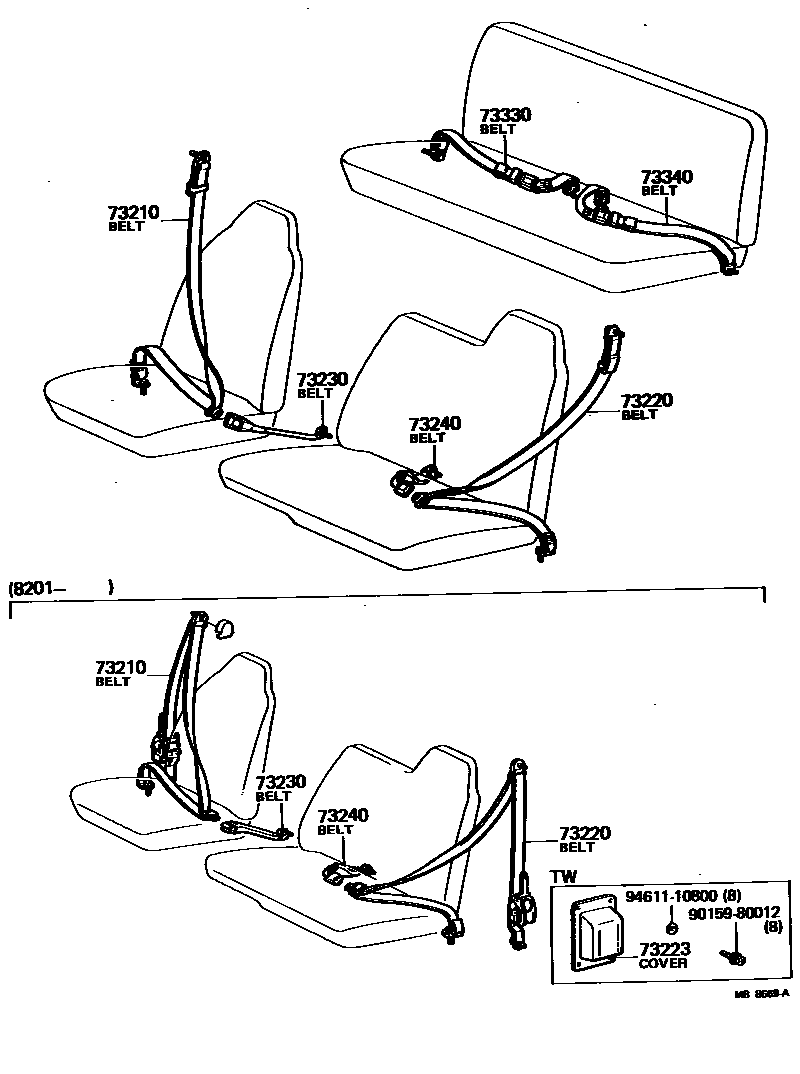

SEAT BELT

73210BELT ASSY, FRONT SEAT OUTER, RH

main71810-95402iBY30,JY30,LY20,30,RY20,31197903-198201

main73210-95011iBY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198201-198308

main73210-95012iLY20,30,RY21,32..TW198201-198308

main73210-95016iBY31,LY2#,31,RY21,32198308-198507

main73210-95017iBY31,LY2#,31,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198308-198507

W/*ELR

main73210-95018iLY20,31,RY21,32..TW198308-198507

W/*ELR

73220BELT ASSY, FRONT SEAT OUTER, LH

main71810-95402iBY30,JY30,LY20,30,RY20,31197903-198201

main73210-95011iBY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198201-198211

main73210-95012iLY20,30,RY21,32..TW198201-198211

main73210-95016iBY31,LY2#,31,RY21,32198308-198507

main73220-95010iBY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198211-198308

main73220-95011iLY20,30,RY21,32..TW198211-198308

main73220-95012iBY31,LY2#,31,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198308-198507

W/*ELR

main73220-95013iLY20,31,RY21,32..TW198308-198507

W/*ELR

73223COVER, SEAT BELT RETRACTOR

main73223-95010×2iLY20,3#,RY21,32..TW198201-198507

73230BELT ASSY, FRONT SEAT INNER, RH

main71830-95402iBY30,JY30,LY20,30,RY20,31197903-198201

main73230-95011iBY30,JY30,LY20,30,RY21,32198201-198308

main73230-95015iBY31,LY2#,31,RY21,32198308-198507

73240BELT ASSY, FRONT SEAT INNER, LH

main71840-95402iBY30,JY30,LY20,30,RY20,31197903-198201

main73240-95011iBY30,JY30,LY20,30,RY21,32198201-198308

main73240-95015iBY31,LY2#,31,RY21,32198308-198507

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main71890-95401iLY20,30,RY20,31..TW197903-198201

main71890-95403iLY20,30,RY21,32..TW198201-198308

main73330-95011iLY20,31,RY21,32..TW198308-198507

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main71890-95401iLY20,30,RY20,31..TW197903-198201

main71890-95403iLY20,30,RY21,32..TW198201-198308

main73330-95011iLY20,31,RY21,32..TW198308-198507

9015980012

main90159-80012

9461110800

main94611-10800

9 parts on this diagram · 1 diagram in section
