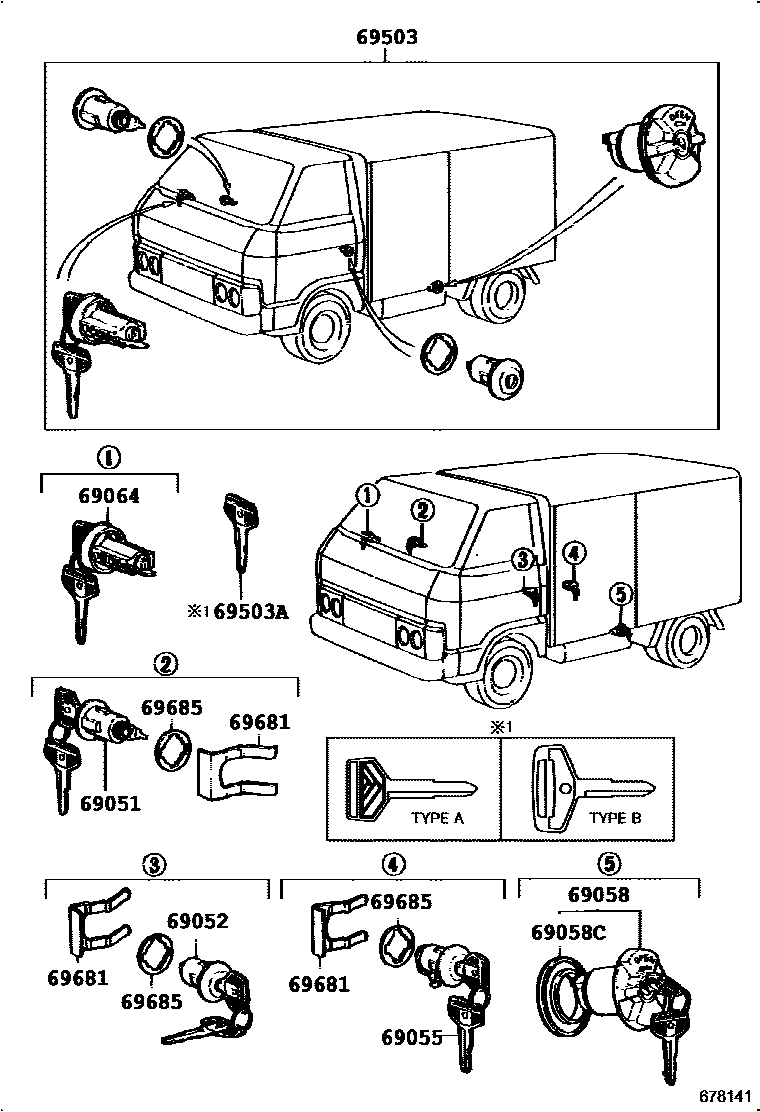

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95012iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95012iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-95A00iLY30,RY31..VPS197903-198111

sub69054-95A02

main69054-95A02iLY3#,RY3#..VPS198111-198507

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89102iBY3#,JY30,LY2#,3#198208-198507

sub69058-25010

main69058-95400iRY2#,3#197903-198507

sub69058-60071

main69058-95401iBY30,JY30,LY20,30197903-198208

sub69058-90B01

69058CGASKET, FUEL FILLER LID CYLINDER

main77316-12031iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95014iBY3#,JY30,LY2#,3#,RY21,32198301-198507

main69057-95400iBY30,JY30,LY20,30197903-198201

sub69057-90B00

main69057-95402iRY20,31197903-198301

sub69057-90B01

69503CYLINDER SET, LOCK

main69005-95010iRY20,31197903-198507

main69005-95011iJY30,LY20,30197903-198201

main69005-95016iRY3#..VPS197906-198507

main69005-95017iLY30..VPS197906-198201

main69005-95018iBY3#,JY30,LY2#,3#..DMP,T1,T2,T3,TW,VP,VPA,VT198201-198507

sub69005-95021

main69005-95019iLY3#..VPS198201-198507

main69005-95020iRY32..(T2,T3)..CBU198310-198507

LPG PACKAGE

69503AKEY, BLANK

main90999-00066iRY20,31197903-198507

sub90999-00085

main90999-00072iBY30,JY30,LY20,30197903-198201

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBY3#,JY30,LY2#,3#,RY2#,3#198012-198507

FR DOOR

main69681-20040iLY3#,RY3#..VPS197903-198507

SLIDE DOOR

main69681-95402iBY30,JY30,LY20,30,RY20,31197903-198012

FR DOOR

69685PAD, LOCK CYLINDER

main69513-12020iBY3#,LY2#,3#,RY21,32198307-198507

FR DOOR

main69513-12020iLY31..VPS198401-198507

SLIDE DOOR

main69685-95400iBY30,JY30,LY20,RY20,31197903-198307

FR DOOR

main69685-95400iLY3#,RY3#..VPS197903-198401

SLIDE DOOR

10 parts on this diagram · 1 diagram in section
