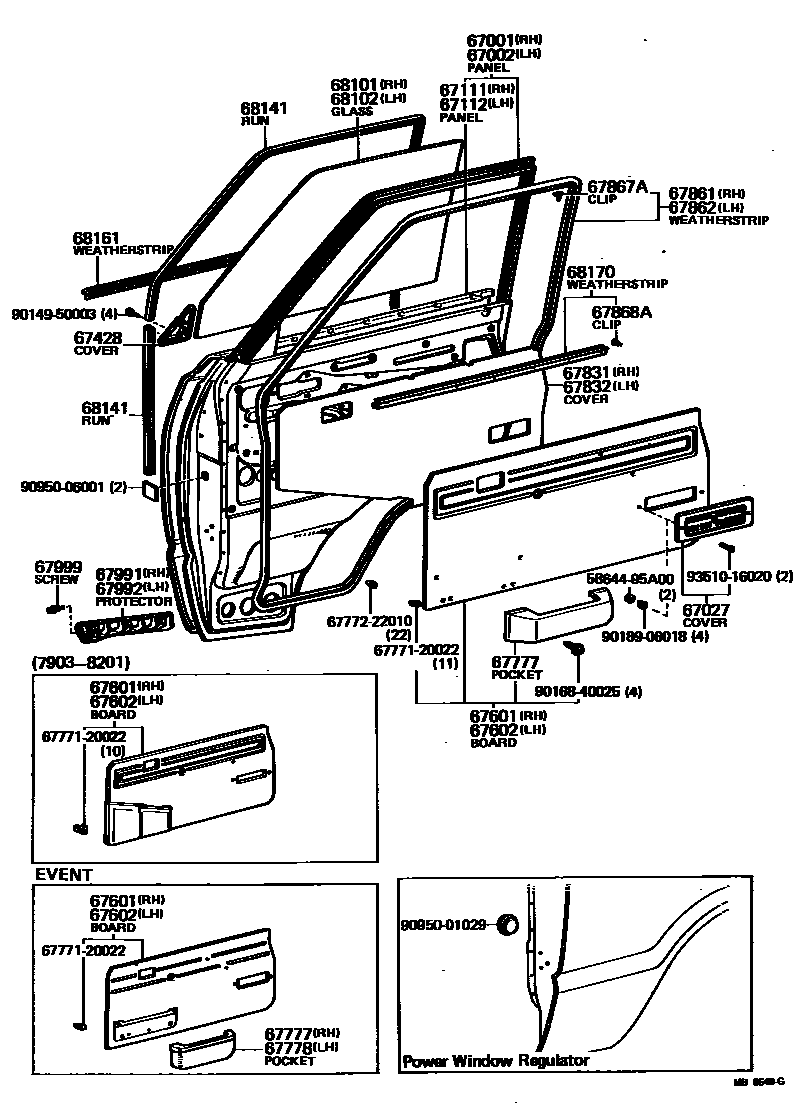

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95010iJY30,LY20,30,RY20,31197903-198201

main67001-95013iLY30..ST;JY30,LY20,RY20,31;LY30..T2,VP,VPS,VT197903-198201

COLD SPEC

main67001-95014iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31198004-198201

W/*OTM(LARGE TYPE)&COLD SPEC

main67001-95016iLY2#,3#,RY21,32198201-198507

main67001-95018iBY3#,JY30,LY2#,3#,RY2#,3#198004-198507

W/*OTM(LARGE TYPE)

main67001-95019iLY2#,3#,RY21,32198201-198507

COLD SPEC

main67001-95020iBY3#,JY30,LY2#,3#,RY21,32198201-198507

W/*OTM(LARGE TYPE)&COLD SPEC

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95012iBY30,JY30,LY20,30,RY20,31197903-198201

W/POWER WINDOW

main67002-95014iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31197903-198201

COLD SPEC

main67002-95015iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31197903-198201

W/POWER WINDOW & COLD SPEC

main67002-95017iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main67002-95019iBY30,JY30,LY30198201-198308

W/POWER WINDOW

main67002-95020iBY3#,JY30,LY2#,3#,RY21,32198201-198507

COLD SPEC

main67002-95021iBY30,JY30,LY30198201-198308

W/POWER WINDOW & COLD SPEC

67027COVER SUB-ASSY, DOOR VENTILATING HOLE

main68300-95400-06×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

BROWN,BROWN

67111PANEL, FRONT DOOR, OUTER RH

main67111-95019iBY30,JY30,LY20,30,RY20,31197903-198201

main67111-95025iBY3#,JY30,LY2#,3#,RY21,32198201-198507

67112PANEL, FRONT DOOR, OUTER LH

main67112-95018iBY30,JY30,LY20,30,RY20,31197903-198201

main67112-95023iBY3#,JY30,LY2#,3#,RY21,32198201-198507

67428COVER, FRONT DOOR WINDOW CORNER

main67427-95011iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

RH

main67428-95011iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

LH

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95013iBY30,JY30,LY20,30,RY20,31197903-198201

W/POCKET

main67610-95014iJY30,LY20,30,RY20,31..ST197903-198201

W/O POCKET

main67610-95015iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

EVENT

main67610-95016iBY3#,JY30,LY2#,3#,RY21,32198201-198507

W/POCKET

main67610-95017iRY21..T1..125198201-198507

W/O POCKET

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95013iBY30,JY30,LY20,30,RY20,31197903-198201

main67620-95015iLY30..ST;BY30,JY30;LY30..T2,VP,VPS,VT197903-198201

W/POWER WINDOW

main67620-95016iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

EVENT

main67620-95017iBY3#,JY30,LY2#,3#,RY21,32198201-198507

main67620-95019iBY30,JY30,LY30198201-198308

W/POWER WINDOW

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-05iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

EVENT,BEIGE

main67778-95010iBY3#,JY30,LY2#,3#,RY21,32198201-198507

67778POCKET, FRONT DOOR TRIM, LH

main67778-22030-05iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

EVENT,BEIGE

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main67831-95011iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

W/TAPE PLAYER

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main67832-95011iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

W/TAPE PLAYER

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95014iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95014iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-95401×60iBY30,JY30,LY20,30,RY20,31197903-198107

main67868-30040×60iBY3#,JY30,LY2#,3#,RY2#,3#198107-198507

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main90467-08071×14iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

67991PROTECTOR, ANTIFREEZE, FRONT DOOR OUTER, RH

main67991-95010iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31197903-198201

67992PROTECTOR, ANTIFREEZE, FRONT DOOR OUTER, LH

main67992-95010iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31197903-198201

67999SCREW, DOOR OUTSIDE PROTECTOR

main67999-95010×6iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31197903-198201

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95014iBY30,JY30,LY20,30,RY2#,3#197903-198308

*TT,T=4.0

main68111-95015iJY30,LY20,30,RY20,31..ST197903-198201

*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95012iBY30,JY30,LY20,30,RY2#,3#197903-198308

*TT,T=4.0

main68112-95014iJY30,LY20,30,RY20,31..ST197903-198201

*TEM,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-95012×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

L=1940

main68143-95010×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

L=467

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95011×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95010×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

5864495A00

main58644-95A00

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9014950003

main90149-50003

9016840025

main90168-40025

9018906018

main90189-06018

9095001029

main90950-01029

9095006001

main90950-06001

9351016020

main93510-16020

33 parts on this diagram · 1 diagram in section
