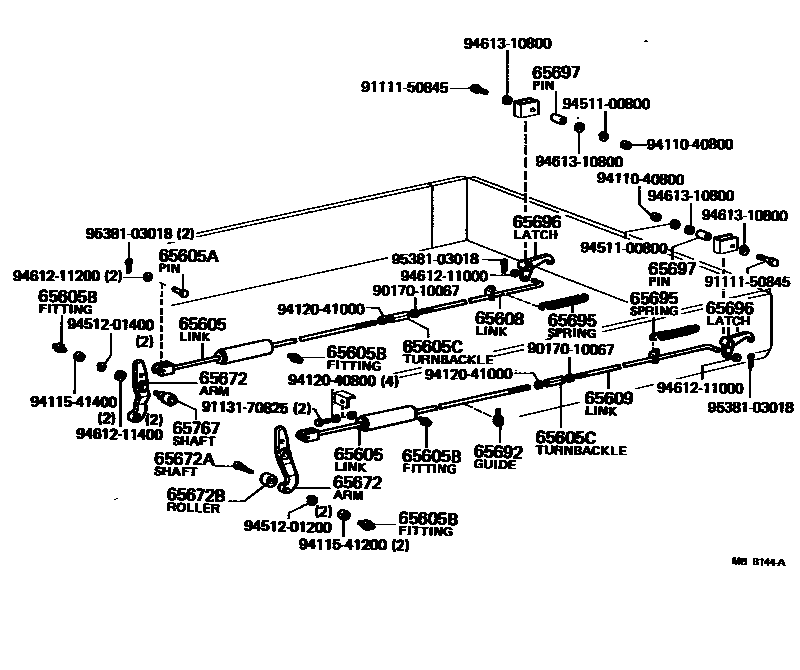

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK

65605LINK SUB-ASSY, TAIL GATE LOCK

main65605-96309iBY31,JY30..DMP198004-198507

65605APIN, TAIL GATE LOCK LINK

main90240-12045iBY31,JY30..DMP198004-198507

65605BFITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)

main96451-00600iBY31,JY30..DMP198004-198507

65605CTURNBACKLE, TAIL GATE LOCK LINK

main90587-10002iBY31,JY30..DMP198004-198507

65608LINK SUB-ASSY, TAIL GATE LOCK, REAR RH

main65608-96303iBY31,JY30..DMP198004-198507

65609LINK SUB-ASSY, TAIL GATE LOCK, REAR LH

main65609-96303iBY31,JY30..DMP198004-198507

65672ARM, TAIL GATE LOCK ROLLER

main65671-96303iBY31,JY30..DMP198004-198507

RH

main65674-96303iBY31,JY30..DMP198004-198507

LH

65672ASHAFT, ROLLER

main65673-96305iBY31,JY30..DMP198004-198507

65672BROLLER, TAIL GATE LOCK

main65603-96304iBY31..DMP198308-198507

main65672-96301iJY30..15T198004-198308

sub65603-96304

65692GUIDE, LINK

main65692-96301iBY31,JY30..DMP198004-198507

sub65616-93300

65695SPRING, BACK(FOR TAIL GATE LOCK LATCH)

main90506-23406iBY31,JY30..DMP198004-198507

65696LATCH, TAIL GATE LOCK

main65696-96301iBY31,JY30..DMP198004-198507

65697PIN, LATCH

main65697-96303iBY31,JY30..DMP198004-198507

65767SHAFT, ROLLER

main65677-96303iBY31,JY30..DMP198004-198507

9017010067

main90170-10067

9111150845

main91111-50845

9113170825

main91131-70825

9411040800

main94110-40800

9411541200

main94115-41200

9411541400

main94115-41400

9412040800

main94120-40800

9412041000

main94120-41000

9451100800

main94511-00800

9451201200

main94512-01200

9451201400

main94512-01400

9461211000

main94612-11000

9461211200

main94612-11200

9461211400

main94612-11400

9461310800

main94613-10800

9538103018

main95381-03018

30 parts on this diagram · 1 diagram in section
