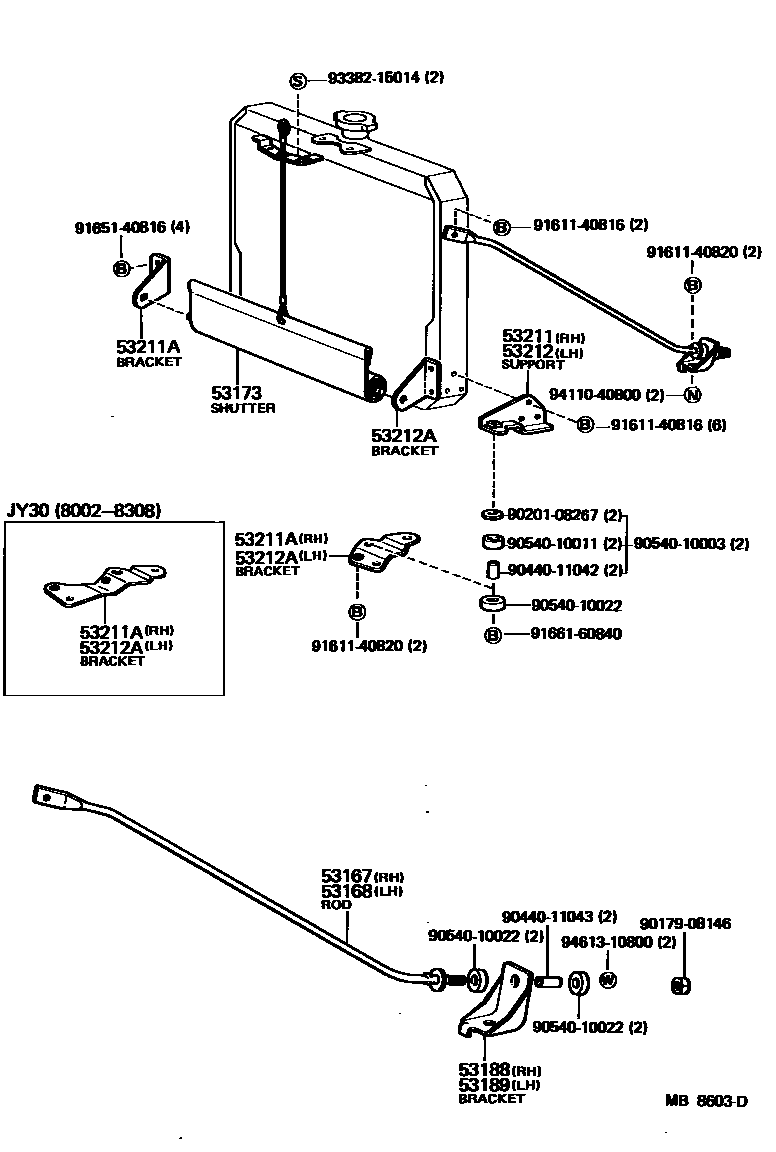

RADIATOR SUPPORT & WIND GUIDE

0001 1 0002 1

53167ROD, RADIATOR BRACE, RH

main53016-25010iBY30198009-198308

main53016-25020iBY31198308-198408

main53016-25040iBY31198408-198507

main53167-25060iLY20,RY21,32198308-198507

main53167-25070iJY30197903-198308

main53167-25110iLY21,31198308-198507

53168ROD, RADIATOR BRACE, LH

main53167-25070iJY30198008-198308

main53169-25030iLY20,RY21,32198308-198507

main53169-25040iJY30197903-198008

main53169-25050iBY30..T2,VPA198009-198308

main53169-25060iBY31..ST198308-198408

main53169-25070iBY31..(DMP,T3)..WT198308-198408

main53169-25080iLY21,31198308-198507

main53169-25100iBY31..(DMP,T3)..WT198408-198507

main53169-25110iBY31..ST198408-198507

main53169-36020iBY30..T3198009-198308

53173SHUTTER SUB-ASSY, RADIATOR WIND

main87540-95407iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-26010iJY30,LY2#,3#,RY2#,3#197903-198507

main53221-36010iBY3#198009-198507

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-26010iBY31..ST198308-198507

main53222-36030iBY3#..(DMP,T3)..WT198009-198507

53211SUPPORT, RADIATOR, RH

main53211-25010iLY20,RY21,32198308-198507

main53211-25020iJY30197903-198308

main53211-25030iBY31198308-198408

main53211-25040iBY31198408-198507

main53211-25050iLY21,31198308-198507

main53211-36020iBY30198009-198308

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-25010iLY2#,3#,RY2#,3#197903-198507

main51411-25020iJY30197903-198002

main51411-25021iJY30198002-198308

main51411-25030iBY3#..T2,VPA198009-198507

main51411-36030iBY3#..T3198009-198507

main87543-95011iLY30..ST;JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

W/RADIATOR WINDOW SHUTTER

53212SUPPORT, RADIATOR, LH

main53212-25010iLY20,RY21,32198308-198507

main53212-25020iJY30197903-198308

main53212-25030iBY31198308-198408

main53212-25040iBY31198408-198507

main53212-25050iLY21,31198308-198507

main53212-36020iBY30198009-198308

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-25010iLY2#,3#,RY2#,3#197903-198507

main51412-25020iJY30197903-198002

main51412-25021iJY30198002-198308

main51412-25030iBY3#..T2,VPA198009-198507

main51412-36040iBY3#..T3198009-198507

main87544-95011iJY30,LY2#,3#198201-198507

W/RADIATOR WINDOW SHUTTER

9017908146

main90179-08146

9020108267

main90201-08267

9044011042

main90440-11042

9044011043

main90440-11043

9054010003

main90540-10003

9054010011

main90540-10011

9054010022

main90540-10022

9161140816

main91611-40816

9161140820

main91611-40820

9165140816

main91651-40816

9166160840

main91661-60840

9338215014

main93382-15014

9411040800

main94110-40800

9461310800

main94613-10800

23 parts on this diagram · 2 diagrams in section
