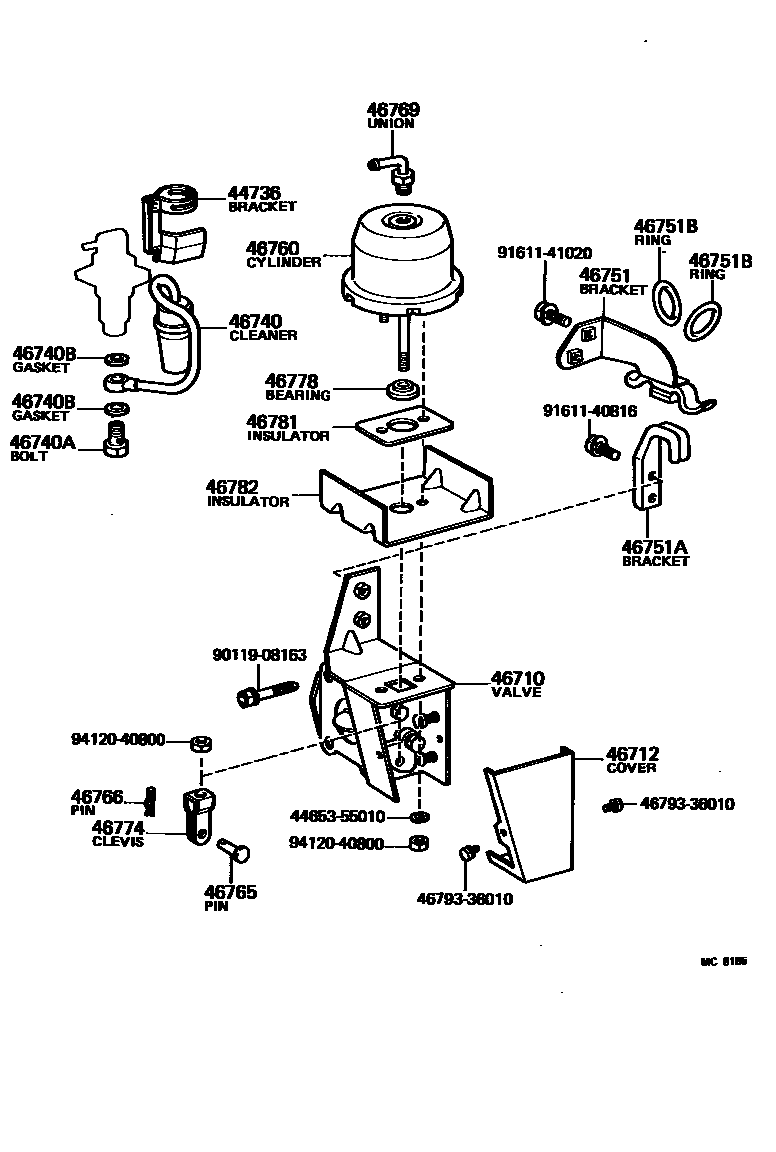

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0003 1 0005 1

44736BRACKET, AIR CLEANER

main44736-36011iBY3#..T2,VPA198201-198507

main44736-36020iBY30..T3198201-198308

46710VALVE ASSY, EXHAUST BRAKE

main46710-25010iBY3#..T2,VPA198201-198507

main46710-25020iBY3#..(DMP,T3)..WT198201-198507

46712COVER, EXHAUST VALVE LINK

main46712-36060iBY3#198201-198507

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36011iBY3#..T2,VPA198201-198507

main46740-36020iBY30..T3198201-198308

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBY3#198201-198507

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBY3#198201-198507

46751BRACKET, EXHAUST BRAKE, NO.1

main46702-36050iBY30..T2,VPA198201-198308

46751ABRACKET, EXHAUST BRAKE, NO.2

main17561-38010iBY30..T2,VPA198201-198308

46751BRING, O(FOR EXHAUST BRAKE BRACKET)

main90301-34207×2iBY30..T2,VPA198201-198308

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-36060iBY3#198201-198507

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBY3#198201-198507

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBY3#198201-198507

46769UNION, VACUUM CYLINDER

main46769-36010iBY3#198201-198507

46774CLEVIS, EXHAUST BRAKE ROD

main46744-25010iBY3#198201-198507

46778BEARING, VACUUM CYLINDER

main46778-36060iBY3#198201-198507

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBY3#198201-198507

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36060iBY3#198201-198507

4465355010HUB SUB-ASSY, BOOSTER

main44653-55010

4679336010BOLT, EXHAUST VALVE LINK COVER

main46793-36010

9011908163

main90119-08163

9161140816

main91611-40816

9161141020

main91611-41020

9412040800

main94120-40800

23 parts on this diagram · 3 diagrams in section
