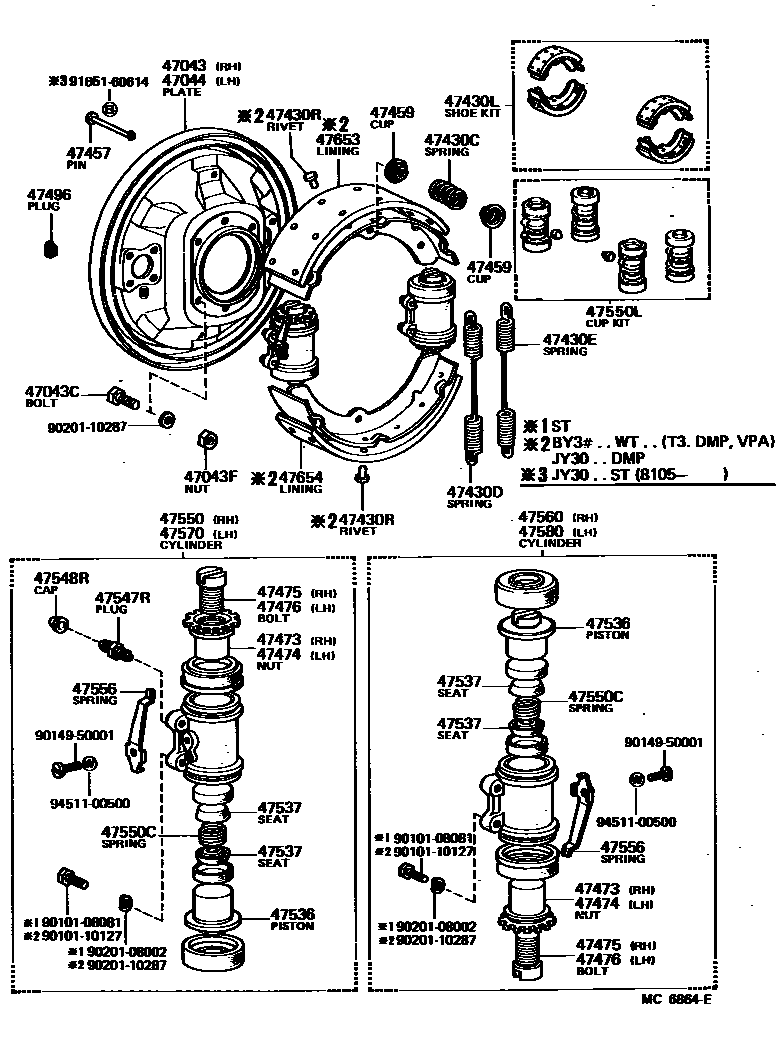

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0004 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25050iJY30..WT..20T197903-198201

main47043-25060iLY2#,3#,RY2#,3#..ST197903-198507

main47043-25070iLY20,30,RY20,31..WT197903-198201

main47043-25080iLY2#,3#,RY21,32..WT198201-198507

main47043-25090iBY3#..T2198201-198507

main47043-36050iBY31,JY30..ST197903-198507

main47043-36060iJY30..15T198004-198008

main47043-36061iBY3#..(DMP,T3,VPA)..WT198008-198507

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-35010iLY2#,3#,RY2#,3#..ST197903-198408

main42184-35011iLY2#,31,RY21,32..ST198408-198507

main90101-10028iBY3#..(DMP,T3,VPA)..WT198004-198408

main90109-10024iBY31..ST197903-198507

main90114-10019iBY31198408-198507

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178iBY31198408-198507

main94110-71000iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25020iJY30..WT..20T197903-198201

main47044-25030iLY2#,3#,RY2#,3#..ST197903-198507

main47044-25040iLY20,30,RY20,31..WT197903-198201

main47044-25050iLY2#,3#,RY21,32..WT198201-198507

main47044-25060iBY3#..T2198201-198507

main47044-36010iBY31,JY30..ST197903-198507

main47044-36020iJY30..15T198004-198008

main47044-36021iJY30..15T198008-198507

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iBY3#,JY30;LY2#,3#,RY2#,3#..WT197903-198507

main90501-20756iLY2#,3#,RY2#,3#..ST197903-198507

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26007iLY2#,3#,RY2#,3#..WT197903-198507

main90506-26008iBY3#,JY30..T2197903-198507

main90506-26009iLY2#,3#,RY2#,3#..ST197903-198507

main90506-26372iJY30..ST197903-197904

main90506-29006iBY31,JY30..ST197904-198507

main90506-29216iBY3#..(DMP,T3,VPA)..WT198004-198408

main90507-29006iBY31..(DMP,T3,VPA)..WT198408-198507

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26007iLY2#,3#,RY2#,3#..WT197903-198507

main90506-26008iBY3#,JY30..T2197903-198507

main90506-26009iLY2#,3#,RY2#,3#..ST197903-198507

main90506-26372iJY30..ST197903-197904

main90506-29006iBY31,JY30..ST197904-198507

main90506-29216iBY3#..(DMP,T3,VPA)..WT198004-198507

main90507-29006iBY31..(DMP,T3,VPA)..WT198408-198507

47430LSHOE KIT, REAR BRAKE

main04494-25020iLY2#,3#,RY2#,3#..ST197903-198507

main04494-36040iJY30..ST197903-198001

main04494-36041iBY31,JY30..ST198001-198507

main04495-25020iLY2#,3#,RY2#,3#..WT197903-198507

main04495-25030iJY30..WT..20T197903-198507

main04495-36050iBY3#..(DMP,T3,VPA)..WT198004-198507

main04496-25020iLY2#,3#,RY2#,3#..ST197903-198507

REBUILT

main04496-36040iJY30..ST197903-198001

REBUILT

main04496-36041iBY31,JY30..ST198001-198507

REBUILT

main04497-25020iLY2#,3#,RY2#,3#..WT197903-198507

REBUILT

main04497-25030iJY30..WT..20T197903-198507

REBUILT

main04497-36050iJY30..15T198004-198507

REBUILT

47430RRIVET, BRAKE LINING(FOR REAR BRAKE)

main90266-05005iBY3#..(DMP,T3,VPA)..WT198004-198507

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLY2#,31,RY21,32197903-198507

main47447-36020iBY31,JY30..ST197903-198507

main47447-60010iBY3#..(DMP,T3,VPA)..WT198004-198507

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-25060iBY3#..T2197903-198507

LH SCREW

main47551-36012iBY3#..(DMP,T3,VPA)..WT198004-198507

LH SCREW

main47551-36071iBY31,JY30,LY2#,3#,RY2#,3#..ST197903-198507

LH SCREW

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-25060iBY3#..T2197903-198507

RH SCREW

main47552-36012iJY30..15T198004-198507

RH SCREW

main47552-36071iBY31,JY30,LY2#,3#,RY2#,3#..ST197903-198507

RH SCREW

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-25030iBY3#..T2197903-198507

LH SCREW

main47553-36021iBY31,JY30,LY2#,3#,RY2#,3#..ST197903-198507

LH SCREW

main47553-36030iBY3#..(DMP,T3,VPA)..WT198004-198507

LH SCREW

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-25030iJY30,LY2#,3#,RY2#,3#..TR..WT197903-198507

RH SCREW

main47554-36021iBY31,JY30,LY2#,3#,RY2#,3#..ST197903-198507

RH SCREW

main47554-36030iBY3#..(DMP,T3,VPA)..WT198004-198507

RH SCREW

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-36060iBY31,JY30..ST197903-198507

main47531-25020iBY3#..(DMP,T3,VPA)..WT198004-198507

main47531-35090iLY2#,3#,RY2#,3#..ST197903-198507

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-30011iJY30..15T197903-198507

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29195iJY30..WT..20T197903-198507

ID=28.5

main47550-29205iLY20,30,RY2#,3#..WT197903-198212

ID=25.4

main47550-29206iLY2#,3#,RY21,32..WT198212-198507

ID=25.4

main47550-29215iLY2#,3#,RY2#,3#..ST197903-198507

ID=28.5

main47550-39235iBY31,JY30..ST197903-198507

ID=28.5

main47550-39265iBY3#..(DMP,T3,VPA)..WT198004-198507

ID=28.5

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122iJY30..15T197903-198507

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-25040iJY30..WT..20T197903-198507

ID=28.5

main04906-36040iBY31,JY30,LY2#,3#,RY2#,3#..ST197903-198507

ID=28.5

main04906-36050iLY2#,3#,RY2#,3#..WT197903-198507

ID=25.4

main04906-36070iJY30..15T198004-198507

ID=28.5

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36020iBY3#..(DMP,T3,VPA)..WT197903-198507

main47555-36030iBY3#..T2197903-198507

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-29055iBY3#..T2197903-198507

ID=28.5

main47560-29065iLY20,30,RY2#,3#..WT197903-198212

ID=25.4

main47560-29066iLY2#,3#,RY21,32..WT198212-198507

ID=25.4

main47560-29075iLY2#,3#,RY2#,3#..ST197903-198507

ID=28.5

main47560-39085iBY31,JY30..ST197903-198507

ID=28.5

main47560-39115iBY3#..(DMP,T3,VPA)..WT198004-198507

ID=28.5

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-29055iJY30..WT..20T197903-198507

ID=28.5

main47570-29065iLY20,30,RY2#,3#..WT197903-198212

ID=25.4

main47570-29066iLY2#,3#,RY21,32..WT198212-198507

ID=25.4

main47570-29075iLY2#,3#,RY2#,3#..ST197903-198507

ID=28.5

main47570-39075iBY31,JY30..ST197903-198507

ID=28.5

main47570-39105iJY30..15T198004-198507

ID=28.5

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-29055iBY3#..T2197903-198507

ID=28.5

main47580-29065iLY20,30,RY2#,3#..WT197903-198212

ID=25.4

main47580-29066iLY2#,3#,RY21,32..WT198212-198507

ID=25.4

main47580-29075iLY2#,3#,RY2#,3#..ST197903-198507

ID=28.5

main47580-39075iBY31,JY30..ST197903-198507

ID=28.5

main47580-39105iBY3#..(DMP,T3,VPA)..WT198004-198507

ID=28.5

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-36010iJY30..15T198004-198507

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-36010iJY30..15T198004-198507

9010108081

main90101-08081

9010110127

main90101-10127

9014950001

main90149-50001

9020108002

main90201-08002

9020110287

main90201-10287

9165160614

main91651-60614

9451100500

main94511-00500

36 parts on this diagram · 2 diagrams in section
