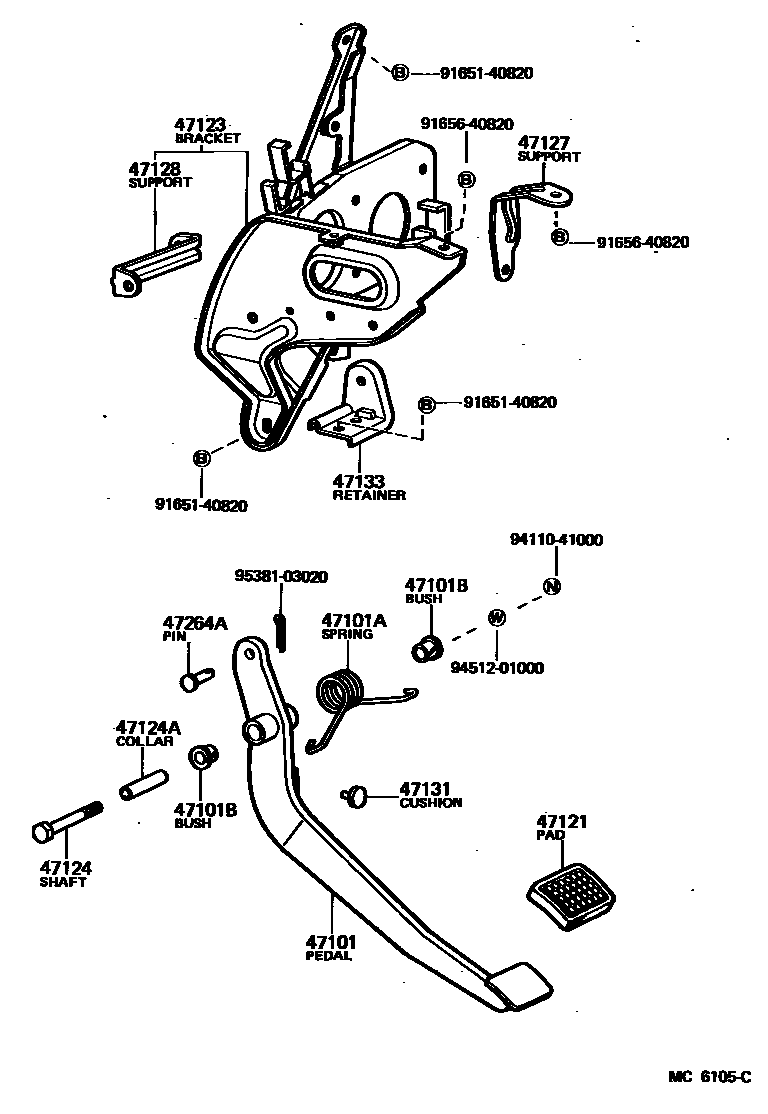

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-40005iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47121PAD, BRAKE PEDAL

main31321-25030iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47123BRACKET, BRAKE PEDAL

main55160-95018iJY30;BY3#,LY2#,3#,RY2#,3#..TR197903-198507

main55160-95024iBY31..DMP198308-198507

47124SHAFT, BRAKE PEDAL

main91111-51070iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47127SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55105-95013iBY30,JY30,LY20,30,RY20,31197903-198201

main55109-95014iBY31..DMP198308-198507

main55175-95010iJY30;BY3#,LY2#,3#,RY21,32..TR198201-198507

47128SUPPORT SUB-ASSY, PEDAL BRACKET

main55172-95012iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47133RETAINER, PEDAL BRACKET, LOWER

main55702-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47264APIN(FOR PUSH ROD)

main90240-10015iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

9165140820

main91651-40820

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

17 parts on this diagram · 1 diagram in section
