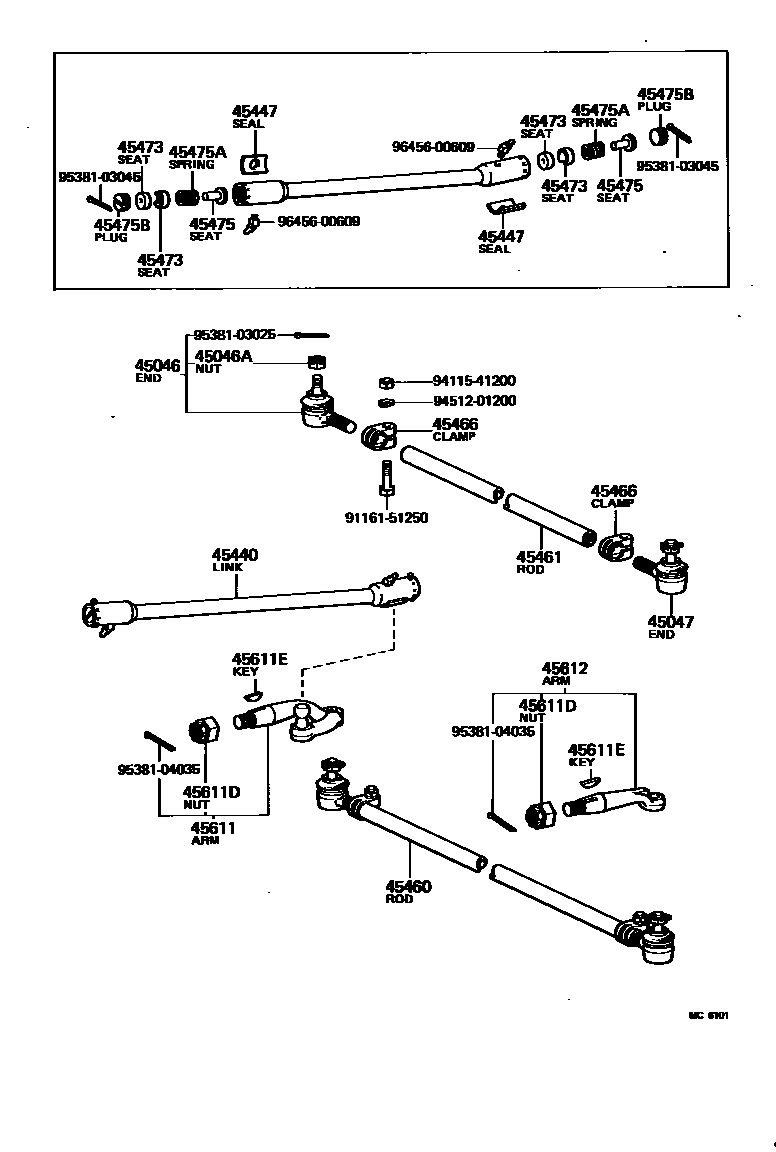

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29085iLY2#,3#,RY2#,3#197903-198507

main45046-39095iBY3#,JY30197903-198507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14041×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45047END SUB-ASSY, TIE ROD, LH

main45047-29035iLY2#,3#,RY2#,3#197903-198507

main45047-39065iBY3#,JY30197903-198507

45440LINK ASSY, STEERING DRAG

main45441-29015iLY20,30,RY20,31197903-198201

main45441-29035iBY30,JY30197903-198201

main45441-29055iLY2#,3#,RY21,32198201-198507

main45441-29075iJY30;BY3#..TR198201-198507

main45441-29095iBY3#..TR198201-198507

W/POWER STEERING

main45441-29155iBY31..DMP198308-198507

main45441-29165iLY21,31198308-198507

W/POWER STEERING

45447SEAL, DRAG LINK DUST

main45447-25010×2iBY3#,JY30,LY2#,3#,RY21,32198201-198507

main45447-36020×2iBY3#198201-198507

W/POWER STEERING

main45447-60010×2iBY30,JY30,LY20,30,RY20,31197903-198201

45460ROD ASSY, TIE, RH

main45460-29155iLY2#,3#,RY2#,3#197903-198507

main45460-29235iBY31..DMP198308-198507

main45460-39085iJY30;BY3#..TR197903-198507

45461ROD, STEERING TIE

main45461-36020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45466CLAMP, TIE ROD END

main45466-55020×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45473SEAT, BALL STUD

main45473-55010×4iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45475SEAT, STEERING LINK JOINT SPRING

main45475-36030×2iBY3#,LY21,31198201-198507

W/POWER STEERING

main45475-55010×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45475ASPRING, COMPRESSION(FOR STEERING LINK JOINT)

main90501-50118×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main90501-55001×2iBY3#,LY21,31198201-198507

W/POWER STEERING

45475BPLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

main90340-28001×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main90340-28002×2iBY3#,LY21,31198201-198507

W/POWER STEERING

45611ARM, STEERING KNUCKLE, RH

main45601-29015iLY20,30,RY20,31197903-198201

main45601-29035iLY2#,3#,RY21,32198201-198507

main45601-29055iBY31..DMP198308-198408

main45601-29056iBY31..DMP198408-198507

main45601-29065iBY31..TR198408-198507

main45601-29075iBY31198408-198507

W/POWER STEERING

main45601-39015iJY30;BY3#..TR197903-198408

main45601-39055iBY3#198201-198408

W/POWER STEERING

45611DNUT(FOR STEERING KNUCKLE ARM)

main90171-22038×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198408

main90179-22007×2iBY31198408-198507

45611EKEY, WOODRUFF(FOR STEERING IDLER ARM)

main90280-07012×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45612ARM, STEERING KNUCKLE, LH

main45612-29015iLY2#,3#,RY2#,3#197903-198408

main45612-29035iBY31..DMP198308-198507

main45612-29036iLY2#,31,RY21,32198408-198507

main45612-29045iBY31..TR198408-198507

main45612-39015iJY30;BY3#..TR197903-198408

9116151250

main91161-51250

9411541200

main94115-41200

9451201200

main94512-01200

9538103025

main95381-03025

9538103045

main95381-03045

9538104035

main95381-04035

9645600609

main96456-00609

23 parts on this diagram · 2 diagrams in section
