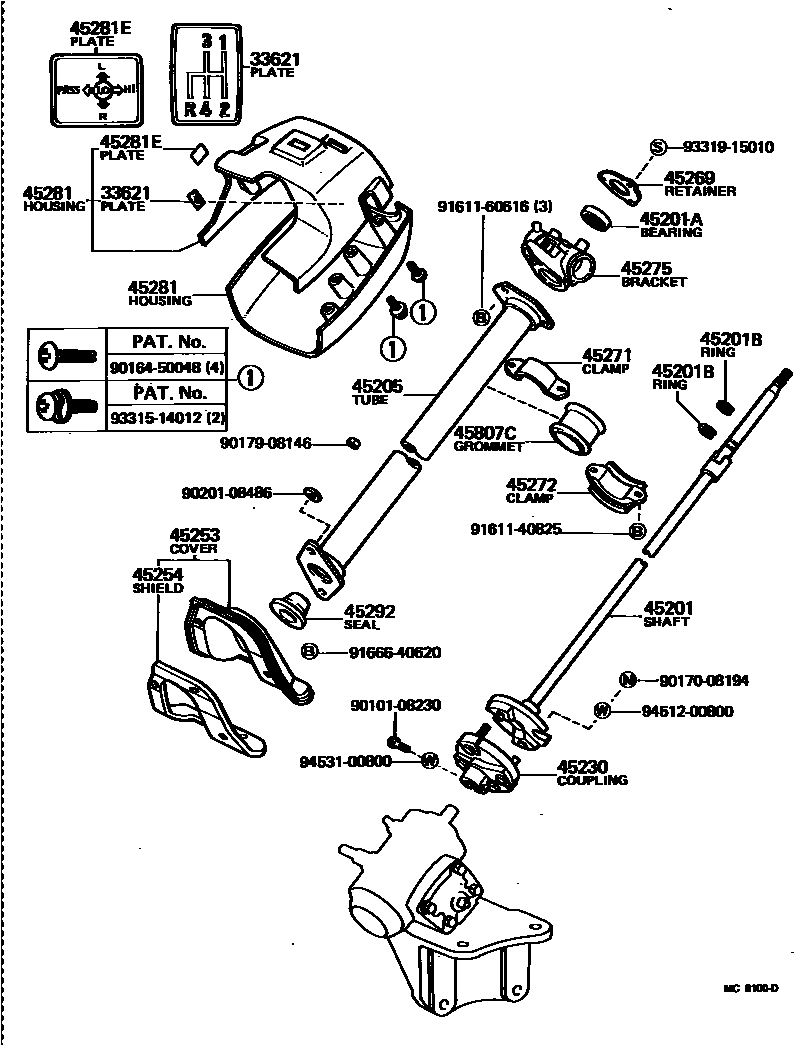

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iBY3#,JY30,LY2#,3#197903-198507

main33621-36040iRY2#,3#197903-198507

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-25070iBY3#,JY30197903-198507

main45201-25080iBY31,LY21198308-198507

W/POWER STEERING

main45201-36110iLY2#,3#,RY2#,3#197903-198507

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main90520-17269iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-25090iBY30,JY30,LY20,30,RY2#,3#197903-198308

main45205-25110iBY31,LY2#,31,RY21,32198308-198507

45230COUPLING ASSY, FLEXIBLE

main45230-36010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45253COVER, STEERING COLUMN HOLE

main45253-25030iBY30,JY30,LY20,30,RY2#,3#197903-198308

main45253-25050iBY31,LY2#,31,RY21,32198308-198507

45254SHIELD, STEERING COLUMN HOLE

main45254-25020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45271CLAMP, STEERING COLUMN, UPPER

main45271-25010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45272CLAMP, STEERING COLUMN, LOWER

main45272-25010iBY30,JY30,LY20,30,RY20,31197903-198201

main45272-25020iBY3#,JY30,LY2#,3#,RY21,32198201-198507

45275BRACKET, STEERING COLUMN, UPPER

main45307-36050iBY30,JY30,LY20,30,RY2#,3#197903-198209

main45307-36051iBY3#,JY30,LY2#,3#,RY21,32198209-198507

45281HOUSING, STEERING COLUMN

main45286-25010iRY20,31197903-198201

UPR

main45286-25020iBY30,JY30,LY20,30197903-198201

UPR

main45286-25070iRY21,32198201-198507

UPR

main45286-25080iBY3#,JY30,LY2#,3#198201-198507

UPR

main45286-25130iBY3#198201-198507

UPR,W/EXHAUST BRAKE

main45287-25010iBY30,JY30,LY20,30,RY20,31197903-198201

LWR

main45287-25030iBY3#,JY30,LY2#,3#,RY21,32198201-198507

LWR

45281EPLATE, SAFETY CAUTION

main45283-22010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9017908146

main90179-08146

9020108486

main90201-08486

9161140825

main91611-40825

9161160616

main91611-60616

9166640620

main91666-40620

9331514012

main93315-14012

9331915010

main93319-15010

9451200800

main94512-00800

9453100800

main94531-00800

28 parts on this diagram · 7 diagrams in section
