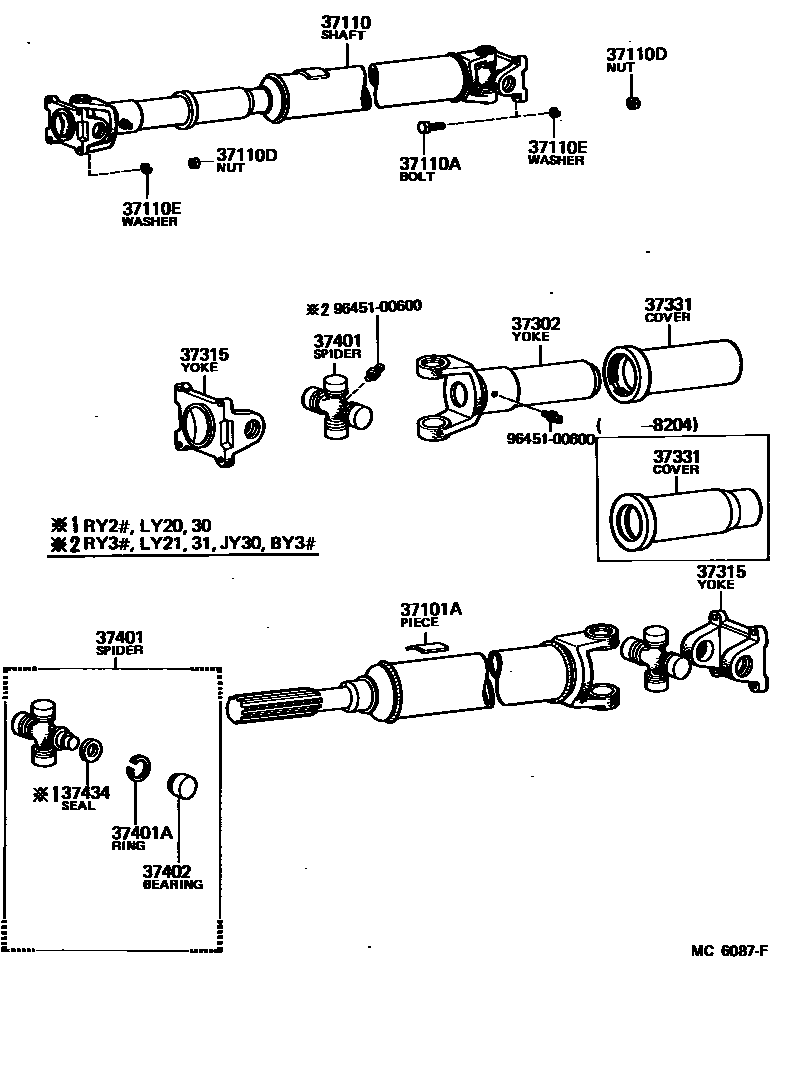

PROPELLER SHAFT & UNIVERSAL JOINT

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01010iLY20,30,RY2#197903-198507

10G

main90937-01011iLY20,30,RY2#197903-198507

20G

main90937-01012iLY20,30,RY2#197903-198507

30G

main90937-01022iLY20,30,RY2#197903-198507

main90937-01132iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01136iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01140iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01147iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01148iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01149iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01150iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01151iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01152iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01153iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01154iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01155iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01156iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01157iBY3#,JY30,LY21,31,RY3#197903-198507

main90937-01158iBY3#,JY30,LY21,31,RY3#197903-198507

37110SHAFT ASSY, PROPELLER

main37110-25070iJY30..WT..20T197903-198308

L=1144

main37110-25110iLY21..ST198308-198408

L=890

main37110-25111iLY21..ST198408-198507

L=885

main37110-25120iLY21..WT198308-198408

L=904

main37110-25121iLY21..WT198408-198507

L=898

main37110-25130iLY31..ST198308-198408

L=1149

main37110-25131iLY31..ST198408-198507

L=1144

main37110-25140iLY31..WT198308-198408

L=1161

main37110-25141iLY31..WT198408-198507

L=1155

main37110-25150iRY3#..WT197903-198408

L=1234

main37110-25151iRY32..WT198408-198507

L=1229

main37110-25160iRY3#..ST197903-198408

L=1224

main37110-25161iRY32..ST198408-198507

L=1219

main37110-25170iJY30..DMP,T1,T3197903-198308

L=1136

main37110-25180iLY20..ST197903-198308

L=894

main37110-25181iLY20..ST198308-198408

L=894

main37110-25182iLY20..ST198408-198507

L=890

main37110-25190iRY2#..ST197903-198308

L=966

main37110-25191iRY21..ST198308-198507

L=966

main37110-25200iRY2#..WT197903-198308

L=983

main37110-25201iRY21..WT198308-198408

L=983

main37110-25202iRY21..WT198408-198507

L=979

main37110-25210iLY30..ST197903-198308

L=1154

main37110-25230iLY30..WT197903-198308

L=1168

main37110-25240iLY20..WT197903-198308

L=911

main37110-25241iLY20..WT198308-198408

L=911

main37110-25242iLY20..WT198408-198507

L=907

main37110-25260iBY31..DMP198408-198507

L=1042

main37110-25270iBY31..TR198408-198507

L=1093

main37110-36290iBY3#..TR198009-198408

L=1112

main37110-36351iBY31..DMP198308-198408

L=1054

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×4iLY20,30,RY21198304-198308

main90101-08214×4iLY20,30,RY2#197903-198304

main90101-11468×4iBY30,JY30,RY3#197903-198207

main90105-10085×4iLY20,RY21198308-198507

main90105-11013×4iBY3#,JY30,LY21,31,RY32198207-198507

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015×8iLY20,30,RY21198304-198308

main90170-11205×8iBY30,JY30,RY3#197903-198207

main90179-10059×8iLY20,RY21198308-198507

main90179-11005×8iBY3#,JY30,LY21,31,RY32198207-198507

main94110-50800×8iLY20,30,RY2#197903-198304

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013×8iBY3#,JY30,LY21,31,RY32198207-198507

main90204-10002×8iLY20,RY21198308-198507

main90206-11085×8iBY30,JY30,RY3#197903-198207

main94512-00800×8iLY20,30,RY2#197903-198308

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-25010iLY20,30,RY2#197903-198507

main37302-36010iBY3#,JY30,LY21,31,RY3#197903-198507

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35021×2iLY20,30,RY2#197903-198308

main37315-35050×2iLY20,RY21198308-198507

main37315-36010×2iBY3#,JY30,LY21,31,RY3#197903-198408

main37315-36020×2iBY31,LY21,31,RY32198408-198507

37331COVER, SLIDING SHAFT DUST

main37305-25010iBY30,JY30,LY20,30,RY2#,3#197903-198204

main37305-36010iBY3#,JY30,LY2#,3#,RY21,32198204-198507

37401SPIDER KIT, UNIVERSAL JOINT

main04371-25010×2iLY20,30,RY2#197903-198507

main04371-36021×2iBY3#,JY30,LY21,31,RY3#197903-198405

main04371-36030×2iBY31,LY21,31,RY32198405-198507

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29002×8iBY3#,JY30,LY21,31,RY3#197903-198408

main90520-29024×8iBY31,LY21,31,RY32198408-198507

main90520-29025×8iBY31,LY21,31,RY32198408-198507

main90520-29026×8iBY31,LY21,31,RY32198408-198507

main90520-29027×8iBY31,LY21,31,RY32198408-198507

main90520-29286×8iBY3#,JY30,LY21,31,RY3#197903-198408

main90520-29287×8iBY3#,JY30,LY21,31,RY3#197903-198408

main90520-29288×8iBY3#,JY30,LY21,31,RY3#197903-198408

main90521-29070×8iLY20,30,RY2#197903-198507

main90521-29071×8iLY20,30,RY2#197903-198507

main90521-29072×8iLY20,30,RY2#197903-198507

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25020×8iLY20,30,RY2#197903-198507

main37402-36060×8iBY3#,JY30,LY21,31,RY3#197903-198408

main37402-36080×8iBY31,LY21,31,RY32198408-198507

37434SEAL, UNIVERSAL JOINT SPIDER BEARING

main37434-25010×8iLY20,30,RY2#197903-198507

9645100600

main96451-00600

13 parts on this diagram · 1 diagram in section
