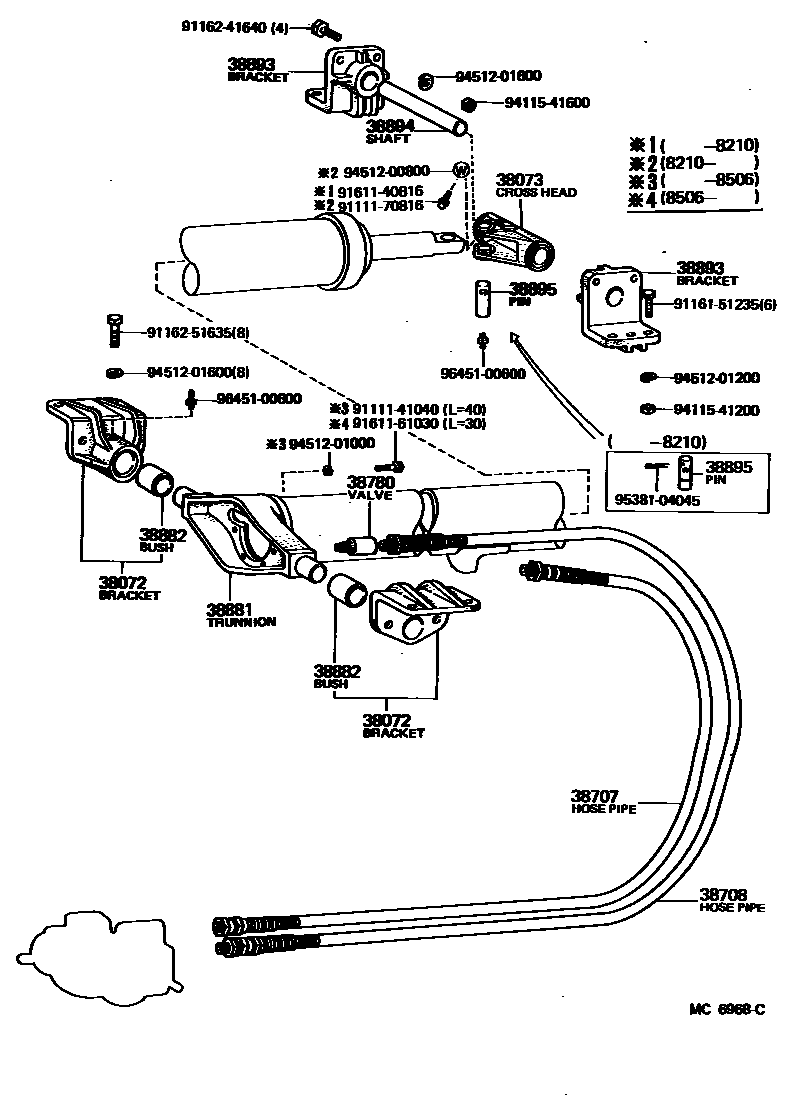

HOIST CYLINDER TRUNNION & LIFT ARM

38072BRACKET SUB-ASSY, TRUNNION

main38072-96250×2iJY30..15T..CBU198004-198308

main38072-96305×2iBY31..DMP..CBU198308-198507

38073CROSSHEAD SUB-ASSY

main38073-96302iBY31,JY30..DMP..CBU198004-198507

38707HOSE SUB-ASSY, SUCTION

main38707-96306iBY31,JY30..DMP..CBU198004-198507

38708HOSE SUB-ASSY, DELIVERY

main38708-96305iBY31,JY30..DMP..CBU198004-198507

38780VALVE ASSY, SPEED CONTROL

main38780-96301iBY31,JY30..DMP..CBU198004-198507

38881TRUNNION, HOIST CYLINDER

main38881-96250iJY30..15T..CBU198004-198308

main38881-96307iBY31..DMP..CBU198308-198507

38882BUSH, TRUNNION

main38882-96304×2iBY31,JY30..DMP..CBU198004-198507

38893BRACKET, CROSSHEAD

main38893-96302×2iBY31,JY30..DMP..CBU198004-198507

38894SHAFT, CROSSHEAD

main38894-96302iBY31,JY30..DMP..CBU198004-198507

38895PIN, CROSSHEAD

main38895-96302iJY30..15T..CBU198004-198210

main38895-96303iBY31,JY30..DMP..CBU198210-198507

9111141040

main91111-41040

9111170816

main91111-70816

9116151235

main91161-51235

9116241640

main91162-41640

9116251635

main91162-51635

9161140816

main91611-40816

9161161030

main91611-61030

9411541200

main94115-41200

9411541600

main94115-41600

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9451201600

main94512-01600

9538104045

main95381-04045

9645100600

main96451-00600

25 parts on this diagram · 1 diagram in section
