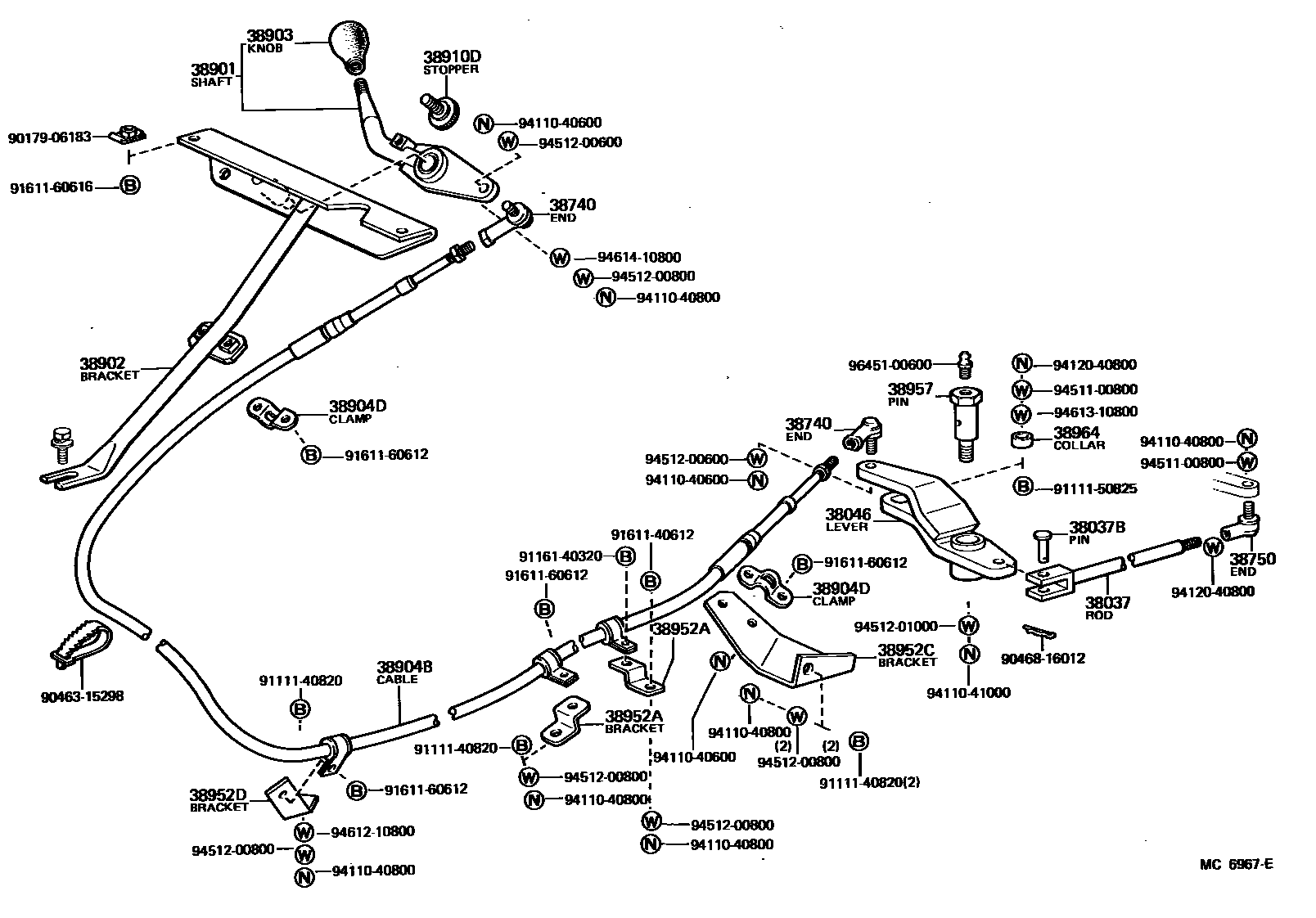

POWER TAKE-OFF LEVER & LINK
38037ROD SUB-ASSY, VALVE CONTROL, REAR
38037BPIN, VALVE CONTROL REAR ROD
38046LEVER SUB-ASSY, POWER TAKE-OFF CONTROL
38740END ASSY, CONNECTING ROD
38750END ASSY, CONNECTING ROD
38901SHAFT SUB-ASSY, CONTROL
38902BRACKET SUB-ASSY, CONTROL SHAFT, UPPER
38903KNOB SUB-ASSY, CONTROL
38904BCABLE ASSY, PUSH PULL
38904DCLAMP, CABLE PUSH PULL
38910DSTOPPER, CONTROL LEVER
38952ABRACKET, CONTROL CABLE CLAMP, NO.1
38952CBRACKET, CONTROL CABLE CLAMP, NO.3
38952DBRACKET, CONTROL CABLE CLAMP, NO.4
38957PIN, CONTROL LEVER
38964COLLAR, CONTROL LEVER
9017906183
main90179-06183
9046315298
main90463-15298
9046816012
main90468-16012
9111140820
main91111-40820
9111150825
main91111-50825
9116140320
main91161-40320
9161140612
main91611-40612
9161160612
main91611-60612
9161160616
main91611-60616
9411040600
main94110-40600
9411040800
main94110-40800
9411041000
main94110-41000
9412040800
main94120-40800
9451100800
main94511-00800
9451200600
main94512-00600
9451200800
main94512-00800
9451201000
main94512-01000
9461210800
main94612-10800
9461310800
main94613-10800
9461410800
main94614-10800
9645100600
main96451-00600
37 parts on this diagram · 2 diagrams in section
