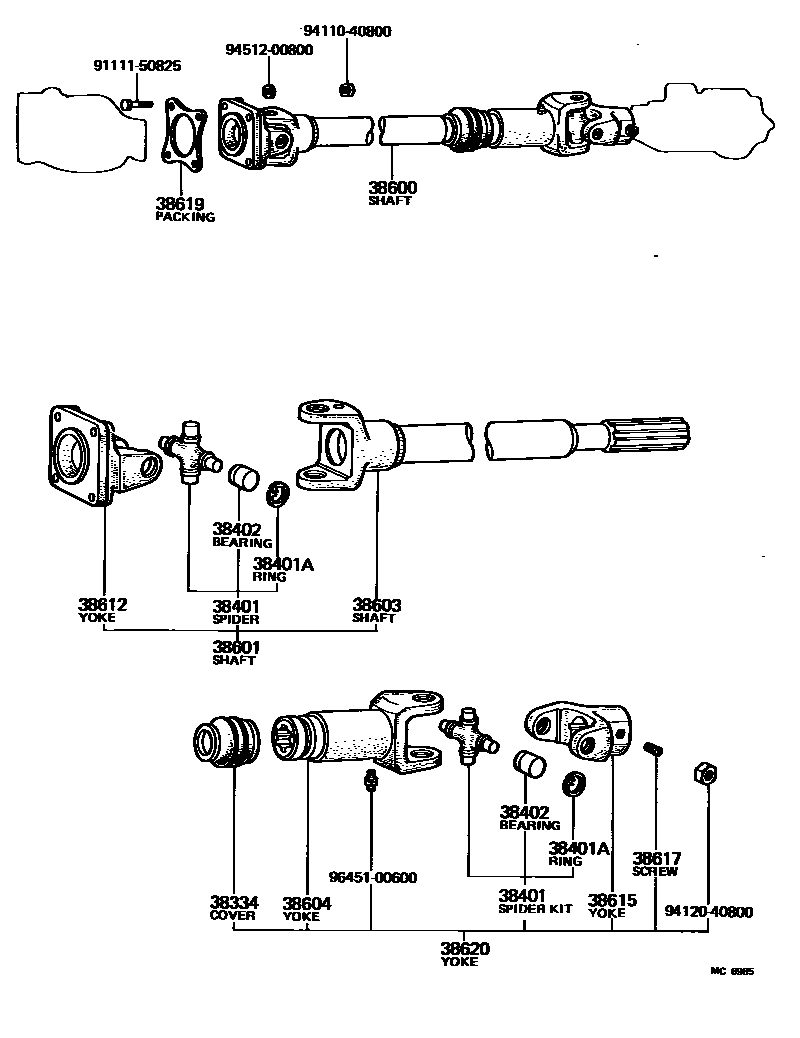

DRIVE SHAFT

38334COVER, COUPLING SLEEVE REAR, DUST

main37334-10010iBY31,JY30..DMP..CBU198004-198507

38401SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)

main04371-10011×2iBY31,JY30..DMP..CBU198004-198507

38401ARING, UNIVERSAL JOINT NEEDLE

main90521-22011×8iBY31,JY30..DMP..CBU198004-198507

T=1.20

main90521-22012×8iBY31,JY30..DMP..CBU198004-198507

T=1.25

main90521-22013×8iBY31,JY30..DMP..CBU198004-198507

T=1.30

38402BEARING, UNIVERSAL JOINT SPIDER

main37402-10020×8iBY31,JY30..DMP..CBU198004-198507

38600SHAFT ASSY, OIL PUMP DRIVE

main38600-96306iBY31,JY30..DMP..CBU198004-198507

38601SHAFT SUB-ASSY, PUMP DRIVE, FRONT

main38601-96306iBY31,JY30..DMP..CBU198004-198507

38603SHAFT SUB-ASSY, FRONT DRIVE

main38603-96304iBY31,JY30..DMP..CBU198004-198507

38604YOKE SUB-ASSY, FRONT DRIVE

main38604-96301iBY31,JY30..DMP..CBU198004-198507

38612YOKE, UNIVERSAL JOINT FLANGE

main37315-12010iBY31,JY30..DMP..CBU198004-198507

38615YOKE, PUMP DRIVE SHAFT

main38615-96301iBY31,JY30..DMP..CBU198004-198507

38617SCREW, UNIVERSAL JOINT YOKE, SET

main90113-08064iBY31,JY30..DMP..CBU198004-198507

38619PACKING, UNIVERSAL JOINT YOKE

main38619-96302iBY31,JY30..DMP..CBU198004-198507

38620YOKE ASSY, PUMP DRIVE

main38602-96302iBY31,JY30..DMP..CBU198004-198507

9111150825

main91111-50825

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

9645100600

main96451-00600

18 parts on this diagram · 1 diagram in section
