TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

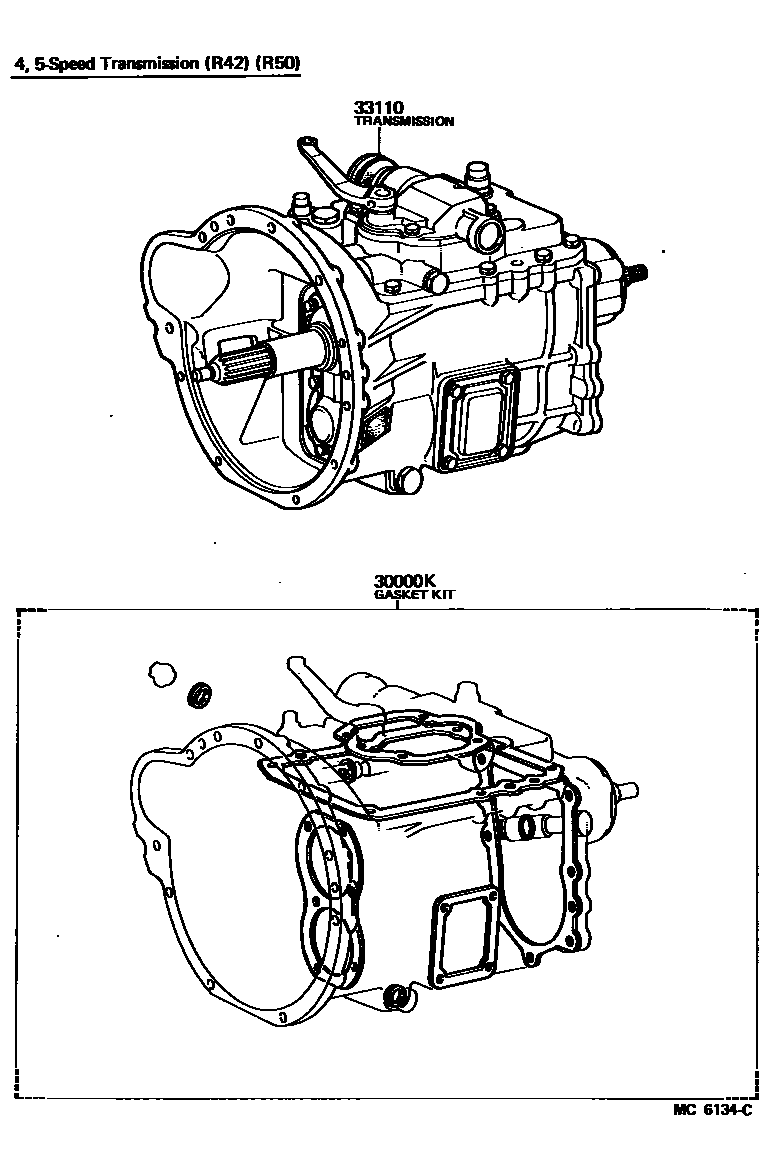

Parts diagram

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25010i197903-198507

main04331-36024i198308-198507

main04331-36041i197903-198408

main04331-36060i198408-198507

33110TRANSMISSION ASSY, MANUAL

main33030-25040i197903-198004

SMG=5

main33030-25050i197903-198004

SMG=5

main33110-25460i197903-198201

SMG R=17:4

main33110-25470i197903-198201

SMG R=18:4

main33110-25490i197903-198201

SMG R=22:6

main33110-25500i197903-198201

SMG R=18:5

main33110-25560i197903-198201

SMG R=22:6

main33110-25570i197903-198201

SMG R=18:5

main33110-25590i198004-198006

SMG R=19:5

main33110-25591i198006-198201

SMG R=19:5

main33110-25600i198004-198006

SMG R=19:5

main33110-25601i198006-198201

SMG R=19:5

main33110-25620i198004-198006

SMG R=17:4

main33110-25621i198006-198201

SMG R=17:4

main33110-25631i198009-198201

SMG R=17:5

main33110-25640i198201-198308

SMG R=17:4

main33110-25650i198201-198308

SMG R=18:4

main33110-25651i198308-198507

main33110-25670i198201-198308

SMG R=18:5

main33110-25680i198201-198308

SMG R=22:6

main33110-25681i198308-198507

main33110-25740i198201-198308

SMG R=22:6

main33110-25742i198308-198507

main33110-25750i198201-198308

SMG R=18:5

main33110-25760i198201-198308

SMG R=18:5

main33110-25770i198201-198308

SMG R=19:5

main33110-25780i198201-198308

SMG R=17:4

main33110-25840i198201-198308

SMG R=17:5

main33110-25850i198201-198308

SMG R=18:5

main33110-25860i198201-198308

SMG R=17:5

main33120-25900i198308-198408

main33120-25901i198308-198408

W/EXHAUST BRAKE

main33120-25902i198408-198507

main33120-25903i198408-198507

W/EXHAUST BRAKE

main33120-25905i198408-198507

main33120-25906i198408-198507

W/EXHAUST BRAKE

main33120-3B902i198308-198408

W/EXHAUST BRAKE

main33120-3B906i198308-198408

2 parts on this diagram · 3 diagrams in section
