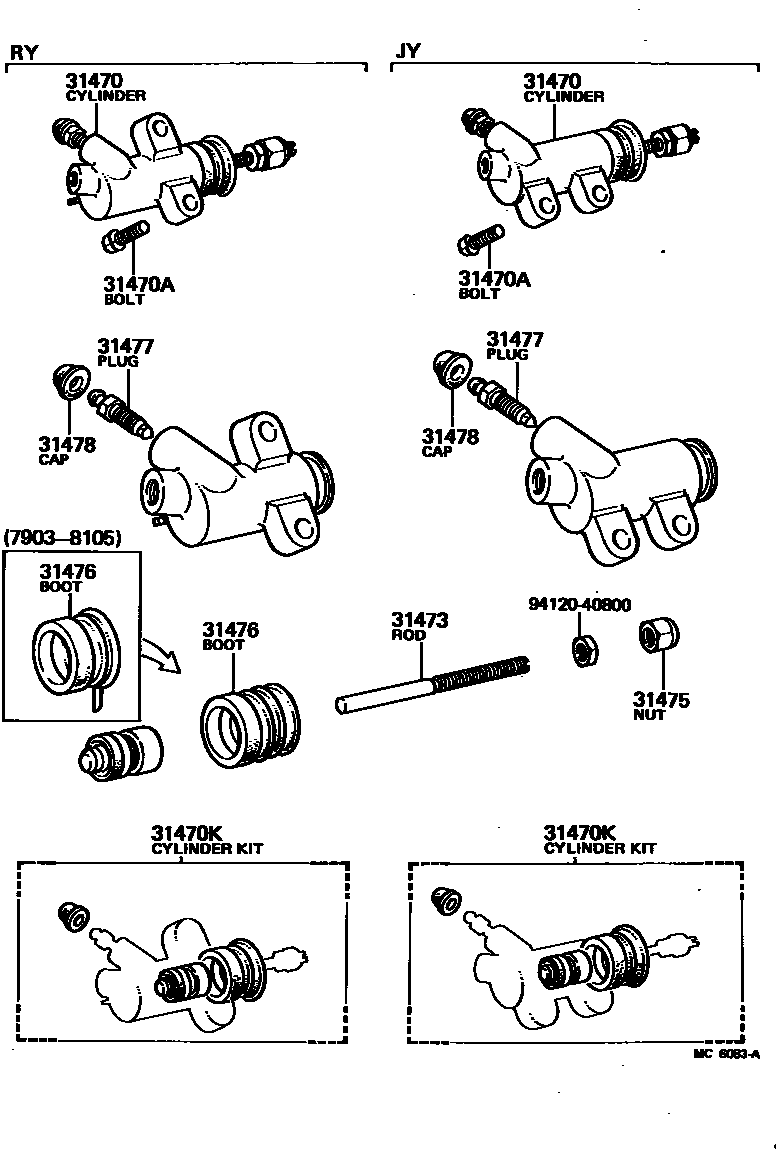

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iJY30197903-198107

main31470-20101iRY2#,3#197903-198507

main31470-25010iBY3#198009-198408

main31470-25020iBY31198408-198507

main31470-26020iJY30198107-198308

main31470-26030iLY2#,3#198107-198507

main31470-30120iLY20,30197903-198107

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iJY30,LY2#,3#,RY2#,3#197903-198501

sub91611-B0825

main91611-60828×2iBY3#198009-198501

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-25010iBY30198009-198105

main04313-30054iJY30,LY20,30,RY20,31197903-198105

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iBY30198009-198105

main31473-30021iJY30,LY20,30,RY20,31197903-198105

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iBY3#198009-198507

main31475-30020iJY30,LY2#,3#,RY2#,3#197903-198507

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iJY30,LY20,30,RY20,31197903-198105

main31476-22010iBY30198009-198105

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
