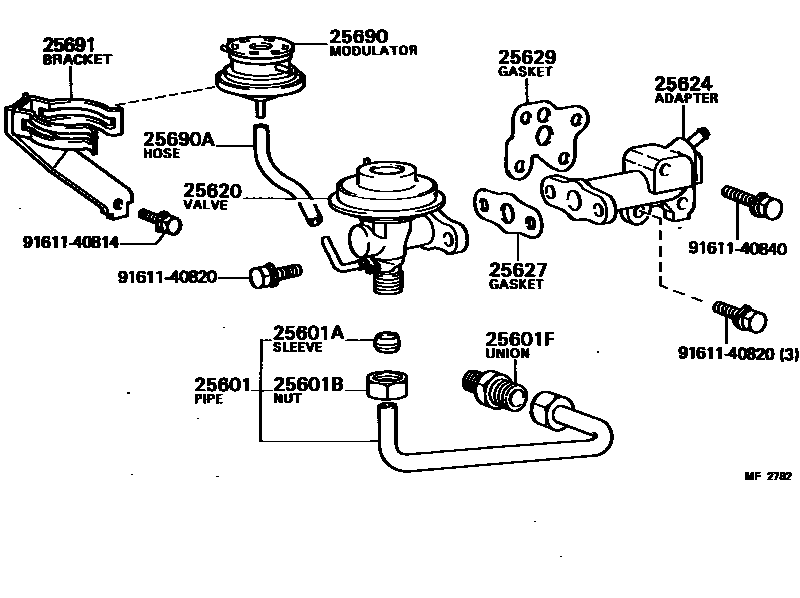

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-31030i12R..RY21198201-198507

main25601-44030i5R..RY32198201-198507

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042×2i12R..RY21198201-198507

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073×2i12R..RY21198201-198507

25601FUNION(FOR EGR PIPE, NO.1)

main90404-20001i12R..RY21198201-198507

25620VALVE ASSY, EGR

main25620-31050i12R..RY21198201-198507

main25620-44060i5R..RY32198201-198507

25624ADAPTER, EGR VALVE

main25607-31030i12R..RY21198201-198507

main25607-44020i5R..RY32198201-198507

25627GASKET, EGR VALVE

main25627-31020i12R..RY21198201-198507

main25627-44010i5R..RY32198201-198507

25629GASKET, EGR VALVE ADAPTER

main25629-31020i12R..RY21198201-198507

main25629-44020i5R..RY32198201-198507

25690MODULATOR ASSY, EGR VACUUM

main25870-31010i12R..RY21198201-198507

main25870-44020i5R..RY32198201-198507

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11051i12R..RY21198201-198507

main90910-05137i5R..RY32198201-198507

25691BRACKET, EGR VACUUM MODULATOR

main25691-31020i12R..RY21198201-198507

main25691-44030i5R..RY32198201-198507

9161140814

main91611-40814

9161140820

main91611-40820

9161140840

main91611-40840

14 parts on this diagram · 2 diagrams in section
