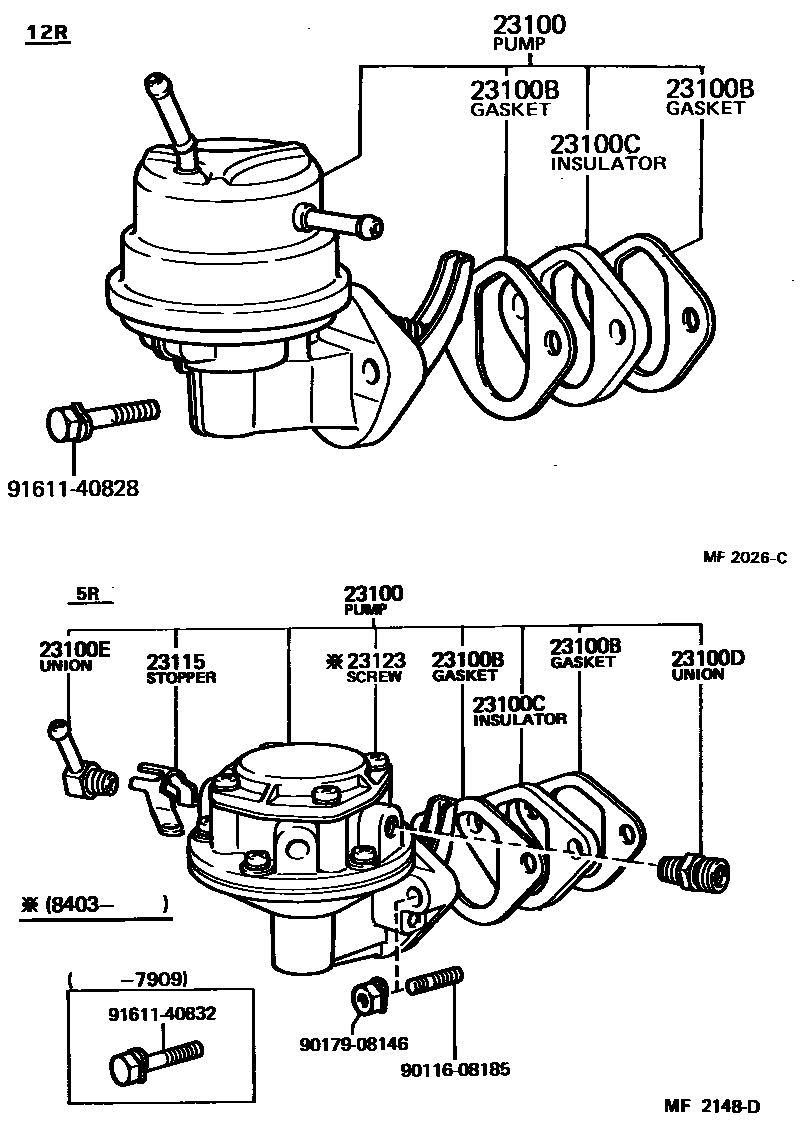

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-39255i12R..RY20197903-198104

main23100-39256i12R..RY2#198104-198507

main23100-49205i5R..RY31197903-198201

main23100-49206i5R..RY32198201-198507

23100BGASKET, FUEL PUMP

main90923-05005×2i12R,5R..RY2#,3#197903-198507

23100CINSULATOR, FUEL PUMP

main90923-06001i12R,5R..RY2#,3#197903-198507

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main90404-13105i5R..RY3#197903-198507

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-31040i5R..RY3#197903-198507

23115STOPPER, UNION NIPPLE

main23115-44060i5R..RY3#197903-198507

23123SCREW, COVER SET, NO.1

main93319-15014×2i5R..RY32198403-198507

L=14

main93319-15016×8i5R..RY32198403-198507

L=16

9011608185

main90116-08185

9017908146

main90179-08146

9161140828

main91611-40828

9161140832

main91611-40832

11 parts on this diagram · 1 diagram in section
