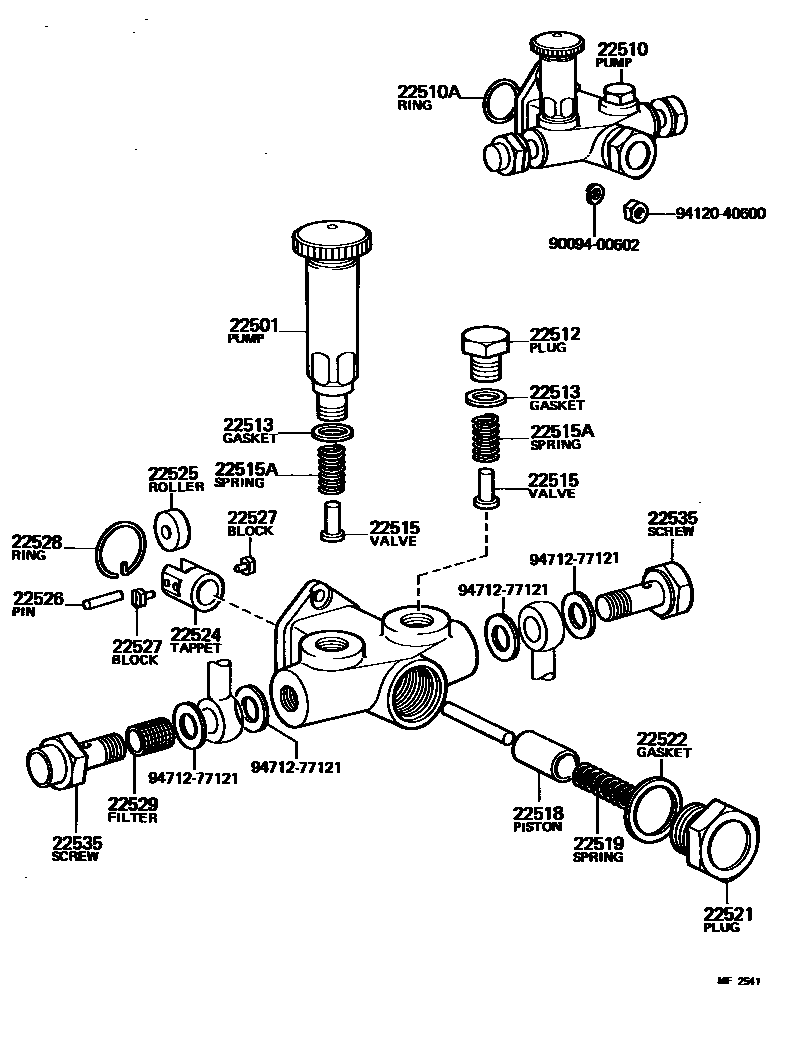

FUEL FEED PUMP

0001 1 0002 1

22501PUMP SUB-ASSY, PRIMING

main22501-77021i2J..JY30; B..BY30197903-198308

22510PUMP ASSY, FUEL FEED

main22510-48032i2J..JY30197903-198308

main22510-56040iB..BY30198009-198308

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015i2J..JY30; B..BY30197903-198308

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020i2J..JY30; B..BY30197903-198308

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i2J..JY30; B..BY30197903-198308

22515VALVE, FEED PUMP CHECK

main22515-77020×2i2J..JY30197903-198308

main22515-77021×2iB..BY30198009-198308

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2i2J..JY30; B..BY30197903-198308

22518PISTON, FEED PUMP

main22518-56010i2J..JY30; B..BY30197903-198308

main22518-56011i2J..JY30; B..BY30197903-198308

main22518-56012i2J..JY30; B..BY30197903-198308

main22518-56013i2J..JY30; B..BY30197903-198308

main22518-77020i2J..JY30; B..BY30197903-198308

22519SPRING, FEED PUMP PISTON

main22519-48010i2J..JY30; B..BY30197903-198308

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77020i2J..JY30197903-198308

main22521-77021iB..BY30198009-198308

22522GASKET, FEED PUMP PISTON PLUG

main22522-77020i2J..JY30; B..BY30197903-198308

22524TAPPET, FEED PUMP

main22524-77021i2J..JY30; B..BY30197903-198308

22525ROLLER, FEED PUMP TAPPET

main22525-77020i2J..JY30; B..BY30197903-198308

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i2J..JY30; B..BY30197903-198308

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i2J..JY30; B..BY30197903-198308

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i2J..JY30; B..BY30197903-198308

22529FILTER, FUEL PUMP

main22529-67010iB..BY30198009-198308

22535SCREW, FUEL PIPE FOLLOW

main22535-46010iB..BY30198009-198308

main90099-18010×2i2J..JY30197903-198308

9009400602

main90094-00602

9412040600

main94120-40600

9471277121

main94712-77121

21 parts on this diagram · 2 diagrams in section
