DISTRIBUTOR

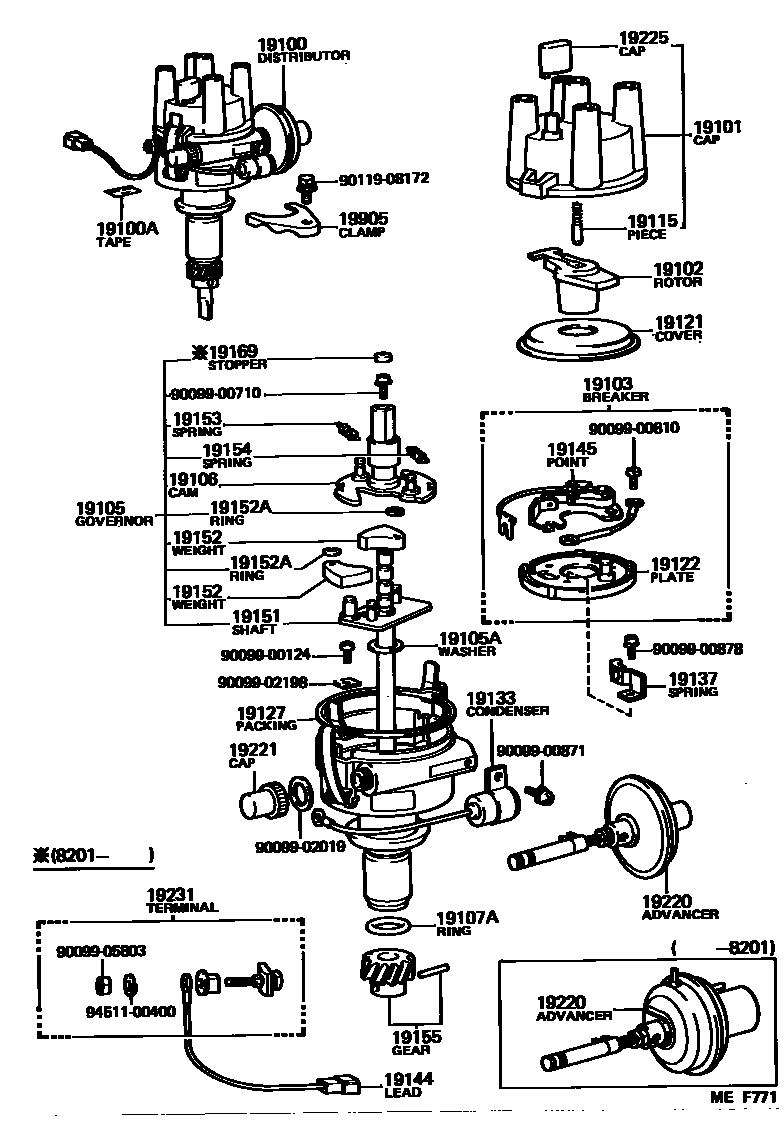

Parts diagram

19100DISTRIBUTOR ASSY

main19100-31090i197903-198201

main19100-31130i198201-198507

main19100-44180i197903-198201

main19100-44240i198201-198507

main19100-44250i198310-198507

LPG PACKAGE

19100ATAPE, SEALING

main90919-24004i197903-198507

L=70

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-25070i197903-198507

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-33012i197903-198507

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-33013i197903-198507

19105GOVERNOR SUB-ASSY

main19105-31090i197903-198201

main19105-31120i198201-198507

main19105-44011i197903-198507

main19105-44250i198310-198507

LPG PACKAGE

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01385i197903-198507

main90099-01386i197903-198507

main90099-01387i197903-198507

main90099-01412i197903-198507

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-31030i198201-198507

main19106-33013i198201-198507

main19106-38011i198310-198507

LPG PACKAGE

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i197903-198507

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i197903-198507

19121COVER, DUST PROOF

main19121-38030i197903-198507

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-33013i197903-198507

19127PACKING, DUST PROOF

main19127-88251i197903-198507

19133CONDENSER, DISTRIBUTOR

main90099-52059i197903-198507

19137SPRING SUB-ASSY, DAMPER

main19137-33012i197903-198507

19144LEAD, DISTRIBUTOR BREAKER

main19144-34180i197903-198507

19145POINT, DISTRIBUTOR

main19145-26060i197903-198507

19151SHAFT, GOVERNOR

main19151-24081i197903-198507

main19151-33011i197903-198507

19152WEIGHT, GOVERNOR

main19152-45060×2i197903-198507

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07014×2i197903-198201

main90099-07109×2i198201-198507

19153SPRING, GOVERNOR, A

main19153-31090i197903-198201

main19153-31120i198201-198507

main19153-44011i197903-198507

main19153-44250i198310-198507

LPG PACKAGE

19154SPRING, GOVERNOR, B

main19154-31090i197903-198201

main19154-31120i198201-198507

main19154-44011i197903-198507

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-31031i197903-198507

main19195-33011i197903-198507

19169STOPPER, CAM GREASE

main19169-32010i198201-198507

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-31090i197903-198201

main19220-31130i198201-198507

main19220-44180i197903-198201

main19220-44240i198201-198507

main19220-44250i198310-198507

LPG PACKAGE

19221CAP, ADJUSTER, DISTRIBUTOR

main19221-30030i197903-198201

19225CAP, RUBBER

main19225-25070i197903-198507

19231TERMINAL, DISTRIBUTOR

main19231-24140i197903-198507

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19905-40010i197903-198507

main19955-33010i197903-198507

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009900878

main90099-00878

9009902019

main90099-02019

9009902198

main90099-02198

9009905803

main90099-05803

9011908172

main90119-08172

9451100400

main94511-00400

39 parts on this diagram · 2 diagrams in section
