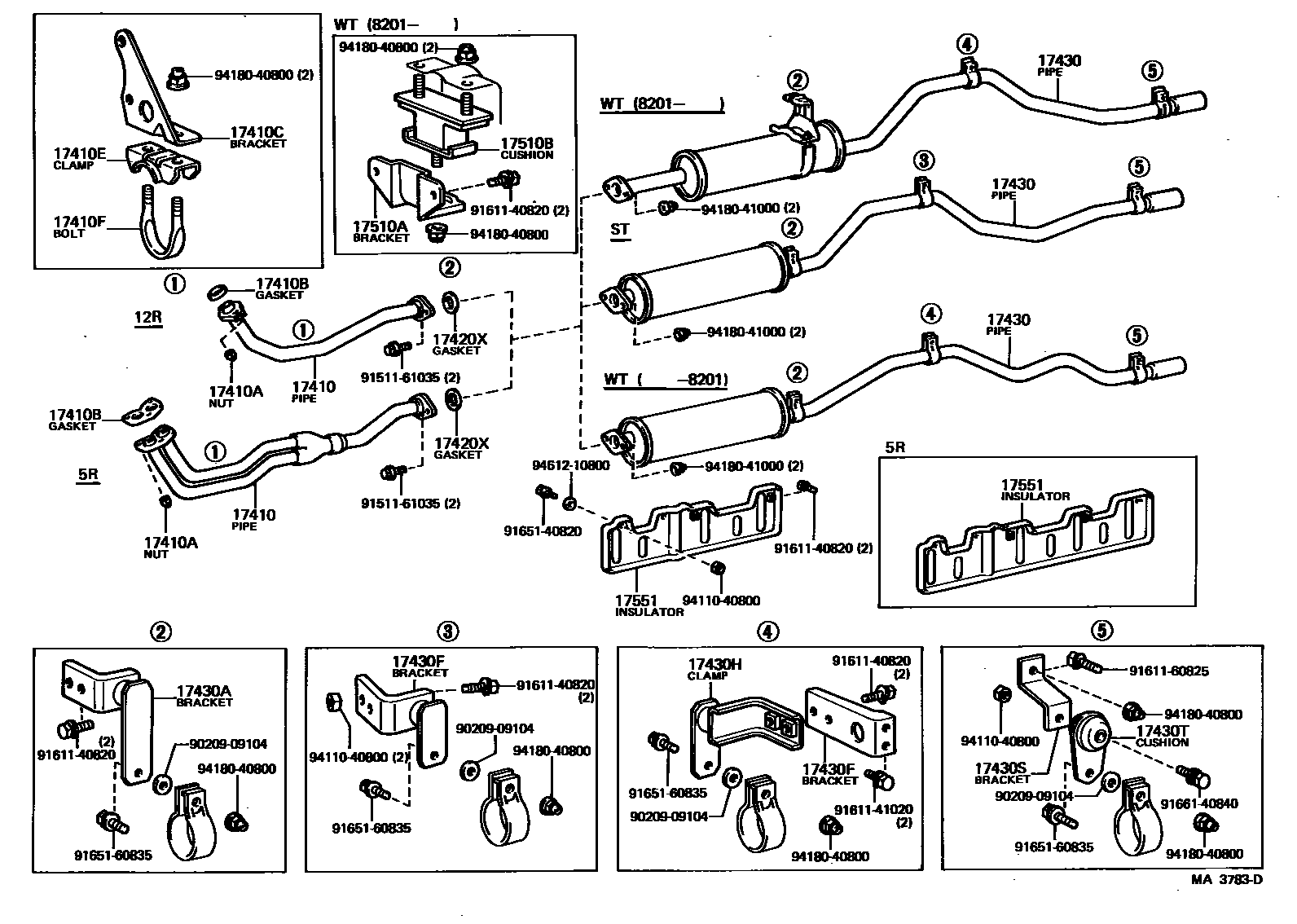

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-31150i12R..RY2#197903-198507

main17401-44110i5R..RY3#197903-198507

main17401-48050i2J..JY30..WT..20T197903-198308

main17401-48060i2J..JY30..15T198004-198308

main17401-54010iL..LY20,30197903-198201

main17410-54160iL,2L..LY2#,3#..ST198201-198507

main17410-56041iB..BY3#..(DMP,T3)..WT198009-198507

main17410-56061iB..BY3#..(DMP,T3)..WT198201-198507

W/EXHAUST BRAKE

main17410-56081iB..BY31..TB..ST;B..BY3#..T1,T2,VPA198009-198507

main17410-56091iB..BY31..TB..ST;B..BY3#..T1,T2,VPA198201-198507

W/EXHAUST BRAKE

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×3iB..BY3#198009-198507

main90179-10118×3i12R,2J..JY30,RY2#; L,2L,5R..LY2#,3#,RY3#197903-198507

17410BGASKET, EXHAUST PIPE

main17451-41010i5R..RY3#197903-198507

main90917-06004iL,12R,2J,2L..JY30,LY2#,3#,RY2#197903-198507

main90917-06012iB..BY3#198009-198507

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-44070i12R,5R..RY2#,3#197903-198507

main17571-48020i2J..JY30..ST197903-198308

main17571-48030i2J..JY30..WT..20T197903-198308

main17571-54020iL..LY20,30197903-198201

main17571-54110iL,2L..LY2#,3#198201-198507

main17571-56050iB..BY3#198009-198507

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04005i5R..RY3#197903-198507

main90917-04021iL,12R,2J,2L..JY30,LY2#,3#,RY2#197903-198507

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90117-08013i5R..RY3#197903-198507

main90117-08205iL,12R,2J,2L..JY30,LY2#,3#,RY2#197903-198507

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004iL,12R,2L,5R..LY2#,3#,RY2#,3#197903-198507

main90917-06008iB,2J..BY3#,JY30197903-198507

17430PIPE ASSY, EXHAUST, TAIL

main17430-31200iL,12R,5R..LY30,RY20,31..ST197903-198201

main17430-31210iL,12R,5R..LY30,RY20,31..WT197903-198201

main17430-31370iL..LY20..WT198201-198308

main17430-31380iL,12R,5R..LY30,RY21,32..WT198201-198308

main17430-31400i12R,2L,5R..LY31,RY21,32..WT198308-198507

main17430-44032iB..BY3#..(DMP,T3)..WT198009-198507

main17430-44220iB..BY31..ST198308-198507

main17430-48010i2J..JY30..WT..20T197903-198308

main17430-48020i2J..JY30..ST197903-198308

main17430-48030i2J..JY30..15T198004-198308

main17430-54020iL..LY20..ST197903-198201

main17430-54031iL..LY20..WT197903-198201

main17430-54250iL..LY20..ST198201-198308

main17430-54260iL..LY30..ST198201-198308

main17430-54450iL,2L..LY2#..ST198308-198507

main17430-54460i2L..LY31..ST198308-198507

main17430-54470iL,2L..LY2#..WT198308-198507

main17430-56081iB..BY3#..(DMP,T3)..WT198201-198507

W/EXHAUST BRAKE

main17430-56220iB..BY31..ST198308-198507

W/EXHAUST BRAKE

main17430-56330iB..BY30..VPA198009-198201

main17430-56350iB..BY3#..T2198201-198507

main17430-56360iB..BY3#..T2198201-198507

W/EXHAUST BRAKE

main17430-56370iB..BY3#..VPA198201-198507

main17430-56380iB..BY3#..VPA198201-198507

W/EXHAUST BRAKE

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17561-31100i12R,5R..RY21,32..ST198201-198507

main17561-54020iL,2L..LY3#..ST198201-198507

main17572-54110i2L..LY21..ST198308-198507

main17573-44041iB..BY3#..(DMP,T3)..WT198009-198507

main17573-48060i2J..JY30..ST197903-198308

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17563-31070i12R,5R..RY21,32..ST198201-198507

main17563-54030iL,2L..LY2#,3#..ST198201-198507

main17572-31040iL,12R,2L,5R..LY2#,3#,RY2#,3#..WT197903-198507

17430HCLAMP NO.1, EXHAUST TAILPIPE(FOR CENTER)

main17508-56010iB..BY3#..T2,VPA198009-198507

main17563-31080iL,12R,2L,5R..LY2#,3#,RY2#,3#..WT197903-198507

main90917-04021i2J..JY30197903-198308

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17573-44020iL,12R,2L,5R..LY2#,3#,RY2#,3#197903-198507

main17573-44050i2J..JY30..WT..20T197903-198308

main17574-44021iB..BY3#..(DMP,T3)..WT198009-198507

main17574-44060iB..BY31..ST198308-198507

main17574-44070iB..BY3#..T2198201-198507

main17574-56040i2J..JY30..ST197903-198308

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main90917-08004i2J..JY30..20T; L,12R,5R..LY20,30,RY20,31197903-198201

main90917-08009iL,12R,2L,5R..LY2#,3#,RY21,32198201-198507

17510ABRACKET, MUFFLER, FRONT

main17572-31060iL,12R,2L,5R..LY3#,RY21,32..WT198201-198507

main17572-44032iB..BY3#..(DMP,T3)..WT198009-198507

main17572-48010i2J..JY30..15T198004-198308

main17572-56080iB..BY3#..T2,VPA198009-198507

main17576-56030i2J..JY30..20T197903-198308

17510BCUSHION, MUFFLER, FRONT

main17562-56010i2J..JY30..15T198004-198308

main17567-56010iL,12R,2L,5R..LY3#,RY21,32..WT198201-198507

main90540-14001i2J..JY30..20T197903-198308

LWR

main90540-15003i2J..JY30..20T197903-198308

UPR

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-25020i12R..RY2#197903-198507

main17551-25030i5R..RY3#197903-198507

9020909104

main90209-09104

9151161035

main91511-61035

9161140820

main91611-40820

9161141020

main91611-41020

9161160825

main91611-60825

9165140820

main91651-40820

9165160835

main91651-60835

9166140840

main91661-40840

9411040800

main94110-40800

9418040800

main94180-40800

9418041000

main94180-41000

9461210800

main94612-10800

28 parts on this diagram · 8 diagrams in section
