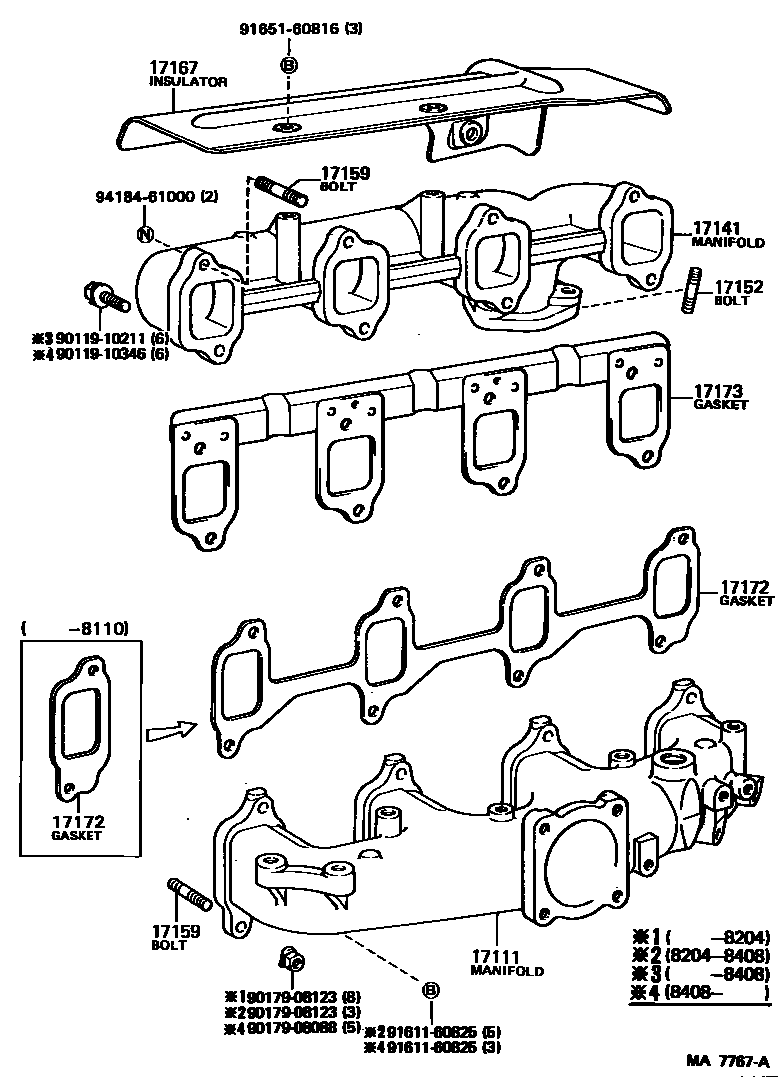

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

17111MANIFOLD, INTAKE

main17101-54011iL..LY20,30197903-198201

main17101-54030iL,2L..LY2#,3#198201-198507

main17111-48020i2J..JY30197903-198201

main17111-48040i2J..JY30198201-198308

main17111-56070iB..BY30198009-198201

sub17111-56110

main17111-56090iB..BY30198201-198302

sub17111-56140

main17111-56140iB..BY3#198302-198507

sub17111-56170

17141MANIFOLD, EXHAUST

main17141-48010i2J..JY30197903-198308

main17141-54011iL..LY20,30197903-198204

sub17141-54012

main17141-54012iL..LY20,30198204-198311

sub17141-54040

sub90116-10091

main17141-54040iL..LY20198308-198507

main17141-56030iB..BY30198009-198210

sub17141-56031

main17141-56031iB..BY3#198210-198408

main17141-56050iB..BY31198408-198507

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10027i5R..RY3#197907-198207

L=45.4,S=14&20

main90116-10027i5R..RY32198207-198507

L=43.5,S=14&22

main90116-10029i2J..JY30197903-198308

L=42,S=16&23

main90116-10042i12R,5R..RY20,31197903-197907

L=37,S=13&24

main90116-10042i12R..RY2#197907-198507

L=37,S=13&20

main90116-10048iB..BY3#198203-198408

L=40,S=19&12

sub90116-10093

main90116-10055iB..BY30198009-198203

L=40,S=17&17

sub90116-10048

main90116-10056iB..BY31198408-198507

sub90116-10087

main90116-10071iL..LY20,30198207-198302

L=47.4,S=14&22

main90116-10088iL,2L..LY2#,3#198302-198507

L=47.4,S=14&22

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08013i2J..JY30197903-198112

INTAKE MANIFOLD

main90116-08017i2J..JY30197903-198005

EXHAUST MANIFOLD

main90116-08053iL..LY20,30197903-198204

main90116-08053iL,2L..LY2#,3#198204-198504

INTAKE MANIFOLD SIDE

main90116-08125i2J..JY30198005-198308

EXHAUST MANIFOLD

main90116-08131i2J..JY30198112-198308

INTAKE MANIFOLD

main90116-08220iL,2L..LY2#,31198504-198507

INTAKE MANIFOLD SIDE

main90116-10027iL..LY20,30198204-198207

EXHAUST MANIFOLD SIDE

main90116-10048iB..BY3#198108-198403

EXAUST MANIFOLD

sub90116-10093

main90116-10071iL..LY20,30198207-198302

EXHAUST MANIFOLD SIDE

main90116-10088iL..LY20,30198302-198311

EXHAUST MANIFOLD SIDE

main90116-10091i2L..LY21,31198308-198507

EXHAUST MANIFOLD SIDE

sub90116-10141

main90116-10098iB..BY31198403-198507

EXAUST MANIFOLD

sub90116-10063

main92122-61028iB..BY30198009-198108

EXAUST MANIFOLD

main92132-60822iB..BY3#198009-198408

INTAKE MANIFOLD

main92132-60825iB..BY31198408-198507

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-44010i5R..RY32..(T2,T3)..CBU198310-198507

LPG PACKAGE

main17167-56020iB..BY3#198009-198408

sub17167-56022

main17167-56022iB..BY31198408-198507

sub17167-56023

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-31021i12R..RY2#197903-198507

sub17172-31030

main17172-44011i5R..RY3#197903-198507

main17172-46011i2J..JY30197903-198308

sub17171-48000

main17172-56020iB..BY30198009-198110

sub17172-56021

main17172-56021iB..BY3#198110-198408

sub17172-56022

main17172-56022iB..BY31198408-198507

sub17171-56010

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-48010i2J..JY30197903-198308

sub17173-48011

main17173-54010iL..LY20,30197903-198204

sub17173-54011

main17173-54011iL,2L..LY2#,3#198204-198507

sub17173-54012

main17173-56020iB..BY30198009-198208

sub17173-56021

main17173-56021iB..BY30198208-198301

sub17173-56022

main17173-56022iB..BY3#198301-198408

main17173-58010iB..BY31198408-198507

9011910211

main90119-10211

9011910346

main90119-10346

9017908088

main90179-08088

9017908123

main90179-08123

9161160825

main91611-60825

9165160816

main91651-60816

9418461000

main94184-61000

14 parts on this diagram · 5 diagrams in section
