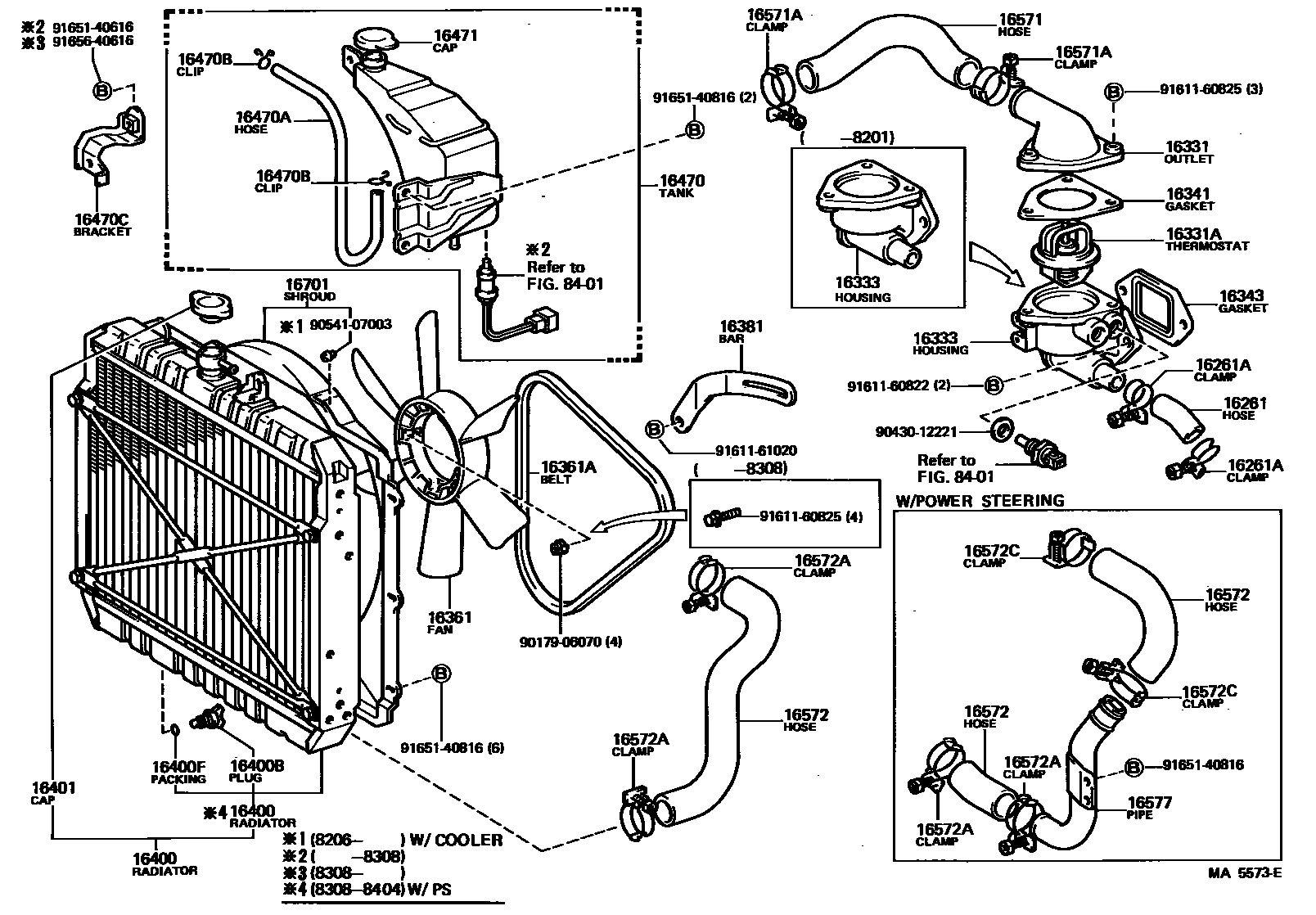

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

16261HOSE, WATER BY-PASS

main16261-44010i5R..RY3#197903-198507

main16261-48010i2J..JY30197903-198308

main16261-56011iB..BY30198009-198208

main16261-56012iB..BY3#198208-198507

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053×2iB..BY3#198009-198507

main96112-10240×2i2J..JY30198011-198308

main96112-10250×2i5R..RY31198011-198102

16331OUTLET, WATER

main16331-31082i12R..RY2#197903-198507

main16331-44100i5R..RY31197903-198201

main16331-44120i5R..RY32198201-198507

main16331-46010i2J..JY30197903-198308

main16331-54010iL..LY20,30197903-198308

main16331-54030iL,2L..LY2#,31198308-198507

main16331-56020iB..BY3#198009-198507

16331ATHERMOSTAT

main90916-03034i12R,5R..RY2#,3#; 2J..JY30197903-198202

*WAX 82-95,*(F)

main90916-03036i2J..JY30; 5R..RY32198202-198210

COLD SPEC,*WAX 88-100,*(F)

main90916-03037i5R..RY32198202-198210

*WAX 82-95,KUZEH

main90916-03039iB..BY30198009-198010

main90916-03040i5R..RY32198202-198210

COLD SPEC,*WAX 88-100,KUZEH

main90916-03042iL..LY20,30197903-198110

*WAX 82-95,FUJI-THOMSON

main90916-03043iL..LY20,30197903-198110

COLD SPEC,*WAX 88-100,*(F)

main90916-03045iB..BY30198009-198010

main90916-03054i2J..JY30; 5R..RY32198210-198507

main90916-03055i2J..JY30; 5R..RY32198210-198507

main90916-03058iB..BY30198010-198204

main90916-03059iB..BY3#198010-198507

main90916-03061iL..LY20,30198110-198308

*WAX 82-95,FUJI-THOMSON

main90916-03062iL..LY20,30198110-198308

main90916-03066iB..BY3#198204-198408

16333HOUSING, WATER OUTLET

main16333-44012i5R..RY3#197903-198507

main16333-48011i2J..JY30197903-198308

main16333-54010iL..LY20,30197903-198008

main16333-54011iL..LY20,30198008-198308

main16333-54050iL,2L..LY2#,31198308-198507

main16333-56040iB..BY30198009-198201

main16333-56050iB..BY3#198201-198408

main16333-56060iB..BY31198408-198507

16341GASKET, WATER OUTLET

main16341-38010i12R,5R..RY20,31; L..LY20,30197903-198006

main16341-38011i12R..RY21198201-198507

main16341-41010i5R..RY3#198006-198205

main16341-46010i2J..JY30197903-198308

main16341-54011iL,2L..LY2#,31198308-198507

main16341-54020iL..LY20,30198304-198308

main16341-56020iB..BY3#198009-198507

16343GASKET, WATER OUTLET HOUSING

main16343-44010i5R..RY3#197903-198507

main16343-46010i2J..JY30197903-198308

main16343-54010iL..LY20,30197903-198008

main16343-54011iL,2L..LY2#,3#198008-198507

main16343-56020iB..BY3#198009-198507

16361FAN

main16361-26020i5R..RY3#197903-198507

4 BLADES

main16361-31021i12R..RY2#197903-198507

4 BLADES

main16361-31050i12R..RY2#197903-198507

5 BLADES,W/COOLER

main16361-34030iL..LY20,30197907-198507

7 BLADES

main16361-38010iB..BY31198308-198507

main16361-41050iL..LY20,30197903-197907

7 BLADES

main16361-44031i5R..RY3#197903-198507

5 BLADES, W/COOLER

main16361-48030i2J..JY30197903-198308

6 BLADES

main16361-54010i2L..LY21,31198308-198507

main16361-56030iL..LY20,30197903-198507

W/COOLER

main16361-56040iB..BY30198009-198308

6BLADES,W/COOLER,OD=410

main16361-56050iB..BY30198201-198308

6 BLADES,W/PS,OD=380

main16361-56060iB..BY30198201-198308

6 BLADES,W/PS & COOLER,OD=410

main16361-56070iB..BY31198308-198507

W/COOLER

main16361-60090i2J..JY30197903-198308

6 BLADES,W/COOLER

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02073i2J..JY30197903-198308

main90916-02132i2L..LY21,31198308-198507

main90916-02133iL..LY20,30198211-198507

main99322-00890i12R..RY2#197903-198507

main99322-00900i12R..RY2#..T2,T3197903-198507

main99322-00930i5R..RY3#197903-198507

main99332-00985iL..LY20,30197903-198204

main99332-10985iL..LY20,30198204-198207

main99332-11000iL..LY20,30198207-198211

main99343-01195iBY3#198009-198507

16381BAR, FAN BELT ADJUSTING

main16381-30021i12R..RY2#..T2,T3197903-198507

ALTERNATOR(12V,40A)

main16381-31012i12R..RY2#197903-198507

main16381-44011i5R..RY3#197903-198507

main16381-48011i2J..JY30197903-198308

main16381-54011iL,2L..LY2#,3#197903-198507

main16381-56030iB..BY3#198009-198507

16400RADIATOR ASSY

main16400-31270i12R..RY2#197903-198507

main16400-44190i5R..RY3#197903-198507

main16400-49375i2J..JY30197903-198308

main16400-49385i2J..JY30197903-198308

COLD SPEC

main16400-54020iL..LY20,30197903-198308

main16400-54030iL..LY20,30197903-198308

COLD SPEC

main16400-54350i2L..LY21,31198404-198507

main16400-54360i2L..LY21,31198404-198507

W/PS

main16400-56041iB..BY30198009-198308

main16400-56090iB..BY31198308-198507

main16400-56140iB..BY30198201-198308

W/POWER STEERING

main16400-56141iB..BY31198404-198408

W/POWER STEERING

main16410-54350i2L..LY21,31198308-198404

main16410-54360i2L..LY21,31198308-198404

W/PS

main16410-56141iB..BY31198308-198404

W/POWER STEERING

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i12R,5R..RY2#,3#; 2J..JY30; B..BY3#; L,2L..LY2#,3#197903-198507

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i12R,5R..RY2#,3#; 2J..JY30; B..BY3#; L,2L..LY2#,3#197903-198507

16401CAP SUB-ASSY, RADIATOR

main16401-41021i12R,5R..RY2#,3#; 2J..JY30; B..BY3#; L,2L..LY2#,3#197903-198507

16470TANK ASSY, RADIATOR RESERVE

main16470-44040i12R,5R..RY20,31197903-198007

W/OK-MONITOR

main16470-48040i2J..JY30197903-198201

main16470-48070i2J..JY30197903-198308

W/OK-MONITOR

main16470-54010iL,2L..LY2#,3#197903-198507

main16470-54020iL..LY20,30197903-198007

W/OK-MONITOR

main16470-56070i12R,5R..RY20,31197903-198008

main16470-56071i12R,5R..RY2#,3#198008-198507

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85371-25010iL,2L..LY2#,3#197908-198507

main90445-12897i12R,5R..RY2#,3#; 2J..JY30; B..BY3#197903-198507

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i12R,5R..RY2#,3#; 2J..JY30; B..BY3#; L,2L..LY2#,3#197903-198507

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-54010iL,2L..LY2#,3#197903-198507

main16611-48020i2J..JY30197903-198308

main16611-56020i12R,5R..RY2#,3#; B..BY3#197903-198507

main88892-25010iL..LY20,30197903-198507

W/COOLER

16471CAP SUB-ASSY, RESERVE TANK

main16471-34030i12R,5R..RY2#,3#; 2J..JY30; B..BY3#; L,2L..LY2#,3#197903-198507

16571HOSE, RADIATOR, INLET

main16571-44090i5R..RY3#197903-198507

main16571-48040i2J..JY30197903-198308

main16571-54020iL..LY20,30197903-198507

main16571-54180i2L..LY21,31198308-198507

main16571-56020iB..BY3#198009-198507

main16572-31110i12R..RY2#197903-198507

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016×2iB..BY3#198009-198408

ID=50

main90467-37001i12R,5R..RY20,31; L..LY20,30197903-198008

OUTLET SIDE,ID=37

main90467-42001×2iB..BY31198408-198507

main96111-10430iL..LY20,30197903-198008

RADIATOR SIDE,ID=43

main96111-10440i12R,5R..RY20,31197903-198009

RADIATOR SIDE,ID=44

main96111-10460×2i2J..JY30197903-198003

ID=46

16572HOSE, RADIATOR, OUTLET

main16571-31080i12R..RY2#197903-198507

main16571-44100i5R..RY3#197903-198507

ENGINE SIDE

main16572-48050i2J..JY30197903-198308

main16572-54020iL..LY20,30197903-198507

main16572-54180i2L..LY21,31198308-198507

main16572-54190i2L..LY21,31198308-198507

W/PS,WATER PUMP SIDE

main16572-56030iB..BY30198009-198308

main16572-56040iB..BY31198308-198408

main16572-56050iB..BY3#198201-198408

W/PS,WATER PUMP SIDE

main16572-56080iB..BY31198408-198507

WATER PUMP SIDE

main16573-54040i2L..LY21,31198308-198507

W/PS,RADIATOR SIDE

main16573-56010iB..BY3#198201-198408

W/PS,RADIATOR SIDE

main16573-56030iB..BY31198408-198507

RADIATOR SIDE

main90916-01157i5R..RY3#197903-198507

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016iB..BY3#198009-198408

RADIATOR SIDE OR PIPE SIDE

main90460-55021i2J..JY30197903-198308

PUMP SIDE,ID=55

main96111-10440i2J..JY30198003-198308

RADIATOR SIDE,ID=44

main96111-10450iL..LY20,30197903-198006

RADIATOR SIDE,ID=45

main96111-10460iL,2L..LY2#,3#198006-198507

RADIATOR SIDE OR PIPE SIDE

main96111-10500iL,2L..LY2#,3#197903-198507

PUMP SIDE

main96111-10560iB..BY3#198009-198408

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-50016×2iB..BY3#198201-198408

W/PS,ID=50

main96111-10460×2i2L..LY21,31; 5R..RY3#197903-198507

ID=46

main96111-10500iB..BY31198408-198507

PIPE SIDE

main96111-10560iB..BY31198408-198507

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-44120i5R..RY3#197903-198507

main16577-54090i2L..LY21,31198308-198507

W/POWER STEERING

main16577-56010iB..BY3#198201-198408

W/POWER STEERING

main16577-56030iB..BY31198408-198507

16701SHROUD SUB-ASSY, FAN

main16701-56051iB..BY30198009-198308

main16701-56061iB..BY30198009-198308

W/COOLER

main16701-56141iB..BY30198201-198308

W/POWER STEERING

main16701-56151iB..BY30198201-198308

W/POWER STEERING & W/COOLER

main16701-56260iB..BY31198308-198408

main16701-56261iB..BY31198408-198507

main16701-56270iB..BY31198308-198408

W/COOLER

main16701-56271iB..BY31198408-198507

W/COOLER

main16711-31140i12R..RY2#197903-198507

UPR

main16711-31150i12R..RY2#197903-198507

UPR,W/COOLER

main16711-44020i5R..RY3#197903-198507

UPR

main16711-44030i5R..RY3#197903-198507

UPR,W/COOLER

main16711-48040i2J..JY30197903-198308

UPR

main16711-48050i2J..JY30197903-198308

UPR,W/COOLER

main16711-54020iL..LY20,30197903-198507

UPR

main16711-54160i2L..LY21,31198308-198507

UPR

main16712-31040i12R..RY2#197903-198507

LWR

main16712-31050i12R..RY2#197903-198507

LWR,W/COOLER

main16712-44020i5R..RY3#197903-198507

LWR

main16712-44030i5R..RY3#197903-198507

LWR,W/COOLER

main16712-48010i2J..JY30197903-198308

LWR

main16712-48020i2J..JY30197903-198308

LWR,W/COOLER

main16712-54020iL..LY20,30197903-198507

LWR

main16712-54120i2L..LY21,31198308-198507

LWR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906070

main90179-06070

9043012221

main90430-12221

9054107003

main90541-07003

9161160822

main91611-60822

9161160825

main91611-60825

9161161020

main91611-61020

9165140616

main91651-40616

9165140816

main91651-40816

9165640616

main91656-40616

36 parts on this diagram · 8 diagrams in section
