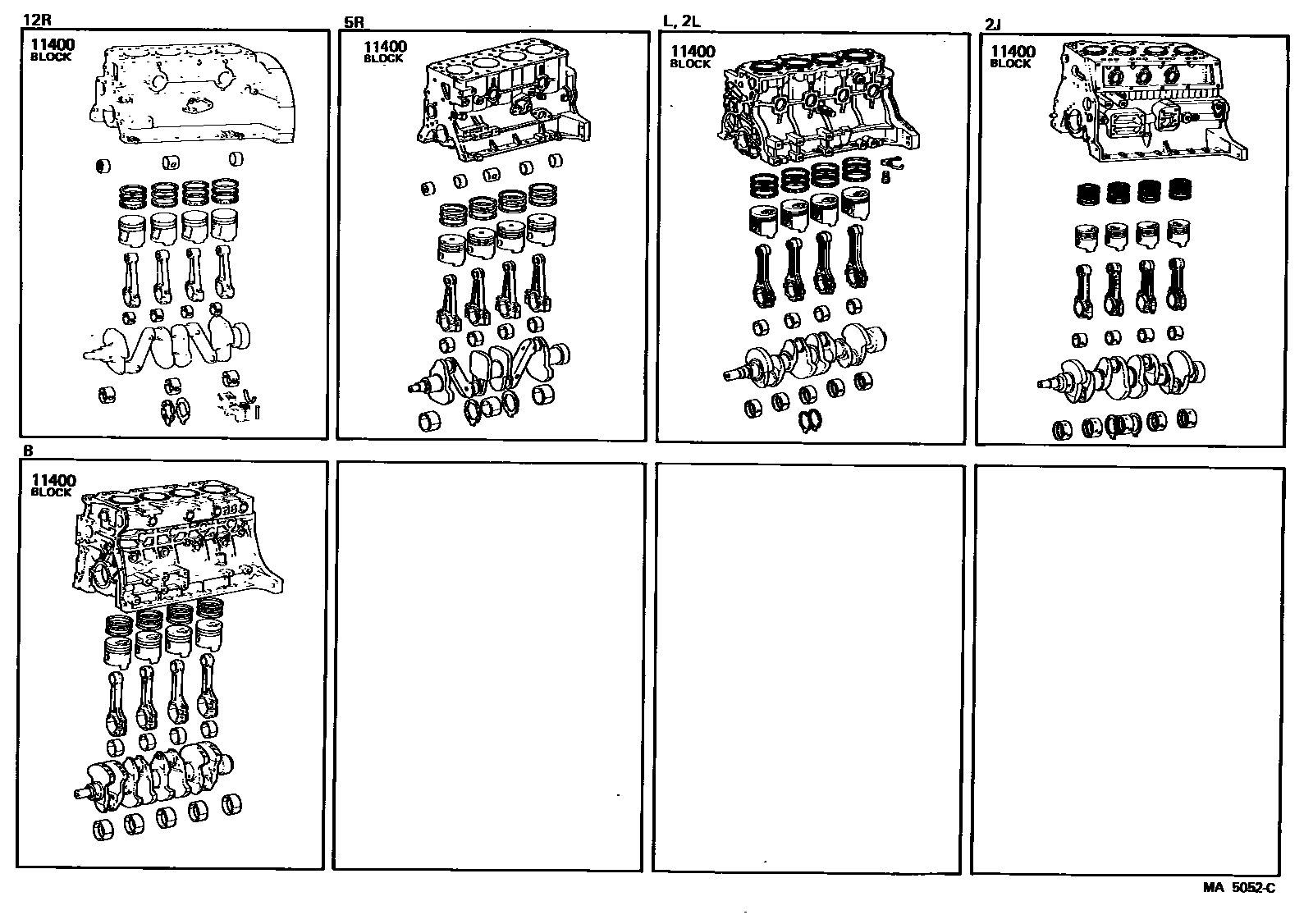

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-31030i12R..RY2#197903-198507

main11400-48016i2J..JY30197903-198105

main11400-48017i2J..JY30198105-198204

main11400-48018i2J..JY30198204-198308

main11400-49035i5R..RY3#197903-198507

main11400-54010iL..LY20,30197903-198105

main11400-54011iL..LY20,30198105-198107

main11400-54013iL..LY20198308-198408

main11400-54014iL..LY20198408-198507

main11400-54020iL..LY20,30198107-198201

main11400-54021iL..LY20,30198202-198308

main11400-54030iL..LY20,30198201-198202

main11400-54060i2L..LY21,31198308-198407

main11400-54061i2L..LY21,31198407-198507

main11400-56020iB..BY30198009-198201

main11400-56021iB..BY30198201-198209

main11400-56022iB..BY3#198209-198408

main11400-56040iB..BY31198408-198507

1 parts on this diagram · 1 diagram in section
