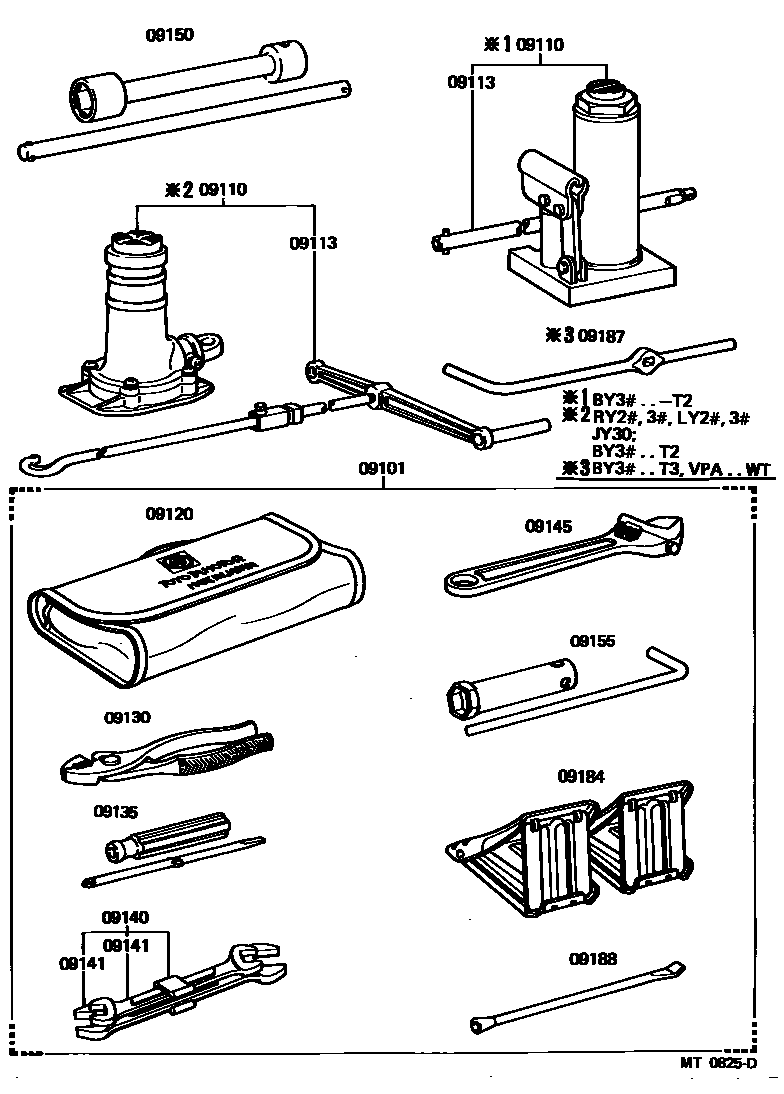

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-25010iRY2#,3#197903-198205

main09102-25020iBY30,JY30,LY20,30197903-198205

main09102-25053iBY3#,JY30,LY2#,3#198205-198507

main09102-25055iRY21,32198205-198507

09110JACK ASSY

main09110-25040iLY20,30,RY2#,3#197903-198211

main09110-25050iJY30197903-198211

main09110-25060iBY31..DMP198308-198507

main09110-36031iBY31..ST198308-198507

main09110-36042iBY3#..(T3,VPA)..WT198009-198507

main09110-36110iBY3#..T2198201-198507

09113HANDLE, JACK

main09113-25030iLY20,30,RY2#,3#197903-198211

main09113-25031iJY30,LY2#,3#,RY21,32198211-198507

main09113-25040iJY30197903-198211

main09113-25041iBY3#..T2198201-198507

main09113-36060iBY3#..(T3,VPA)..WT198009-198507

09120BAG, TOOL

main09120-36020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

09130PLIERS

main09130-00010iBY30,JY30,LY20,30,RY2#,3#197903-198205

main99913-11500iBY3#,JY30,LY2#,3#,RY21,32198205-198507

09135DRIVER, SCREW

main99915-10700iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

09140SPANNER SET

main09140-27010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

09141SPANNER

main99914-11012iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

main99914-11417iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

09145WRENCH, MONKEY

main99911-10200iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

09150WRENCH, HUB NUT BOX

main09150-25010iLY2#,3#,RY2#,3#197903-198507

main09150-25020iJY30197903-198201

main09150-55010iJY30..15T198201-198308

09155WRENCH, SPARK PLUG

main09155-44010iRY2#,3#197903-198507

09184STOPPER, WHEEL

main09184-00031×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

09187HANDLE, SPARE WHEEL CARRIER

main09187-36060iBY30..T3,VPA198009-198205

main09187-36070iBY3#..(T3,VPA)..WT198205-198507

09188WRENCH, VALVE CAP

main09188-00020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

14 parts on this diagram · 1 diagram in section
