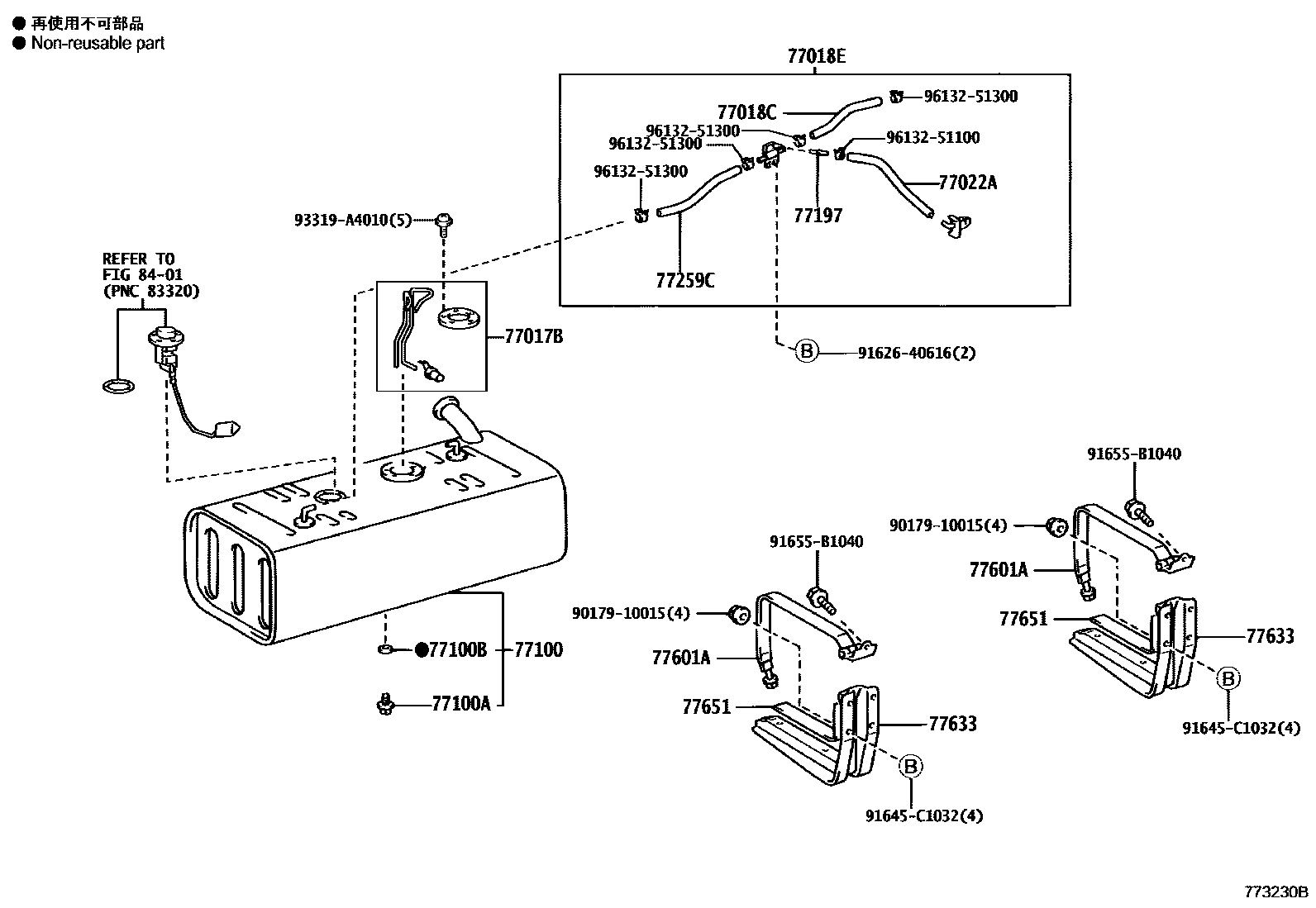

FUEL TANK & TUBE

0001 1�������� 0002 1����������

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37060iXZU282201203

77018CHOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)

main95333-08030iXZU282201203

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-37120iXZU282201203

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iXZU282201203

sub95338-06030

77100TANK ASSY, FUEL

main77001-37540iXZU282201203

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU282201203-201212

77100BGASKET(FOR FUEL TANK)

main90430-12245iXZU282201203

77197ORIFICE, FUEL VAPOR

main90977-02001iXZU282201203

77259CHOSE, FUEL

main77259-60380iXZU282201203

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-37010iXZU282201203

77633STAY, FUEL TANK

main77633-37140iXZU282201203

77651PACKING, FUEL TANK BRACKET

main77651-36110iXZU282201203

8401

9017910015

main90179-10015

9162640616

main91626-40616

91645C1032

main91645-C1032

91655B1040

main91655-B1040

93319A4010

main93319-A4010

9613251100

main96132-51100

9613251300

main96132-51300

20 parts on this diagram · 2 diagrams in section
