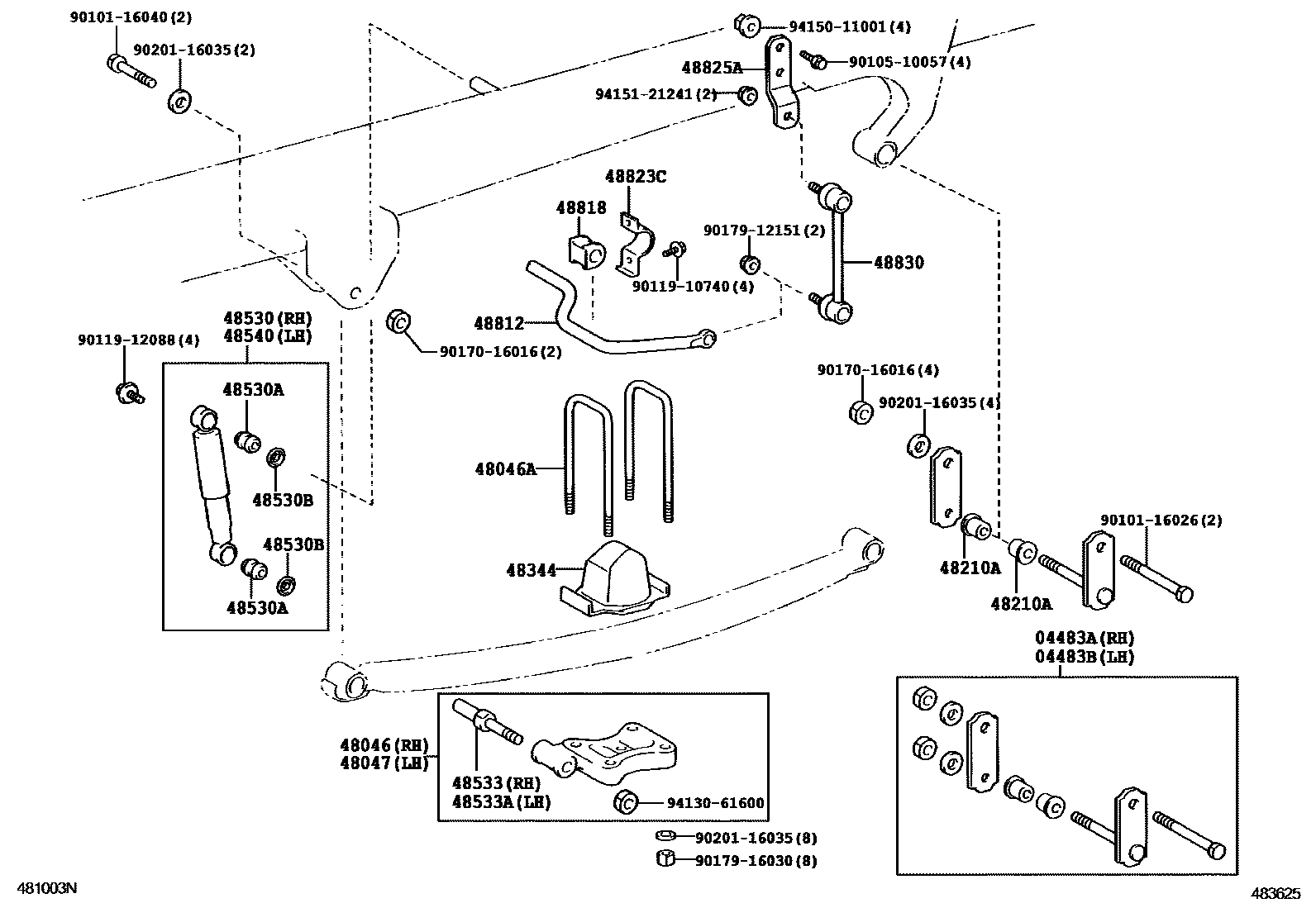

REAR SPRING & SHOCK ABSORBER

0001 1 0002 12-LEAF

04483ASHACKLE KIT, REAR SPRING, RH

main04483-36140iXZU282201203

04483BSHACKLE KIT, REAR SPRING, LH

main04483-36140iXZU282201203

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37170iXZU282201203

48046ABOLT, U(FOR REAR SPRING)

main90117-16007×4iXZU282201203

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-37170iXZU282201203

48210SPRING ASSY, REAR RH

main48210-37C70iXZU282201203

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002×4iXZU282201203

48344STOPPER, BUMPER, REAR

main48344-37260×2iXZU282201203

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80715iXZU282201203

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19006×4iXZU282201203

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×4iXZU282201203

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030iXZU282201203

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-37030iXZU282201203

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80715iXZU282201203

48812BAR, STABILIZER, REAR

main48812-37050iXZU282201203

48818BUSH, STABILIZER, REAR

main48815-37060×2iXZU282201203

48823CCOVER, REAR STABILIZER BRACKET

main48823-37011×2iXZU282201203

48825ABRACKET, REAR STABILIZER END

main48825-37030×2iXZU282201203

48830LINK ASSY, REAR STABILIZER

main48830-37020×2iXZU282201203

9010116026

main90101-16026

9010116040

main90101-16040

9010510057

main90105-10057

9011910740

main90119-10740

9011912088

main90119-12088

9017016016

main90170-16016

9017912151

main90179-12151

9017916030

main90179-16030

9020116035

main90201-16035

9413061600

main94130-61600

9415011001

main94150-11001

9415121241

main94151-21241

31 parts on this diagram · 2 diagrams in section
