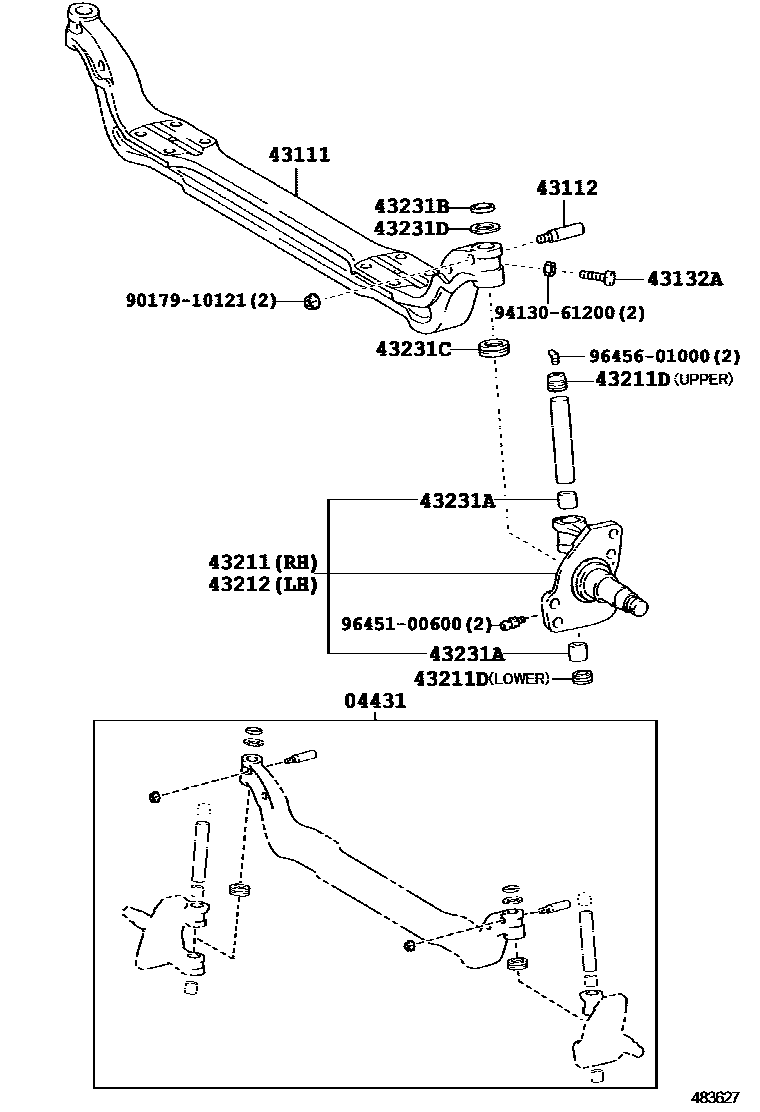

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-37480iXZU282201203

43111I BEAM, FRONT AXLE

main43111-37031iXZU282201203

43112PIN, KING PIN LOCK

main43112-36020×2iXZU282201203

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12008×2iXZU282201203

43211KNUCKLE, STEERING, RH

main43201-37110iXZU282201203

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003×2iXZU282201203

main90345-33004×2iXZU282201203

43212KNUCKLE, STEERING, LH

main43202-37110iXZU282201203

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086×4iXZU282201203

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003×2iXZU282201203

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iXZU282201203

43231DSHIM (FOR KING PIN)

main90564-28001iXZU282201203

main90564-28002iXZU282201203

main90564-28003iXZU282201203

main90564-28004iXZU282201203

main90564-28005iXZU282201203

main90564-28006iXZU282201203

main90564-28007iXZU282201203

main90564-28008iXZU282201203

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

15 parts on this diagram · 1 diagram in section
