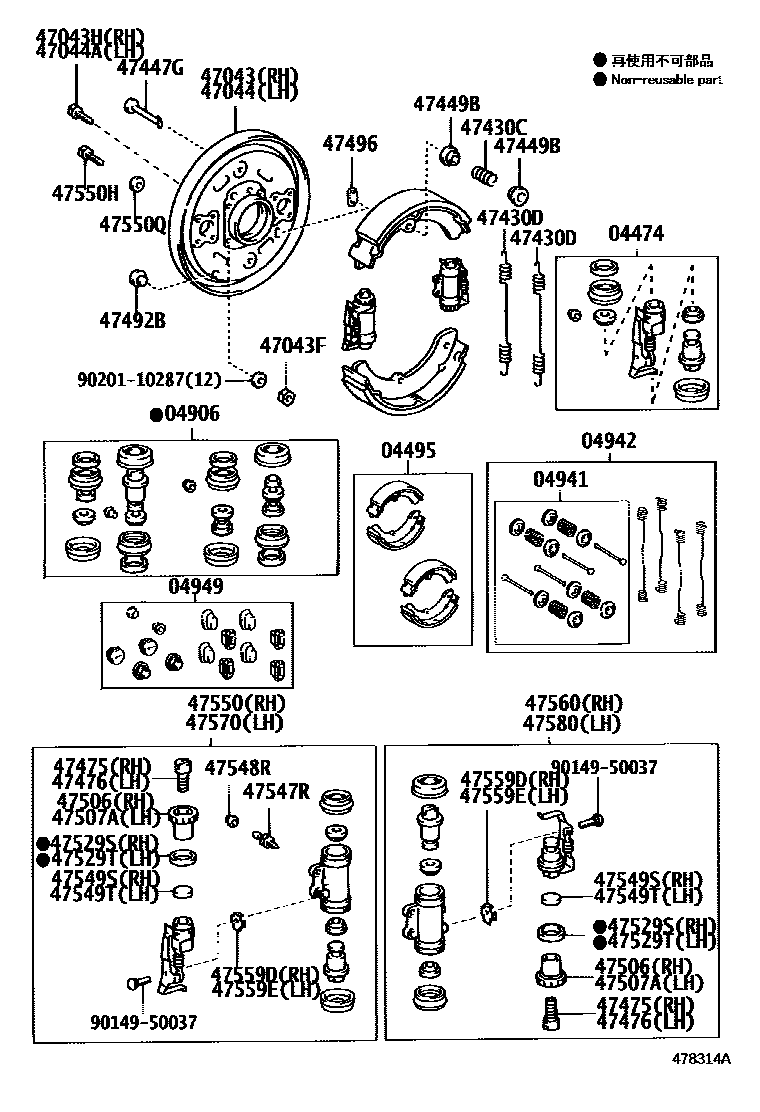

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04468-37040iXZU282201203

main04474-37250iXZU282201203

04495SHOE KIT, REAR BRAKE

main04494-36280iXZU282201203

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36211iXZU282201203

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-25030iXZU282201203

04942SPRING KIT, REAR BRAKE

main04942-25040iXZU282201203

04949PLUG KIT, REAR BRAKE

main04949-25040iXZU282201203

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-37050iXZU282201203

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002×12iXZU282201203-201212

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10063×6iXZU282201203-201212

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-37050iXZU282201203

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10063×6iXZU282201203-201212

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iXZU282201203

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×4iXZU282201203

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-35020×4iXZU282201203

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iXZU282201203

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36070×2iXZU282201203

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36070×2iXZU282201203

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×4iXZU282201203

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36020×8iXZU282201203

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020×2iXZU282201203

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020×2iXZU282201203

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010×2iXZU282201203

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010×2iXZU282201203

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020×2iXZU282201203

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iXZU282201203

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091×2iXZU282201203

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091×2iXZU282201203

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37101iXZU282201203

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iXZU282201203

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iXZU282201203

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010×2iXZU282201203

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010×2iXZU282201203

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-37072iXZU282201203

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37061iXZU282201203

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-37062iXZU282201203

9014950037

main90149-50037

9020110287

main90201-10287

37 parts on this diagram · 1 diagram in section
