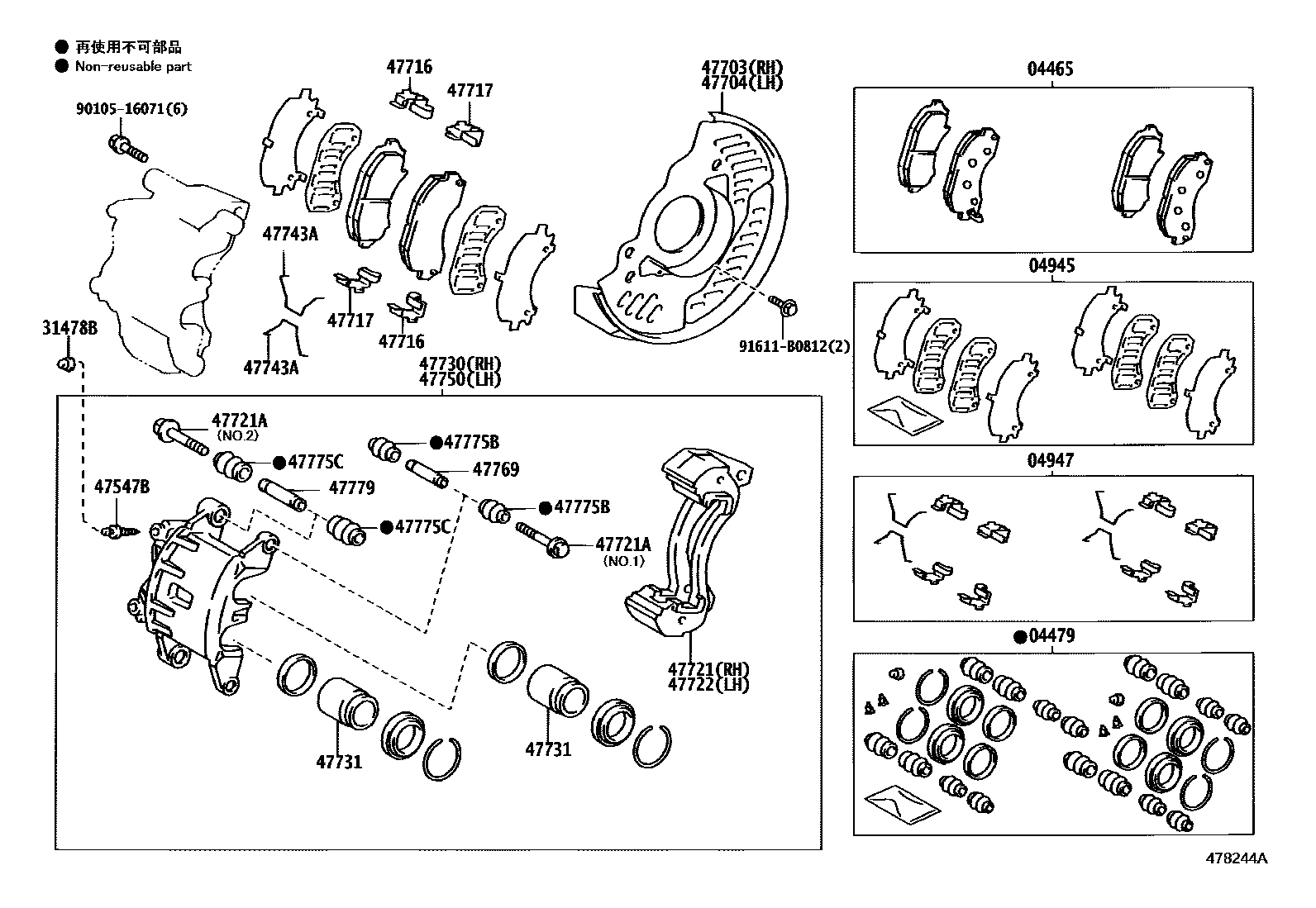

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-37050iXZU282201203

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-37010iXZU282201203

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37020iXZU282201203

04947FITTING KIT, DISC BRAKE, FRONT

main04947-36020iXZU282201203

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXZU282201203

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXZU282201203

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXZU282201203-201212

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iXZU282201203-201212

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iXZU282201203

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iXZU282201203

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37020iXZU282201203

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08B87×4iXZU282201203

main90119-12256×4iXZU282201203

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-37010iXZU282201203

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37020iXZU282201203

47731PISTON, FRONT DISC BRAKE

main47731-37010×4iXZU282201203

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXZU282201203

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37020iXZU282201203

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXZU282201203

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iXZU282201203

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iXZU282201203

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iXZU282201203

9010516071

main90105-16071

91611B0812

main91611-B0812

23 parts on this diagram · 1 diagram in section
