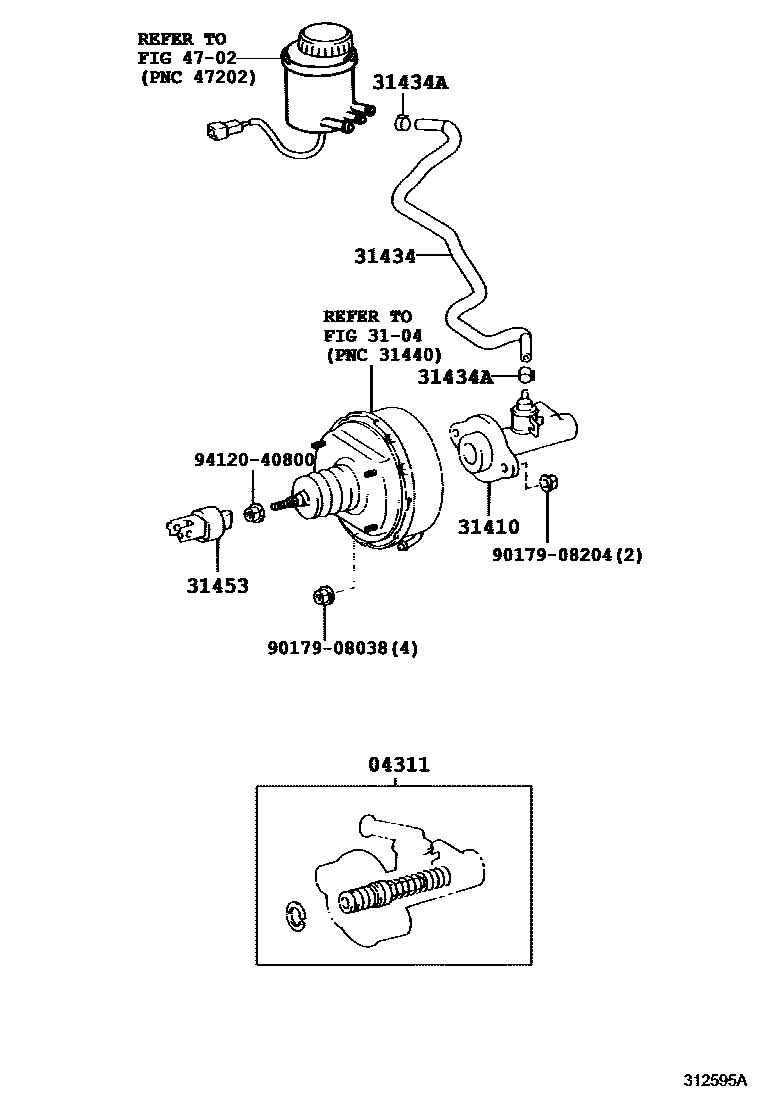

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-36230iXZU282201203

3104CLUTCH BOOSTER

→ Go to FIG 31-04

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36102iXZU282201203-201212

31434TUBE, CLUTCH RESERVOIR

main31434-37200iXZU282201203-201212

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-51300×2iXZU282201203

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-36031iXZU282201203

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9017908204

main90179-08204

9412040800

main94120-40800

10 parts on this diagram · 1 diagram in section
