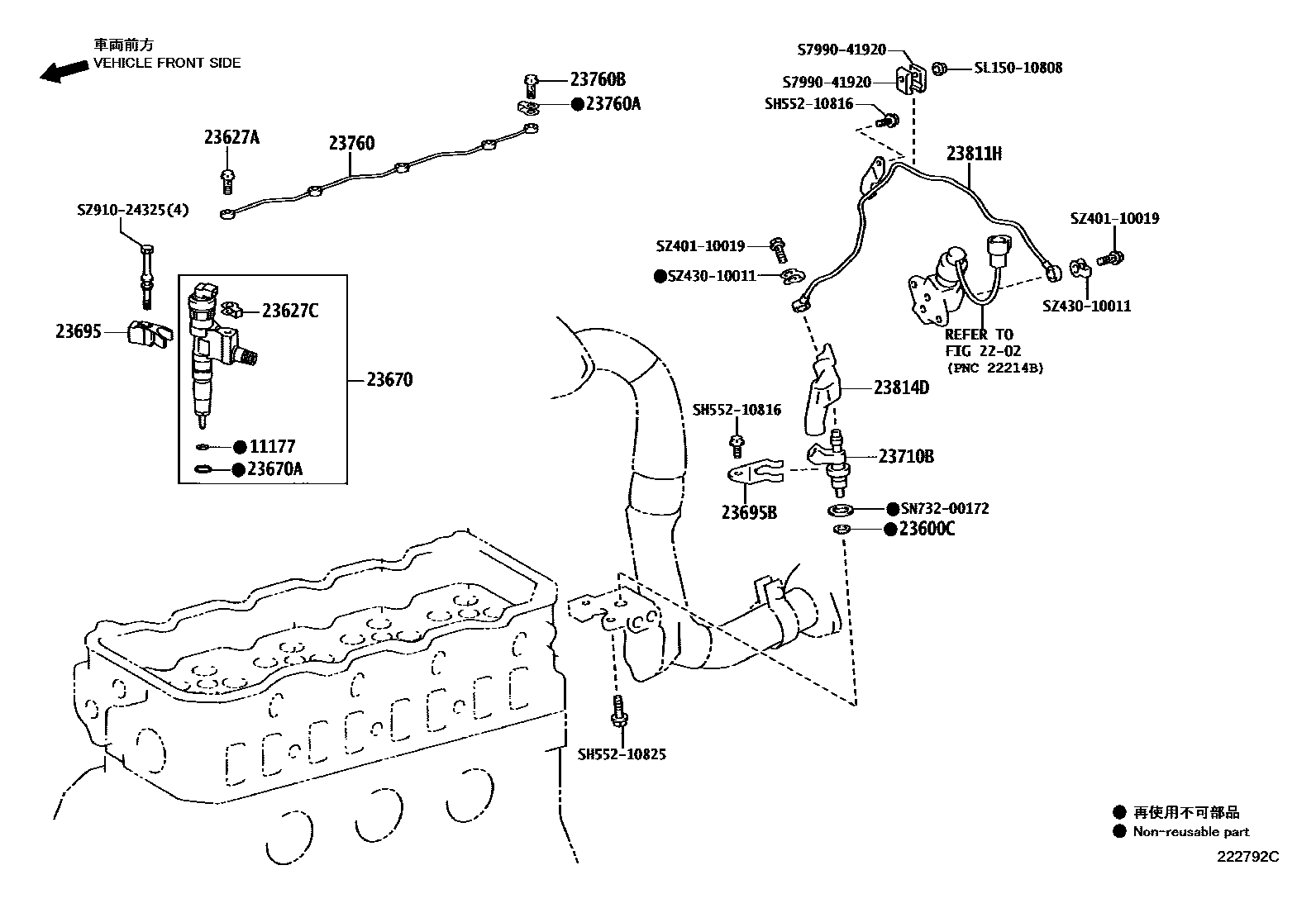

INJECTION NOZZLE

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN04C..XZU282201203

2202

23600CGASKET(FOR HOLDER & NOZZLE SET)

mainS236611340iN04C..XZU282201203

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XZU282201210

mainS228351570iN04C..XZU282201203-201210

23627CWASHER(FOR NOZZLE)

mainSZ20908024iN04C..XZU282201203

23670INJECTOR ASSY

main23670-E9260iN04C..XZU282201203

sub23670-E9261

23670ARING, O(FOR INJECTOR ASSY)

mainSZ30119001iN04C..XZU282201203

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140iN04C..XZU282201203

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-E0080iN04C..XZU282201203

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-E0020iN04C..XZU282201203

23760PIPE ASSY, NOZZLE LEAKAGE

mainS230812630iN04C..XZU282201203

23760AGASKET

mainSZ20908024iN04C..XZU282201203

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN04C..XZU282201210-201212

mainSZ40108003iN04C..XZU282201203-201210

sub21811-E0060

23811HPIPE, FUEL, NO.1

main23801-E0311iN04C..XZU282201203

23814DPIPE, FUEL DELIVERY

main23814-E0620iN04C..XZU282201203

sub23814-E0621

S799041920CLIP SUB-ASSY

mainS7990-41920

SH55210816

mainSH552-10816

SH55210825

mainSH552-10825

SL15010808

mainSL150-10808

SN73200172

mainSN732-00172

SZ40110019

mainSZ401-10019

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ91024325

mainSZ910-24325

23 parts on this diagram · 1 diagram in section
