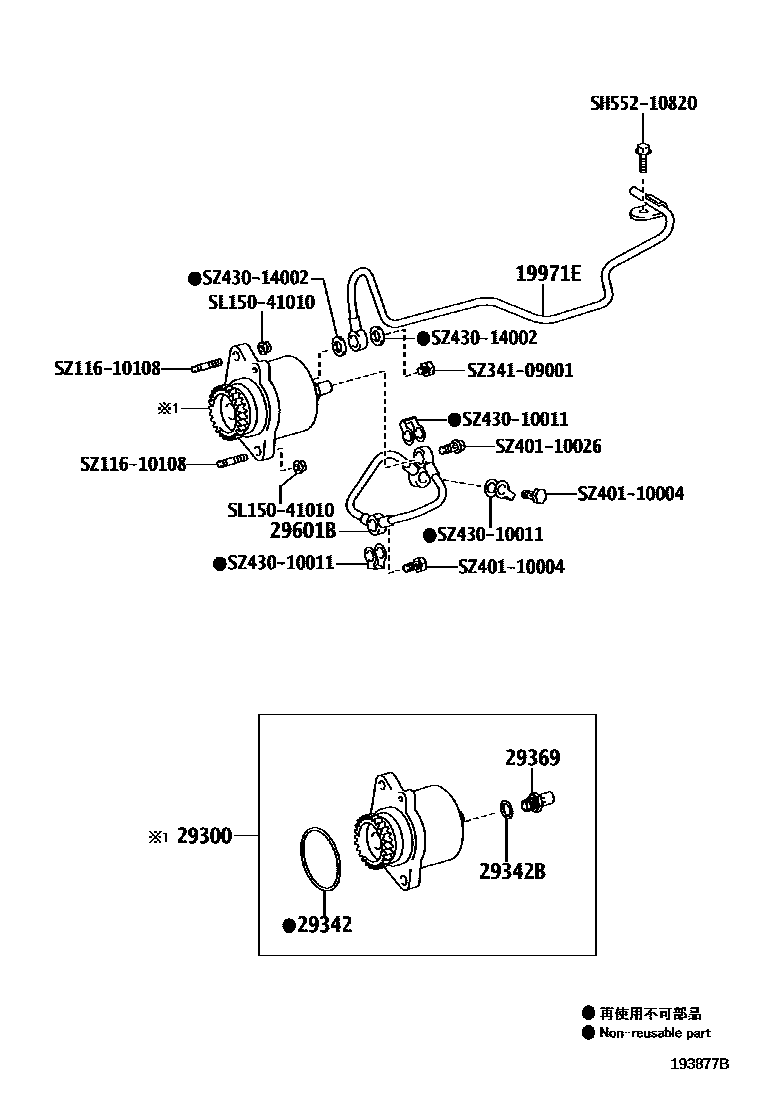

VACUUM PUMP

19971EPIPE, VACUUM

main87207-E0123iN04C..XZU282201203-201212

29300PUMP ASSY, VACUUM

main29300-E0100iN04C..XZU282201203

29342PACKING, VACUUM PUMP

main29343-EV020iN04C..XZU282201203-201212

29342BRING, O

main29342-EV010iN04C..XZU282201203-201212

29369VALVE SUB-ASSY, CHECK

main29369-EV020iN04C..XZU282201203-201212

29601BPIPE SUB-ASSY, OIL(FOR VACUUM PUMP)

main29601-E0320iN04C..XZU282201203

SH55210820

mainSH552-10820

SL15041010

mainSL150-41010

SZ11610108

mainSZ116-10108

SZ34109001

mainSZ341-09001

SZ40110004

mainSZ401-10004

SZ40110026

mainSZ401-10026

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002

14 parts on this diagram · 1 diagram in section
