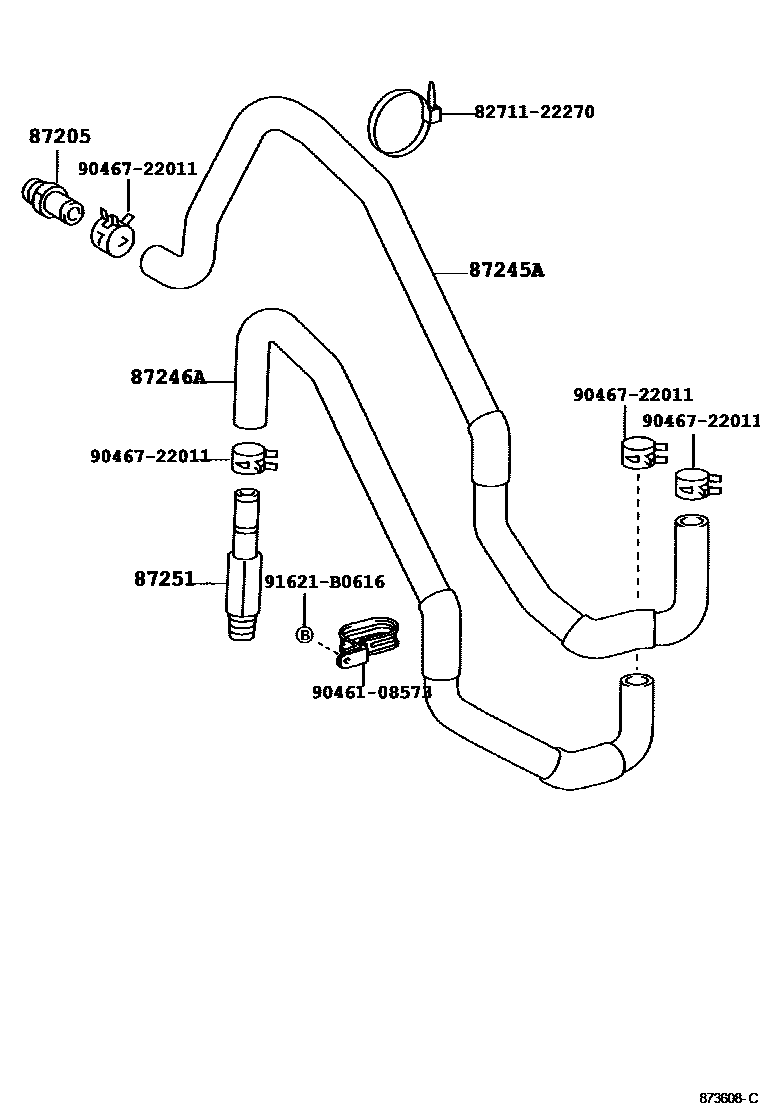

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iBU28#..DSL199908-200406

87245HOSE, HEATER WATER, INLET

main87245-3V330iLY228,270200108-200407

main87245-3V340iLY228,270200108-200407

87245AHOSE, HEATER WATER, INLET A

main87245-37B90iXZU28#..DCR200406-200610

main87245-37D20iXKU280200610

main87245-3V280iBU28#..DSL199908-200406

main87245-3V320iRZU280,XZU281..N..LPG200001-200610

87246HOSE, HEATER WATER, OUTLET

main87245-3V130iLY228,270200108-200407

main87245-3V220iLY228,270200108-200407

87246AHOSE, HEATER WATER, OUTLET A

main87245-37C00iXZU28#..DCR200406-200610

main87245-37D30iXKU280200610

main87245-3V270iBU28#..DSL199908-200406

main87245-3V290iRZU280,XZU281..N..LPG200001-200610

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-95403iBU28#..DSL199908-200406

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9046108573

main90461-08573

9046722011

main90467-22011

91621B0616

main91621-B0616

10 parts on this diagram · 4 diagrams in section
