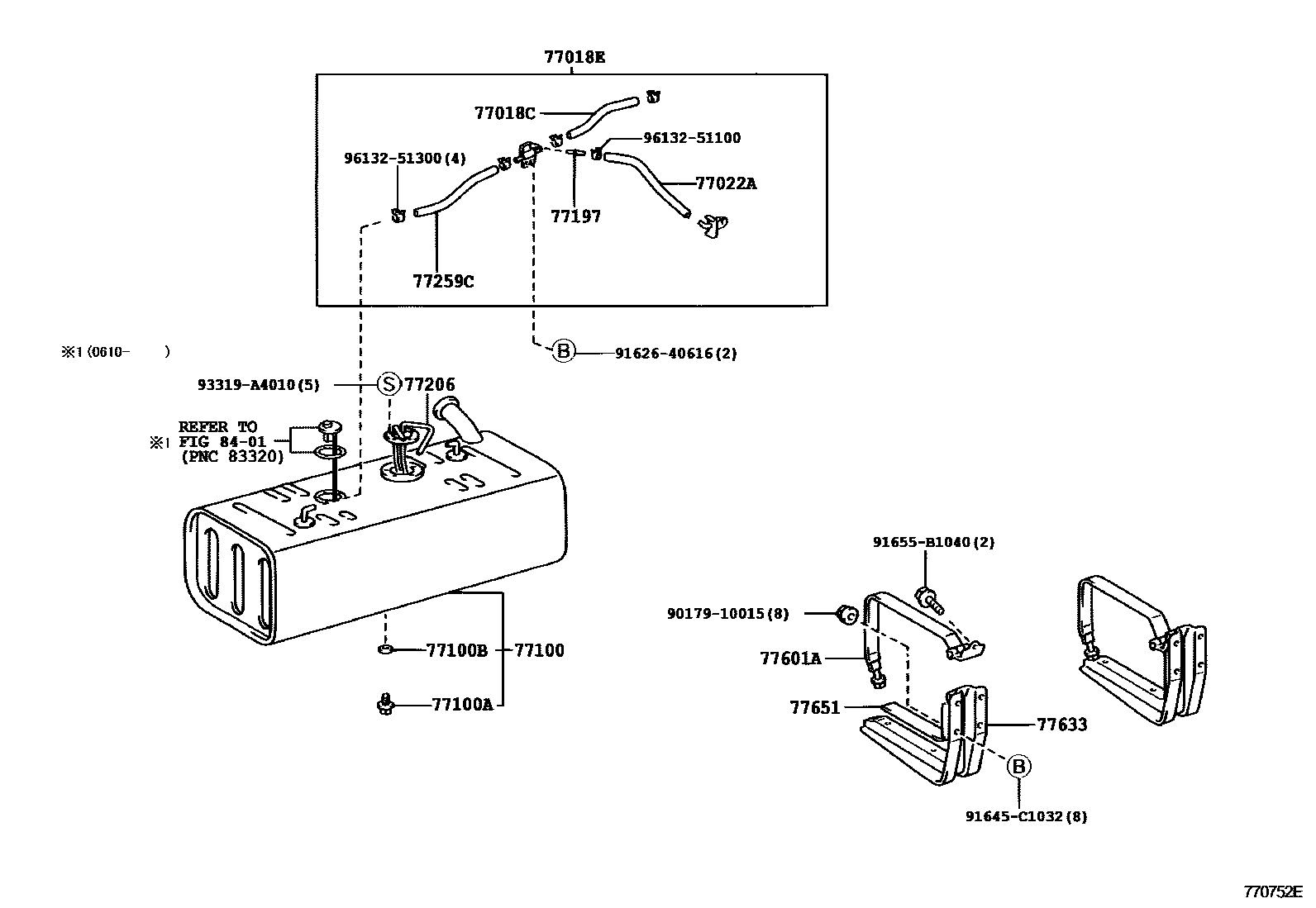

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ����� 0004 1����� ����� 0005 1����� ����� 0006 1����� ����� 0007 1LPG TANK & TUBE

77018CHOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)

main95333-08030iBU28#..DSL199908-200610

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-37120iXKU280199908-200610

main77244-25030iLY228,270200108-200407

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iBU28#..DSL199908-200610

sub95338-06030

main95333-06030iLY228,270200108-200407

sub95338-06030

77100TANK ASSY, FUEL

main77001-36821iXZU28#..DCR199908-200603

sub77001-36822

main77001-36822iXZU28#..DCR200604-200610

main77001-37540iXKU280200610

main77100-37180iRZU280..N;BU280,XZU281..LPG200001-200503

sub77100-37181

main77100-37181iRZU280,XZU281..LPG200504-200610

main77100-37320iLY228,270200108-200407

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU28#..DCR199908-200610

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU28#..DSL199908-200610

77197ORIFICE, FUEL VAPOR

main90977-02001iBU28#..DSL199908-200610

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36340iBU28#..DSL199908-200405

main77017-37060iXZU28#..DCR200406-200610

77259CHOSE, FUEL

main77259-60380iXZU28#..DCR200512-200610

main95333-08030iXZU28#..DCR199908-200512

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25120iLY228,270200108-200407

main77601-37010iXZU28#..DCR199908-200610

77633STAY, FUEL TANK

main77501-25160iLY228,270200108-200407

main77502-37140iLY228,270200108-200407

main77633-37140iXKU280199908-200610

77651PACKING, FUEL TANK BRACKET

main77651-36110iBU28#..DSL199908-200610

main77651-36120iBU280..LPG200001-200610

8401

9017910015

main90179-10015

9162640616

main91626-40616

91645C1032

main91645-C1032

91655B1040

main91655-B1040

93319A4010

main93319-A4010

9613251100

main96132-51100

9613251300

main96132-51300

20 parts on this diagram · 7 diagrams in section
