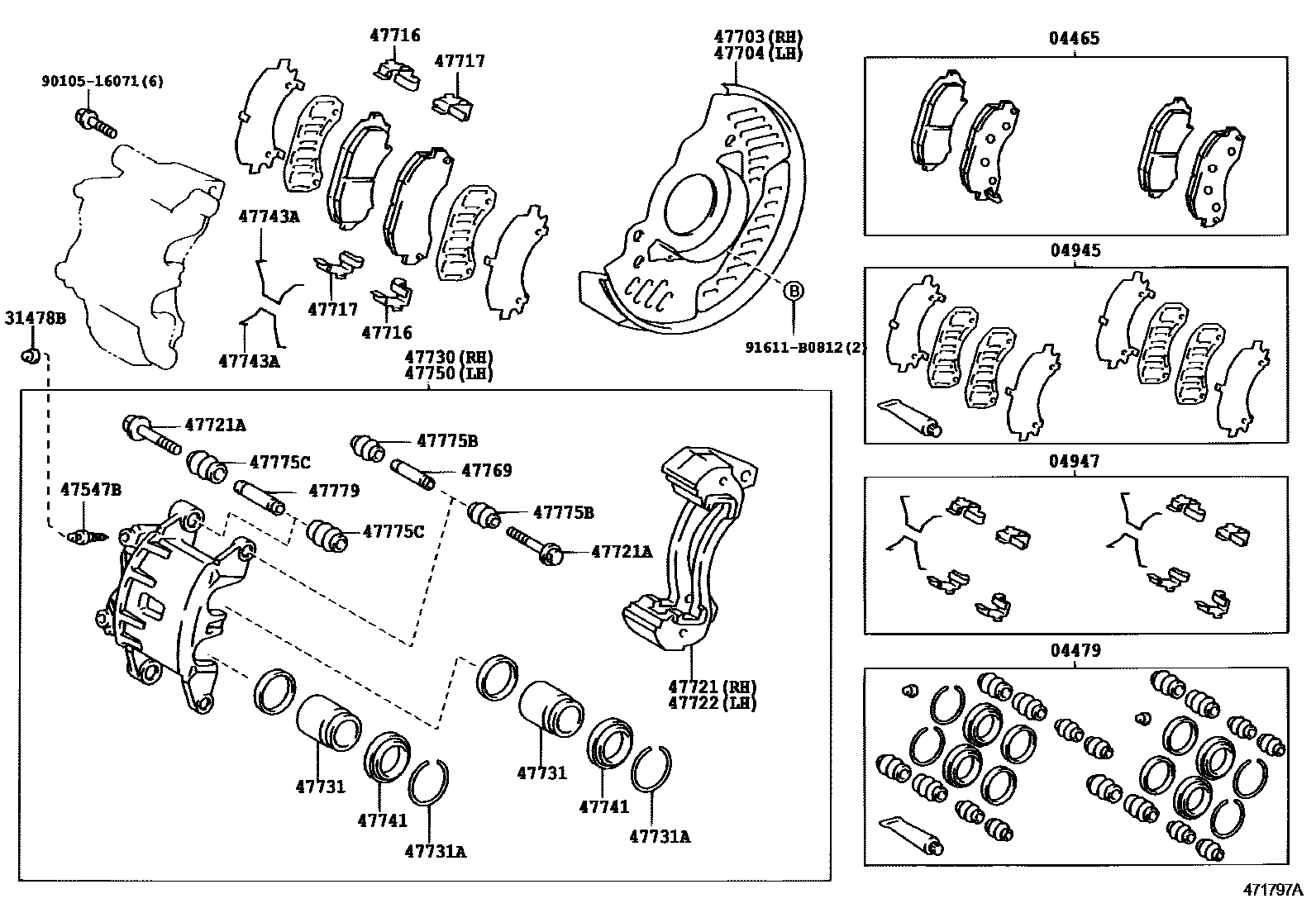

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-25040iLY228,270200108-200407

main04465-37050iRZU280,XZU28#..N200306-200610

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26030iLY228,270200108-200407

main04479-37010iBU280..LPG199908-200306

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-26100iLY228,270200108-200407

main04945-37020iXKU280200610

04947FITTING KIT, DISC BRAKE, FRONT

main04947-25020iLY228,270200108-200407

main04947-36020iRZU280..D;BU28#..DSL199908-200406

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLY228,270;RZU280..N;BU280,XZU28#..DCR,LPG199908-200610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBU280..LPG199908-200306

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXKU280200610-201109

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iRZU280..D;BU28#..DSL199908-200405

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26050×4iLY228,270200108-200407

main47716-36020×4iRZU280..D;BU28#..DSL199908-200405

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26020×4iLY228,270200108-200407

main47717-36020×4iXKU280200610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25030iLY228,270200108-200407

main47721-37020iRZU280..D;BU28#..DSL199908-200405

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08B87×4iBU280..LPG199908-200306

main90119-10014×2iLY228,270200108-200407

main90119-10249×2iLY228,270200108-200407

main90119-12256×4iRZU280..D;BU28#..DSL199908-200406

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-25030iLY228,270200108-200407

main47722-37010iBU280..LPG200001-200306

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25080iLY228,270200108-200407

main47730-37020iBU280..LPG199908-200306

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iLY228,270200108-200407

main47731-37010×4iRZU280..D;BU28#..DSL199908-200406

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iXKU280200610

main90522-76001×2iLY228,270200108-200407

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-37010×4iBU280..LPG199908-200306

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iRZU280,XZU28#..N199908-200610

main47743-40020×4iLY228,270200108-200407

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25080iLY228,270200108-200407

main47750-37020iRZU280,XZU28#..N199908-200610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iBU280..LPG199908-200306

main47769-40010×2iLY228,270200108-200407

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26010×8iLY228,270200108-200407

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iBU280..LPG199908-200306

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iBU280..LPG199908-200306

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iBU280..LPG199908-200306

main47779-40010×2iLY228,270200108-200407

9010516071

main90105-16071

91611B0812

main91611-B0812

26 parts on this diagram · 2 diagrams in section
