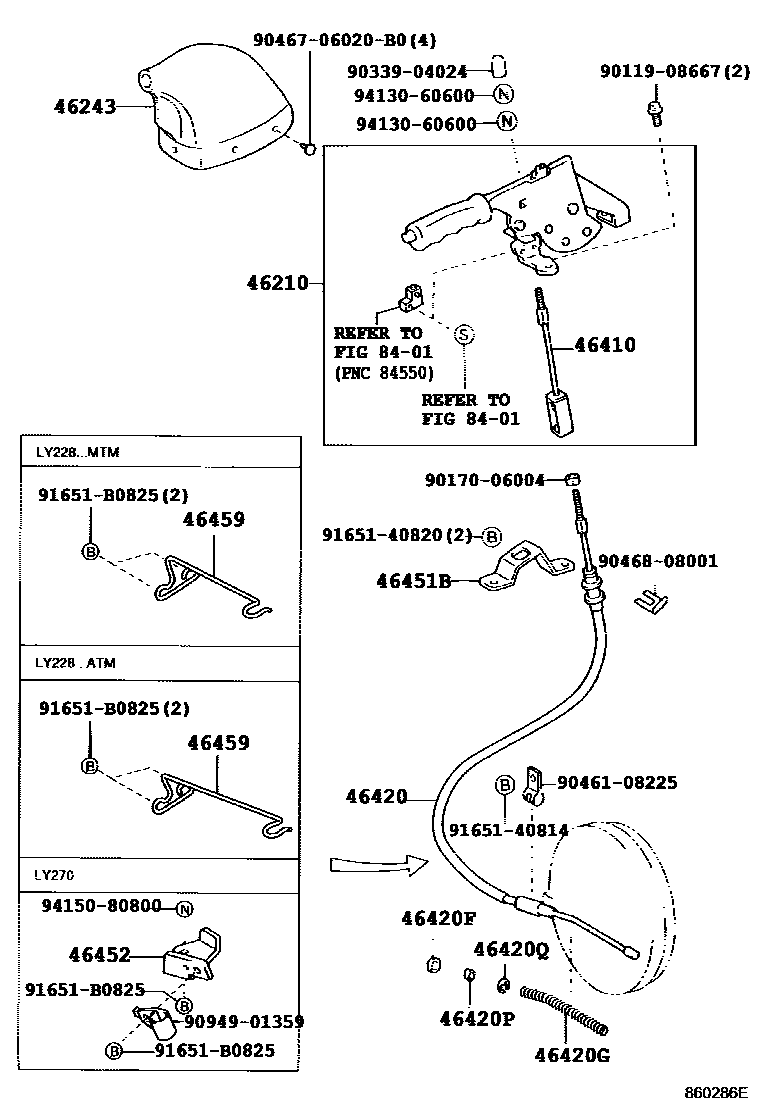

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1

46210LEVER ASSY, PARKING BRAKE

main46210-37080-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

BLUISH GRAY,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-37010iBU28#,LY228,270,RZU280,XZU28#199908-201109

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-37050iBU28#,LY228,270,RZU280,XZU28#199908-201109

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37301iBU28#,RZU280199908-200406

main46420-37350iLY228..MTM200108-200407

main46420-37360iLY228..ATM200108-200407

main46420-37370iLY270200108-200407

main46420-37420iRZU280,XZU28#200406-200610

main46420-37720iXKU280200610-201109

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBU28#,LY228,270,RZU280,XZU28#199908-201109

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXKU280200406-201109

main90501-14164iRZU280..N199908-200407

46420PSPACER, PARKING BRAKE

main90560-08002iRZU280,XZU28#200406-201109

main90560-09045iRZU280..N199908-200407

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBU28#,LY228,270,RZU280,XZU28#199908-201109

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-37050iBU28#,LY228,270,RZU280,XZU28#199908-201109

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-37120iLY270200108-200407

46459GUIDE, CABLE

main46459-37010iLY228..MTM200108-200407

main46459-37020iLY228..ATM200108-200407

8401

9011908667

main90119-08667

9017006004

main90170-06004

9033904024

main90339-04024

9046108225

main90461-08225

9046706020B0

main90467-06020B0

9046808001

main90468-08001

9094901359

main90949-01359

9165140814

main91651-40814

9165140820

main91651-40820

91651B0825

main91651-B0825

9413060600

main94130-60600

9415080800

main94150-80800

24 parts on this diagram · 3 diagrams in section
