Toyota QUICK DELI/URBAN SUP721 — CLUTCH MASTER CYLINDER

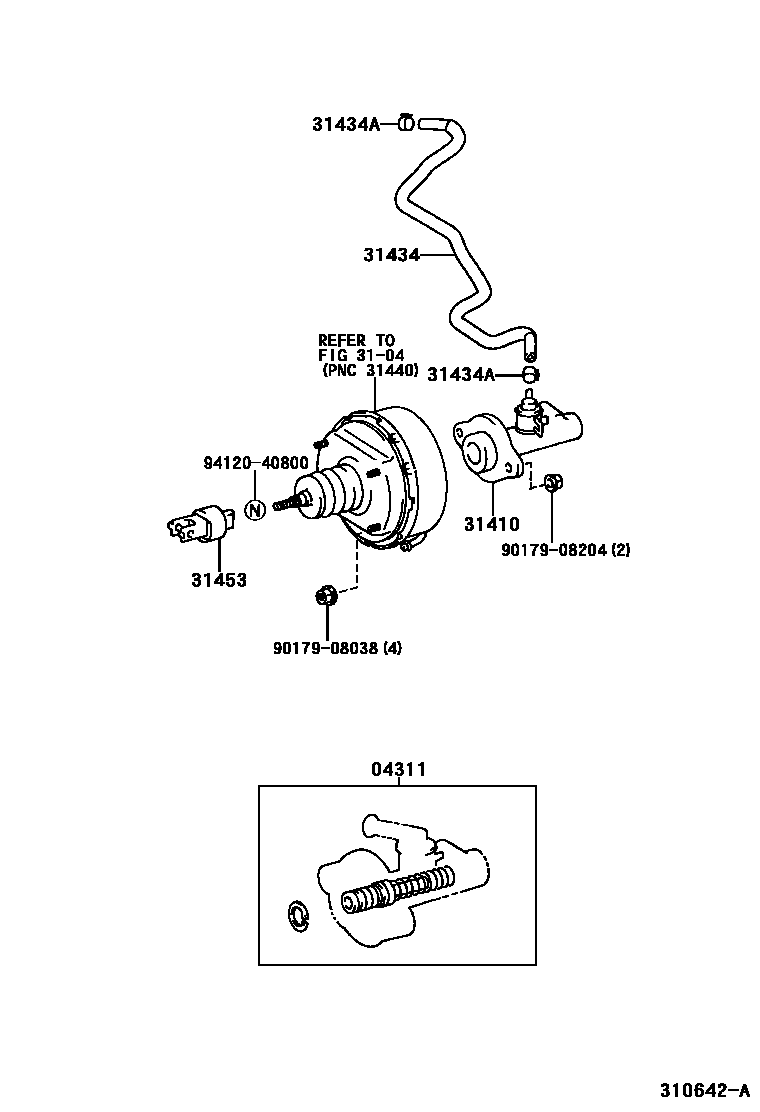

Parts diagram

04311CYLINDER KIT, CLUTCH MASTER

3104CLUTCH BOOSTER

→ Go to FIG 31-04

31410CYLINDER ASSY, CLUTCH MASTER

31434TUBE, CLUTCH RESERVOIR

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

9017908038

9017908204

9412040800

9 parts on this diagram · 1 diagram in section

CLUTCH MASTER CYLINDER for Toyota QUICK DELI/URBAN SUP721

This section contains 9 genuine Toyota parts for the CLUTCH MASTER CYLINDER system of the Toyota QUICK DELI/URBAN SUP721. Key components include: CYLINDER KIT, CLUTCH MASTER, CLUTCH BOOSTER, CYLINDER ASSY, CLUTCH MASTER, TUBE, CLUTCH RESERVOIR, CLIP(FOR CLUTCH RESERVOIR TUBE).
