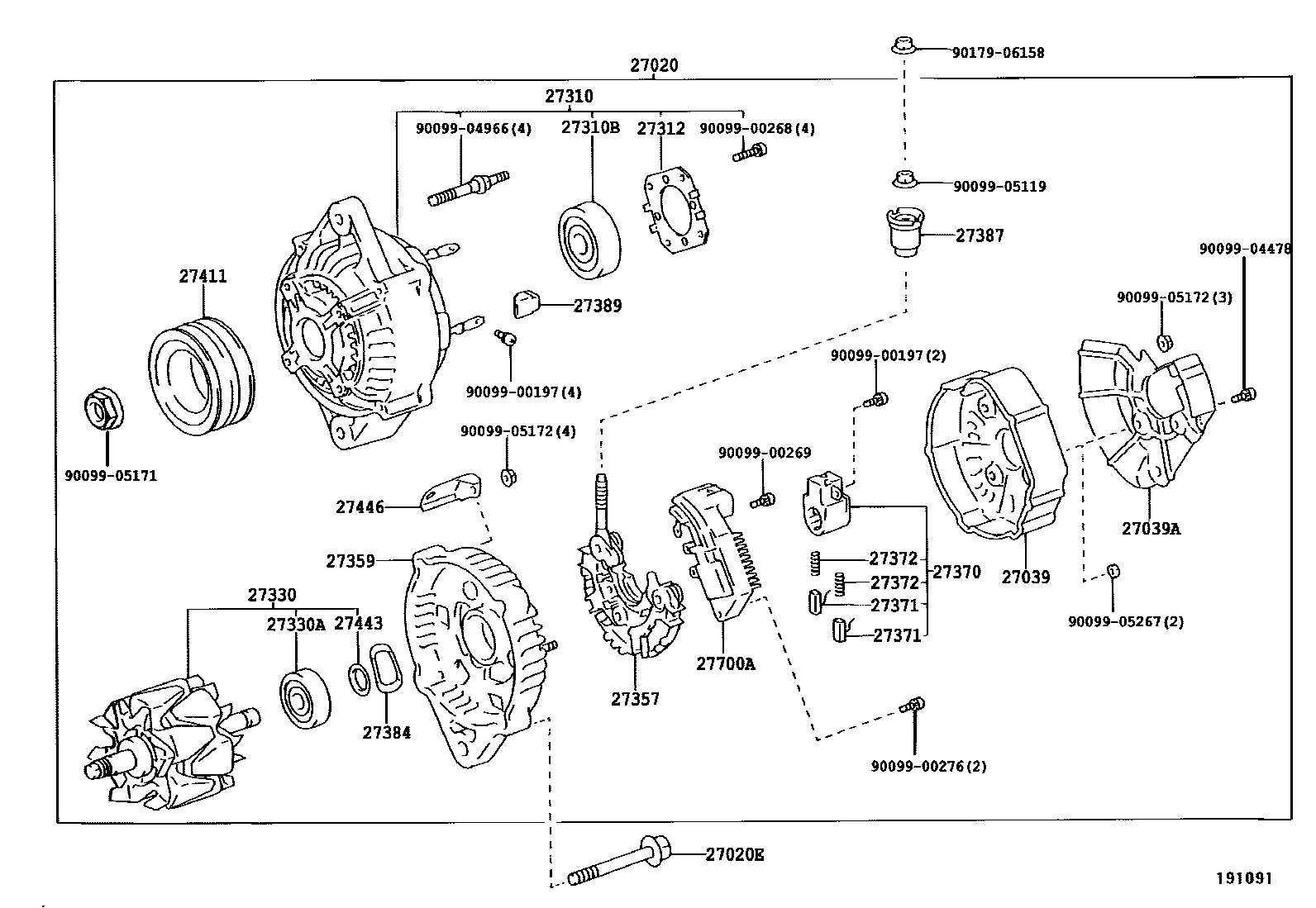

ALTERNATOR

Parts diagram

27020ALTERNATOR ASSY

main27060-54340i200108-200407

main27060-54350i200108-200407

main27060-58290i199908-200406

main27060-58300i199908-200206

main27060-58410i200206-200406

main27060-75260i200001-200610

main27060-78110i200406-200610

main27060-78150i200610-201010

main27060-78200i201010

27020EBOLT(FOR ALTERNATOR)

main90031-05093i200406-200610

main90105-10221i200001-200610

main90105-10287i200108-200407

main90148-10001i199908-200406

27039COVER, ALTERNATOR REAR END

main27039-16380i199908-200406

24V 30A

main27039-17230i200104-200206

24V 50A

main27039-50090i199908-200406

24V 60A

main27039-55080i200001-200104

main27039-70470i200108-200407

12V 70A,90A

27039ACOVER, ALTERNATOR REAR END, NO.2

main27039-58330i199908-200406

24V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54520i200108-200407

12V 70A,90A

main27310-54650i200108-200407

main27310-58040i199908-200406

24V 30A

main27310-58080i199908-200206

24V 50A

main27310-58430i200206-200406

24V 60A

main27310-78200i201010

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i201010

main90099-10165i200108-200407

main90099-10178i199908-200406

24V 30A

main90099-10192i200206-200406

24V 60A

27312PLATE, RETAINER

main27312-42010i200206-200406

24V 60A

main27312-64130i200108-200407

main27312-70200i199908-200406

24V 30A

main27312-72100i201010

27330ROTOR ASSY, ALTERNATOR

main27330-16390i200007-200610

main27330-17240i200206-200406

24V 60A

main27330-33090i201010

main27330-58040i199908-200406

24V 30A

main27330-58050i199908-200206

24V 50A

main27330-64190i200108-200407

12V 70A

main27330-64300i200108-200407

12V 90A

main27330-76030i200001-200007

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i199908-200407

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i200108-200407

12V 90A

main27357-16310i200001-200610

main27357-16380i199908-200406

24V 30A

main27357-17080i200206-200406

main27357-55080i200108-200407

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16182i199908-200406

24V 30A

main27359-54420i200108-200407

12V 70A,90A

main27359-58050i199908-200406

24V 50A, 60A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58320i199908-200406

24V 30A

main27370-58460i200406-200610

main27370-75060i200001-200610

27371BRUSH, ALTERNATOR

main27371-70300i199908-200405

27372SPRING, ALTERNATOR BRUSH

main27372-87501i199908-200012

27384WASHER

main27384-16380i199908-200406

24V 30A

main27384-50030i200108-200407

27387INSULATOR, TERMINAL

main27387-20130i200406-200610

main27387-42021i200108-200407

main27387-42021i200206-200406

24V 60A

main27387-70171i199908-200406

27389INSULATOR, TERMINAL

main27389-42010i200108-200407

main27389-63020i199908-200406

24V 30A

27411PULLEY, ALTERNATOR

main27411-42030i200001-200610

12V 90A

main27411-58220i199908-200406

24V 30A

main27411-58330i200206-200406

24V 50A

main27411-89108i200610

main27411-89109i200406-200610

27443COVER, ALTERNATOR BEARING

main27443-63020i199908-200407

27446CLIP, ALTERNATOR CORD

main27446-62012i199908-200406

27700AREGULATOR ASSY, GENERATOR

main27700-50030i200108-200407

12V 70A

main27700-58060i199908-200406

main27700-62030i200108-200407

12V 90A

main27700-75020i200001-200610

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905267

main90099-05267

9017906158

main90179-06158

32 parts on this diagram · 8 diagrams in section
