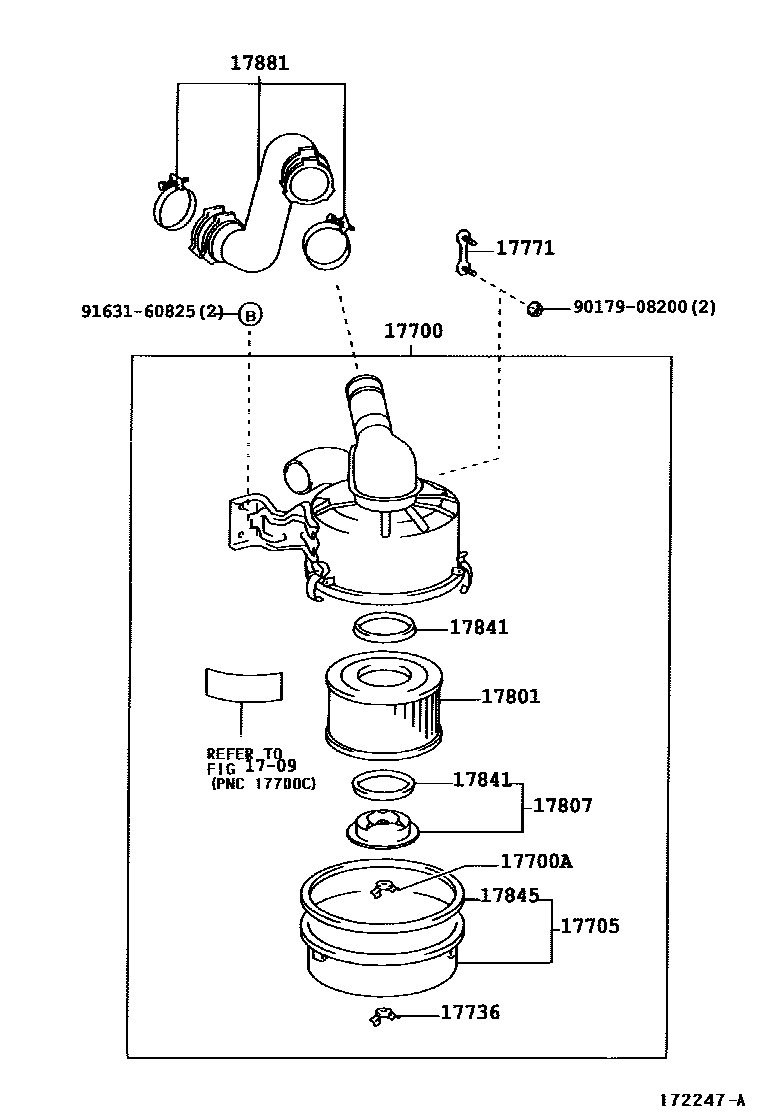

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

1709

17700CLEANER ASSY, AIR

main17700-58730i4B..BU28#199908-200406

main17700-5B230i5L..LY228,270200108-200407

main17700-75340i3RZFPE..RZU280..D200001-200610

main17700-78250iN04C..XZU28#200406-200610

main17700-78320iN04C..XKU280200610

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i4B,3RZFPE..BU28#199908-200610

17705CAP SUB-ASSY, AIR CLEANER

main17705-54490i5L..LY228,270200108-200407

main17705-58320i3RZFPE..RZU280..D199908-200610

17736NUT, AIR CLEANER CASE

main90175-06003i3RZFPE..RZU280..N199908-200610

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54130i5L..LY228,270200108-200407

main17771-56020i3RZFPE..RZU280..D199908-200610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56050i5L..LY228,270200108-200407

main17801-66030iN04C..XKU280200610

main17801-68020i3RZFPE..RZU280..N199908-200610

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54040i5L..LY228,270200108-200407

main17807-58020iN04C..XKU280199908-200610

17841GASKET, FILTER ELEMENT

main17841-44030i5L..LY228,270200108-200407

main17841-54020i5L..LY228,270200108-200407

main17841-68010i3RZFPE..RZU280..D199908-200610

17845GASKET, AIR CLEANER CAP

main17845-54030i5L..LY228,270200108-200407

main17845-58010i3RZFPE..RZU280..D199908-200610

17881HOSE, AIR CLEANER, NO.1

main17881-54530i5L..LY228,270200108-200407

main17881-58420i4B..BU28#199908-200406

main17881-75150i3RZFPE..RZU280..D200001-200610

main17881-78070iN04C..XZU28#200406-200610

main17881-78090iN04C..XKU280200610

9017908200

main90179-08200

9163160825

main91631-60825

13 parts on this diagram · 6 diagrams in section
