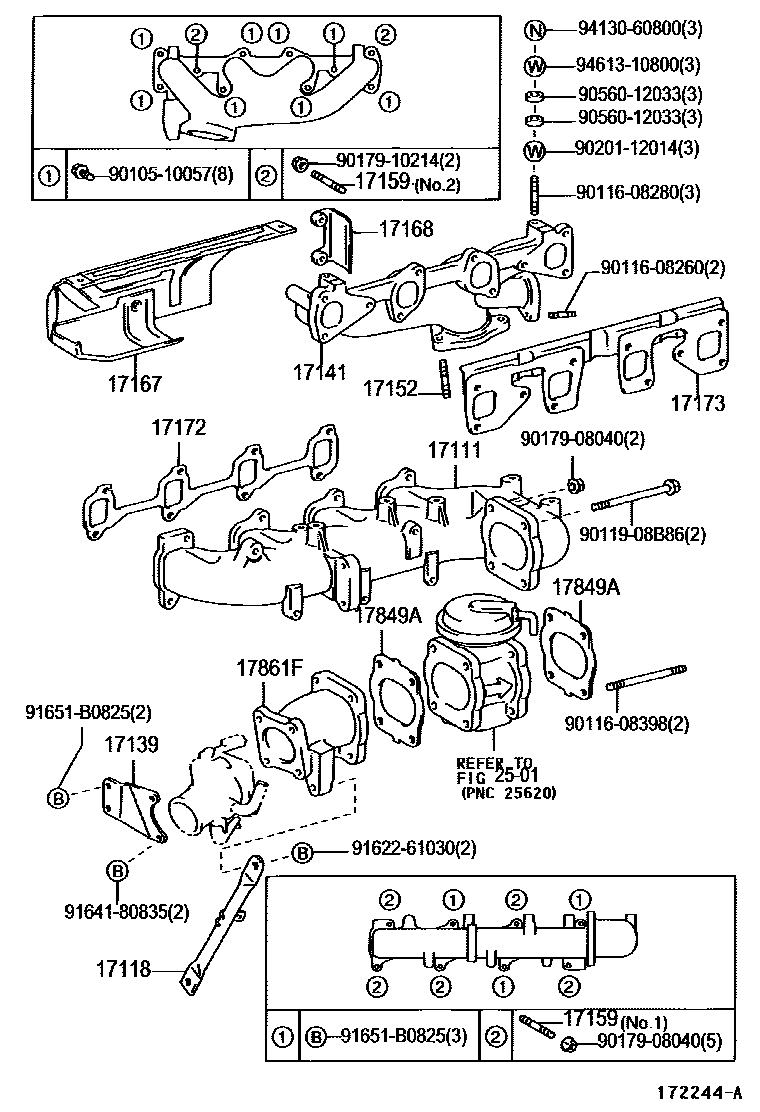

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

17111MANIFOLD, INTAKE

main17101-54110i5L..LY228,270200108-200206

main17101-54111i5L..LY228,270200206

main17101-75050i3RZFPE..RZU280..D200001-200610

main17111-58050i4B..BU28#199908-200406

main17111-78050iN04C..XKU280200406-200610

sub17111-E0210

17118STAY, MANIFOLD

main17118-58040i4B..BU28#199908-200406

main17118-75030i3RZFPE..RZU280..D200001-200610

17139STAY, MANIFOLD, NO.2

main17139-58010i4B..BU28#199908-200406

17141MANIFOLD, EXHAUST

main17141-54111i5L..LY228,270200108

main17141-58060i4B..BU28#199908-200205

sub17141-58061

main17141-58061i4B..BU28#200205-200406

main17141-75061i3RZFPE..RZU280..D200001-200610

main17141-78081iN04C..XKU280200610

main17141-78150iN04C..XZU28#200406-200411

sub17141-78151

main17141-78151iN04C..XZU28#200411-200610

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16091iN04C..XKU280200610

main90116-10088i5L..LY228,270200108

main90116-10149i3RZFPE..XZU281200001-200610

main90126-10006i4B..BU28#199908-200406

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90031-16069iN04C..XZU28#200406-201203

main90031-16085iN04C..XZU28#200406-200610

main90116-08352i4B..BU28#199908-200406

main90116-10063i4B..BU28#199908-200406

main90116-10163i3RZFPE..RZU280..N200001-200610

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54110i5L..LY228,270200108

main17167-58070i4B..BU28#199908-200406

main17167-75050i3RZFPE..RZU280..D200001-200610

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58060i4B..BU28#199908-200406

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58020i4B..BU28#199908-200406

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i5L..LY228,270200108

main17173-56040i4B..BU28#199908-200406

main17173-75020i3RZFPE..RZU280..N200001-200610

main17173-78040iN04C..XKU280200406-201106

subS1710-41880

mainS171041880iN04C..XKU280201106

sub17173-78080

17849AGASKET, INTAKE AIR CONNECTOR

main17849-58020i4B..BU28#199908-200406

17861FCONNECTOR, INTAKE AIR

main17861-58050i4B..BU28#199908-200406

2501

9010510057

main90105-10057

9011608260

main90116-08260

9011608280

main90116-08280

9011608398

main90116-08398

9011908B86

main90119-08B86

9017908040

main90179-08040

9017910214

main90179-10214

9020112014

main90201-12014

9056012033

main90560-12033

9162261030

main91622-61030

9164180835

main91641-80835

91651B0825

main91651-B0825

9413060800

main94130-60800

9461310800

main94613-10800

27 parts on this diagram · 8 diagrams in section
