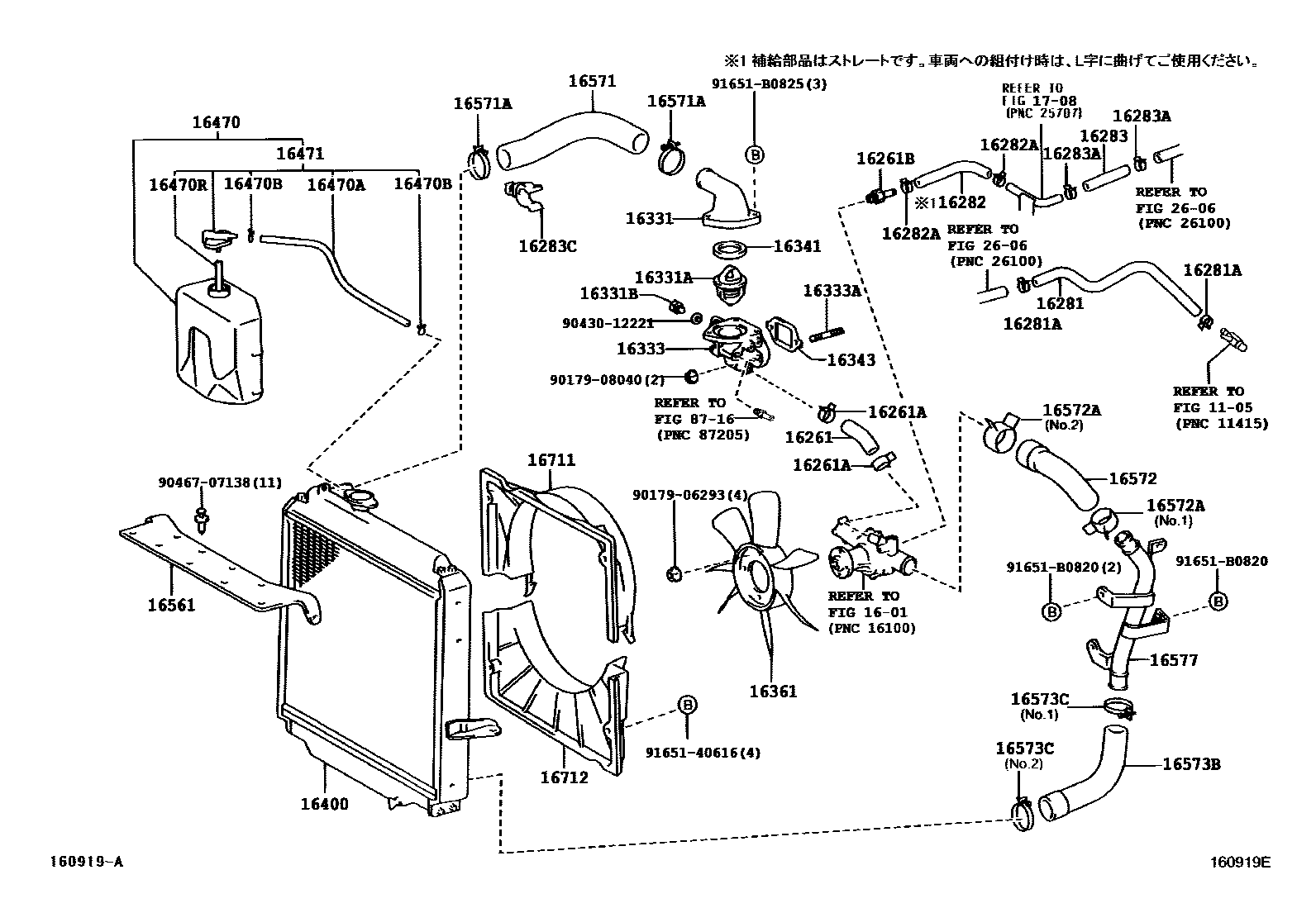

RADIATOR & WATER OUTLET
1105
1601
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261BUNION(FOR WATER BY-PASS HOSE)
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283HOSE, WATER BY-PASS, NO.6
sub16284-58040
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16331OUTLET, WATER
16331BPLUG(FOR WATER OUTLET)
16333ABOLT, STUD(FOR WATER OUTLET HOUSING)
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571HOSE, RADIATOR, INLET
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577PIPE, RADIATOR, NO.7
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1708
2606
8716
9017906293
main90179-06293
9017908040
main90179-08040
9043012221
main90430-12221
9046707138
main90467-07138
9165140616
main91651-40616
91651B0820
main91651-B0820
91651B0825
main91651-B0825
46 parts on this diagram · 13 diagrams in section
