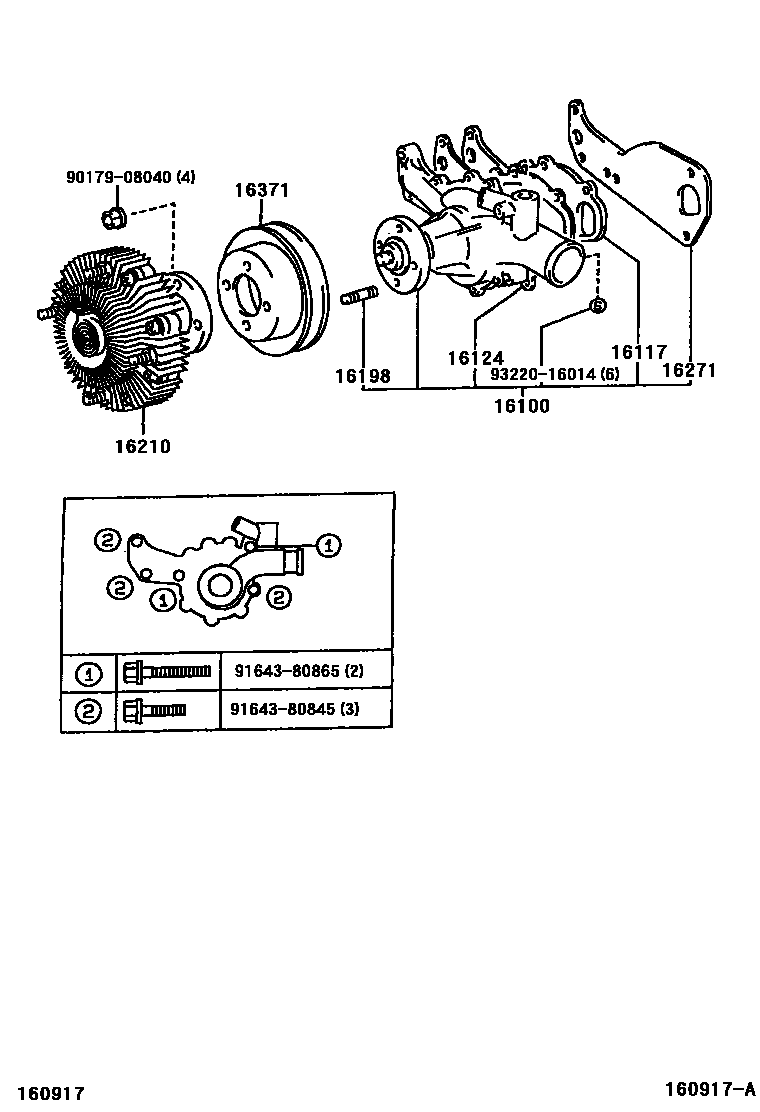

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-59187i4B..BU28#199908-200406

main16100-59257i5L..LY228,270200108-200407

main16100-78080iN04C..XZU28#200406-200511

main16100-78110iN04C..XZU28#200511-200610

main16100-78111iN04C..XKU280200903-200907

main16100-78112iN04C..XKU280200907-201011

main16100-78170iN04C..XKU280201011

main16100-79255i3RZFPE..BU280200001-200306

main16100-79445i3RZFPE..XZU281200406-200610

16117PLATE, WATER PUMP

main16117-58010i4B..BU28#199908-200406

16124GASKET, WATER PUMP COVER

main16124-58010i4B..BU28#199908-200406

main16124-75030i3RZFPE..BU280200001-200306

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170×4i4B..BU28#199908-200406

main92122-60818×4i3RZFPE..BU280200001-200306

main92122-80818×4i3RZFPE..XZU281200406-200610

16210COUPLING ASSY, FLUID

main16210-54220i5L..LY228,270200108-200407

main16210-58070i4B..BU28#199908-200406

main16210-75060i3RZFPE..RZU280..N200306

main16250-78110iN04C..XKU280200610-200805

main16250-78111iN04C..XKU280200805-201107

main16250-78150iN04C..XZU28#200406-200610

main16250-E0251iN04C..XKU280201107

16271GASKET, WATER PUMP

main16271-54030i5L..LY228,270200108-200407

main16271-58010i4B..BU28#199908-200406

16371PULLEY, FAN

main16308-78030iN04C..XZU28#200406-200610

main16371-05010i5L..LY228,270200304-200407

main16371-54030i5L..LY228,270200108-200304

main16371-58090i4B..BU28#199908-200406

main16371-75030i3RZFPE..RZU280..D200306-200406

mainS161051140iN04C..XKU280201106

9017908040

main90179-08040

9164380845

main91643-80845

9164380865

main91643-80865

9322016014

main93220-16014

11 parts on this diagram · 6 diagrams in section
